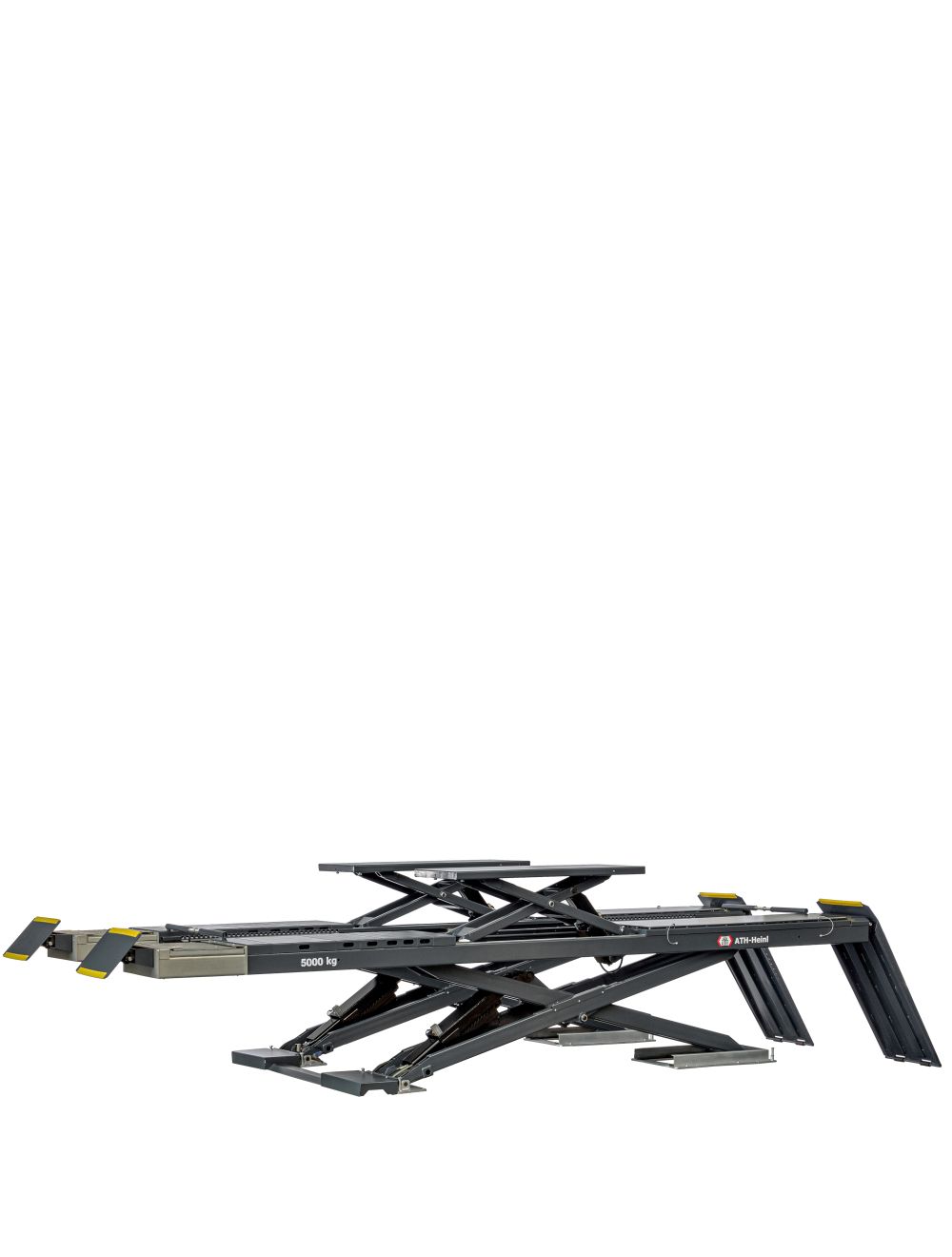

ATH Cross Lift 40 Plus OGA
€21,844.54
plus assembly and freight
€25,995.00
Availability:
Out of stock
SKU
631028
- High quality and robust scissor lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit with load-dependent lowering valve
- Suitable for floor-level installation and installation on the floor with the optional on ground kit
- With recesses for rotating plates at the front, pneumatically lockable oscillating plates at the rear, platform extension including joint play tester, wheel-free jack (load capacity: 4 t, lifting height: 450 mm), side rails for the optional axle jack, removable cross connections, 24V LED lighting including metal protection bar and switch
- Emergency lowering system for lowering in the event of a power failure, synchronization monitoring via safety light barrier
- Ideally suited for inspection, wheel alignment, repairs and test stations for headlamp and driver assistance systems

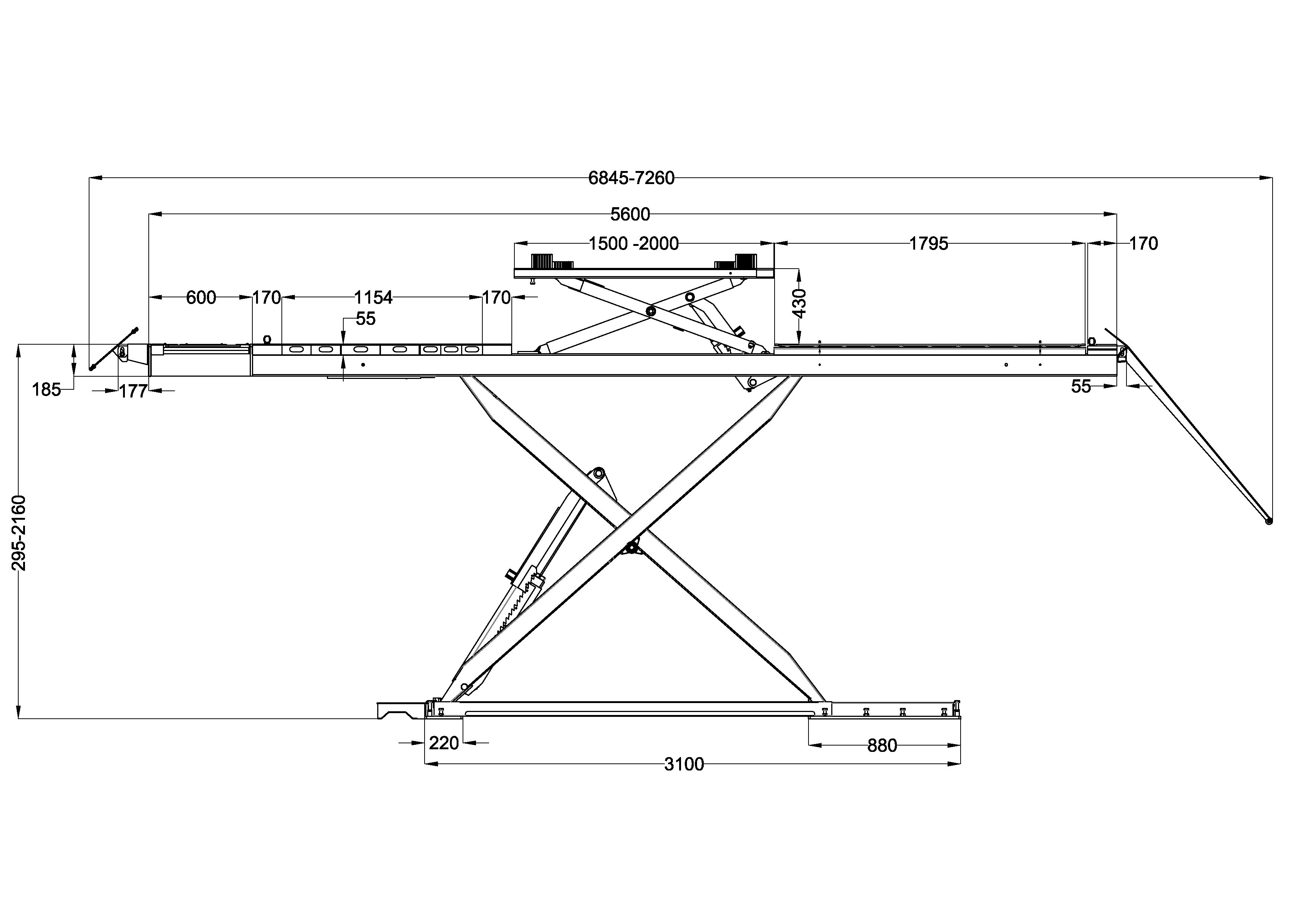

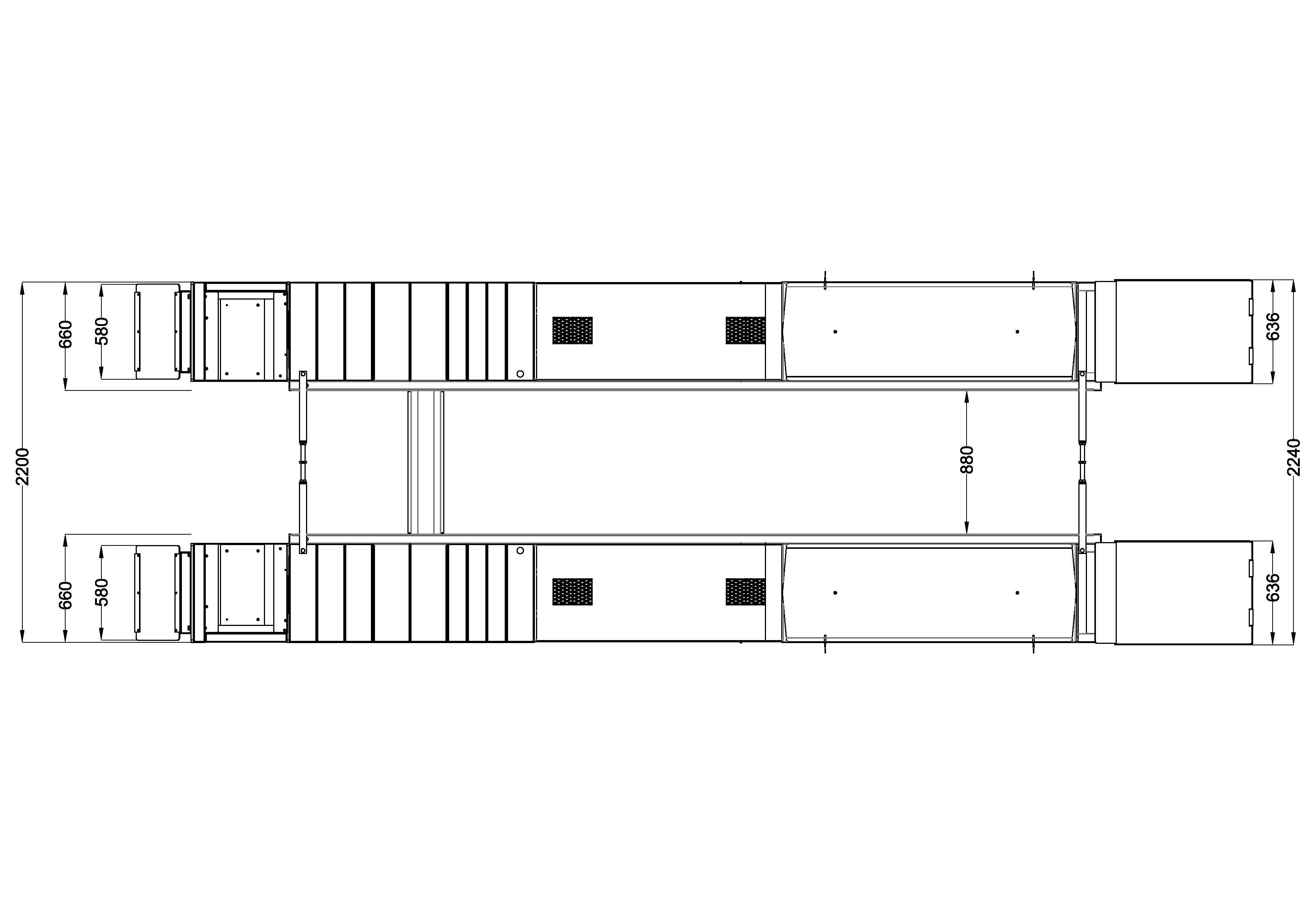

| Color | Anthrazitgrau / Schwarz |
|---|---|
| Rated load capacity | 4.000 kg |
| Lifting height max. | 2.160 mm |
| Drive-on-height | 295 mm |
| Total platform length | 4.830 mm |
| Total platform width | 600 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | ca. 70 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 6.100 x 3.000 x 200 mm |
