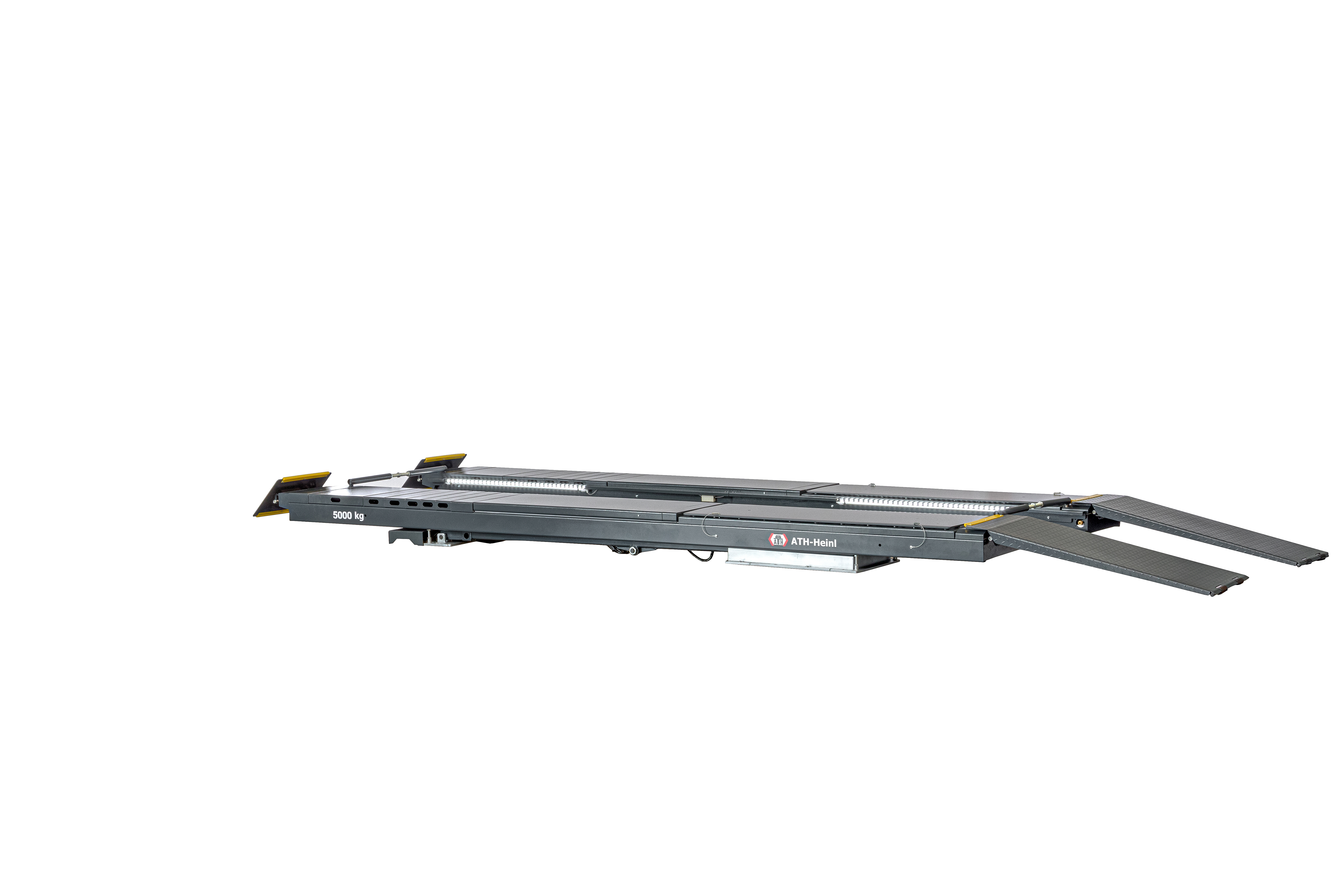

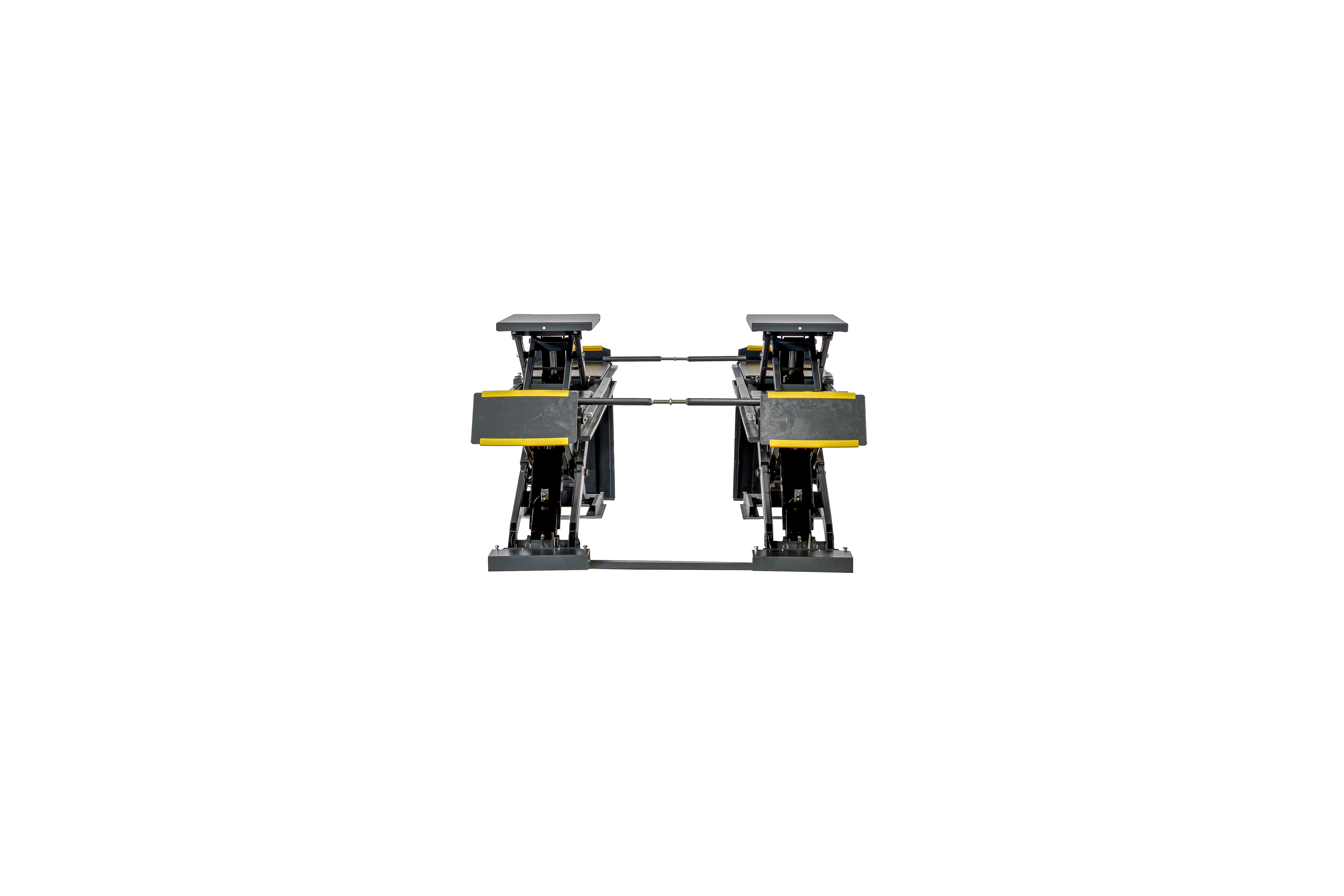

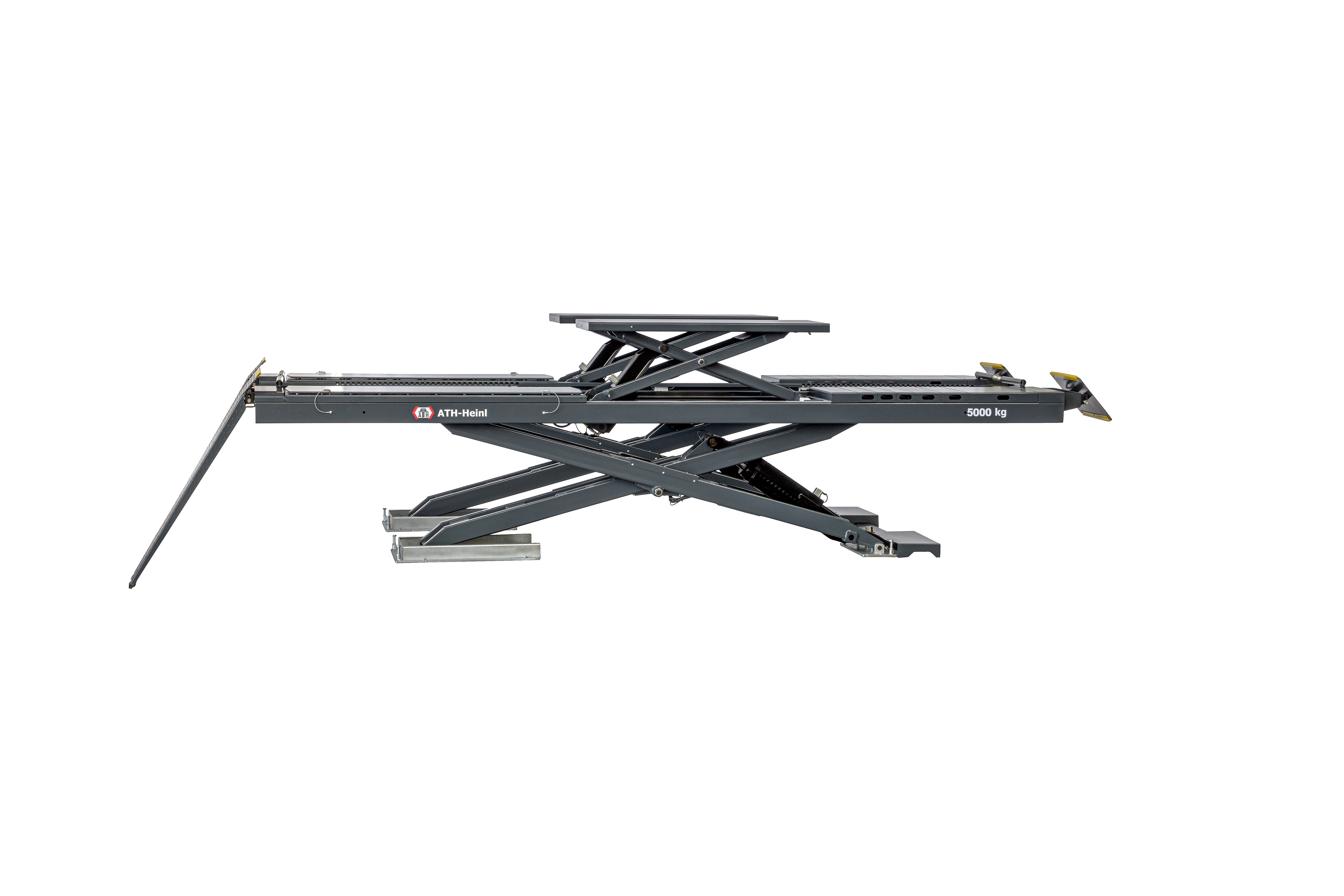

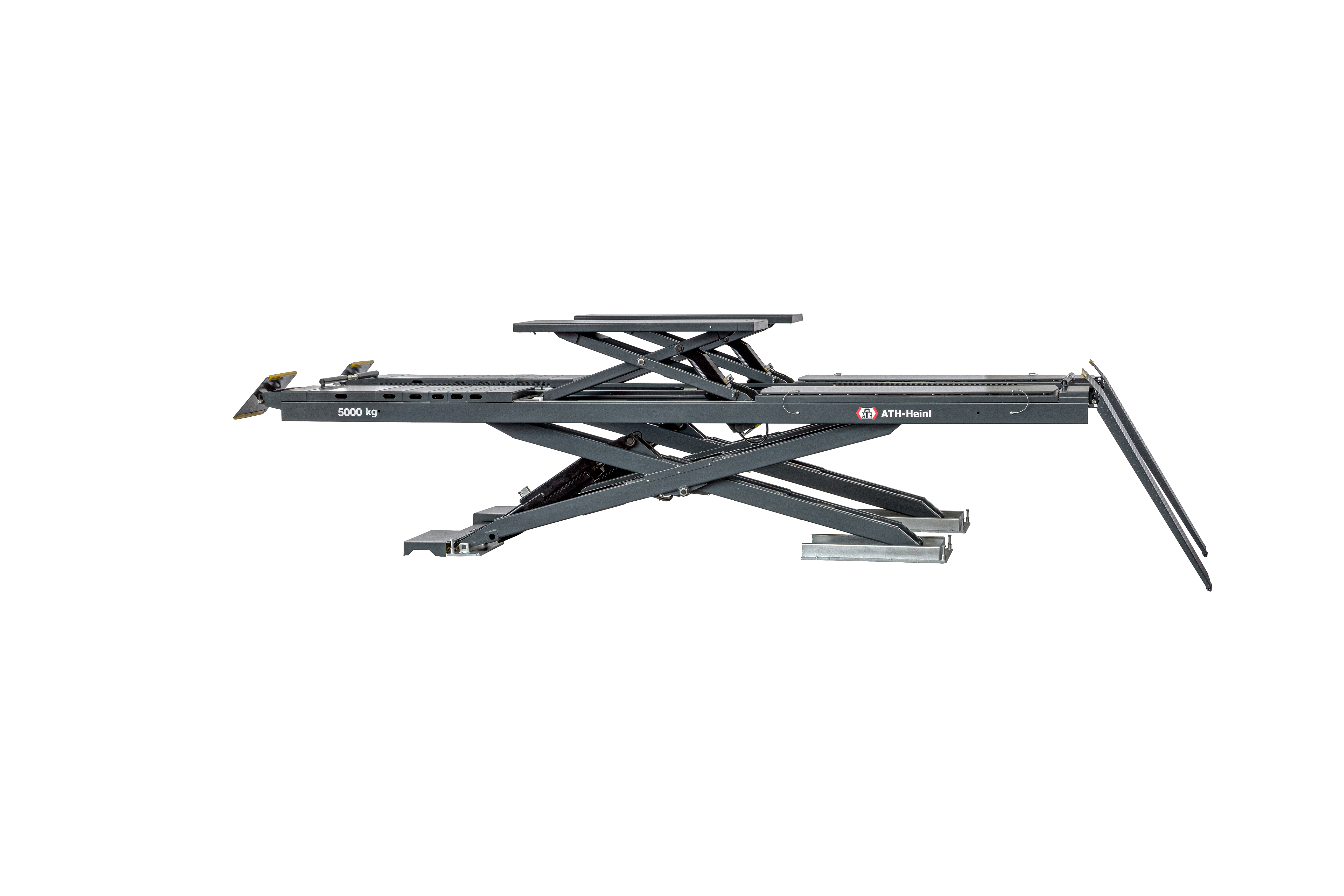

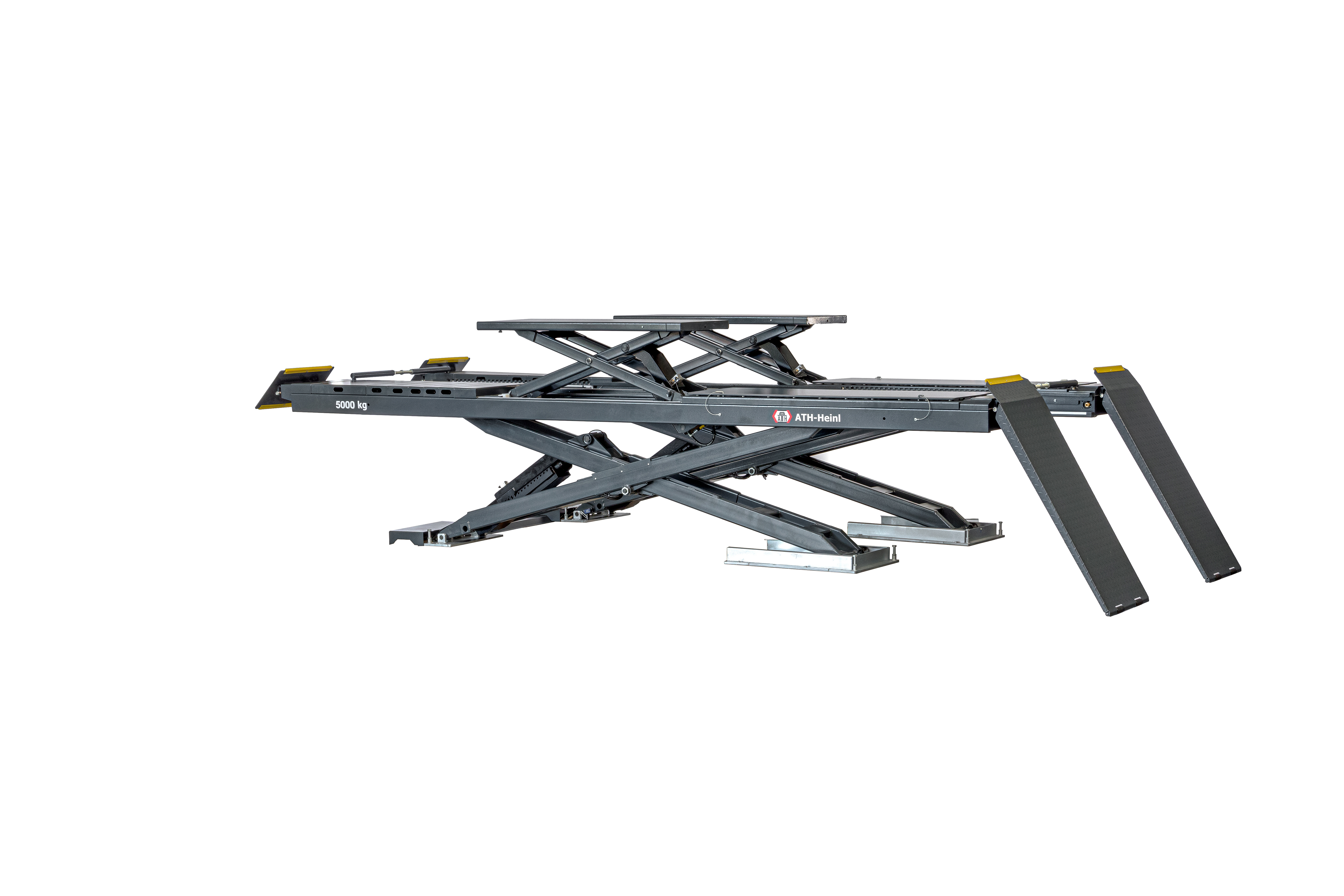

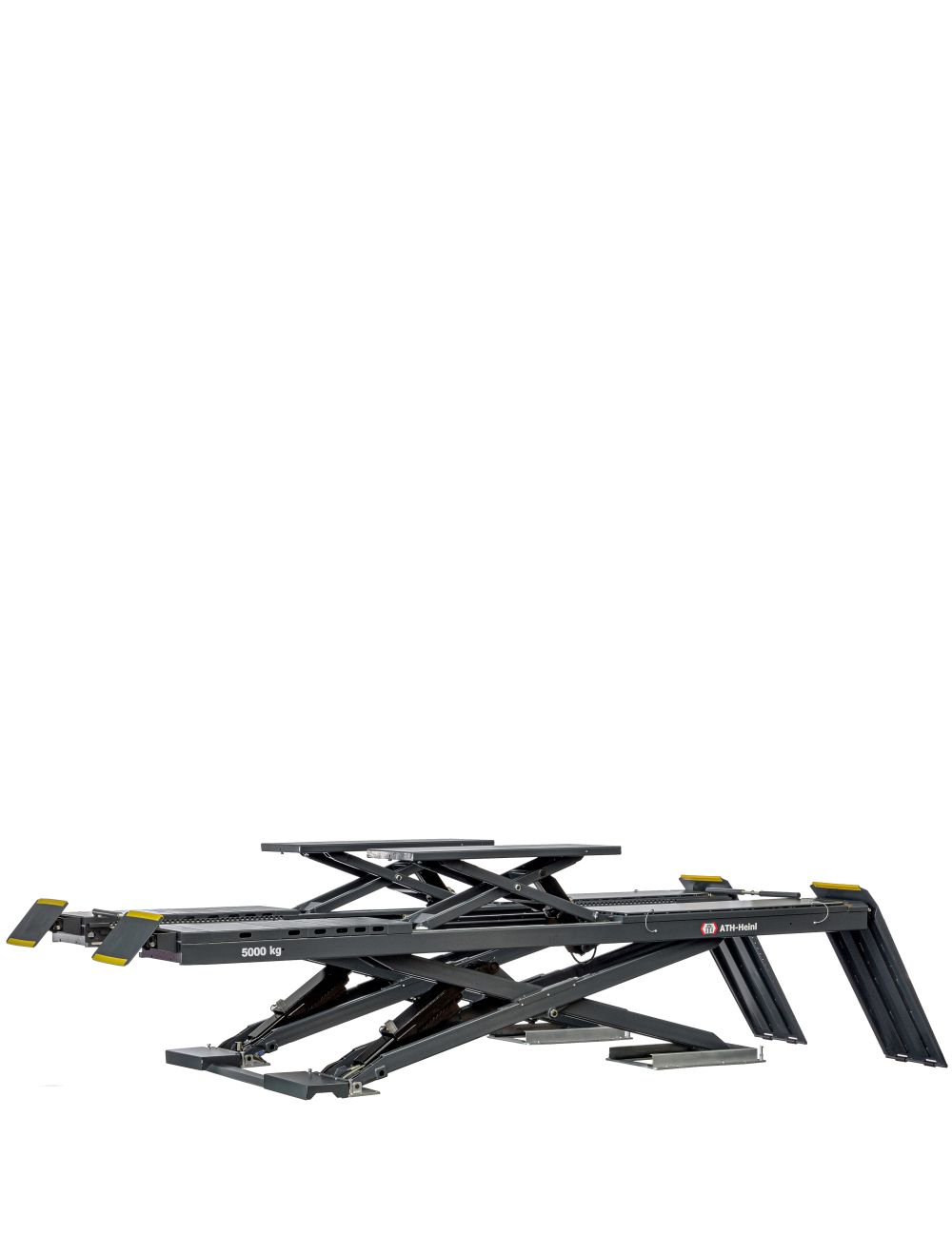

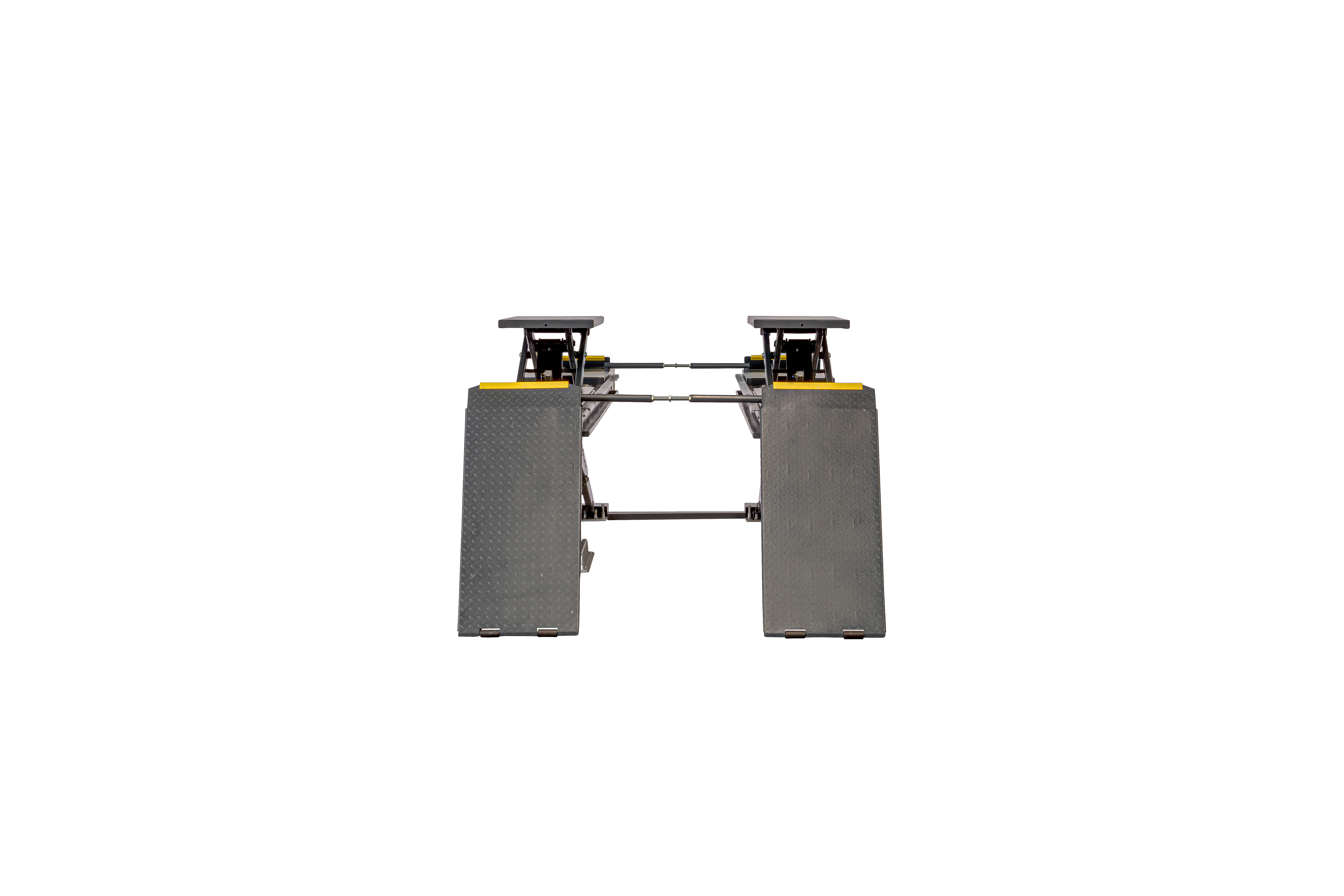

ATH Cross Lift 50 OGA
€16,298.32
plus assembly and freight
€19,395.00
Availability:
In stock
SKU
631022
- High quality and robust scissor lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit with load-dependent lowering valve
- Suitable for floor-level installation and installation on the floor with the optional on ground kit

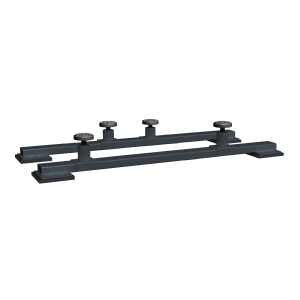

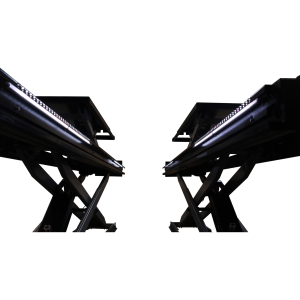

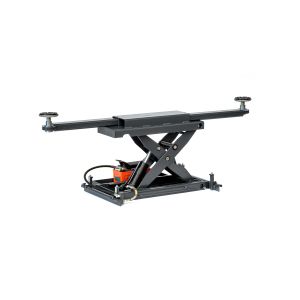

- With recesses for rotating plates at the front, mechanically lockable oscillating plates at the rear, Wheel-free jack (load capacity: 4 t, lifting height: 450 mm), side rails for the optional axle-free jack, removable cross connections, including metal protection bar and switch for the optional 24V LED lighting

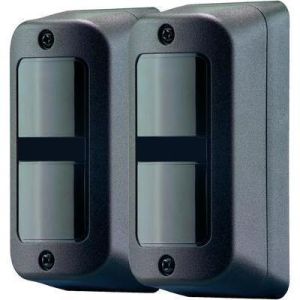

- Emergency lowering system for lowering in the event of a power failure, synchronization monitoring via safety light barrier
- Ideally suited for inspection, wheel alignment, repairs and test stations for headlamp and driver assistance systems

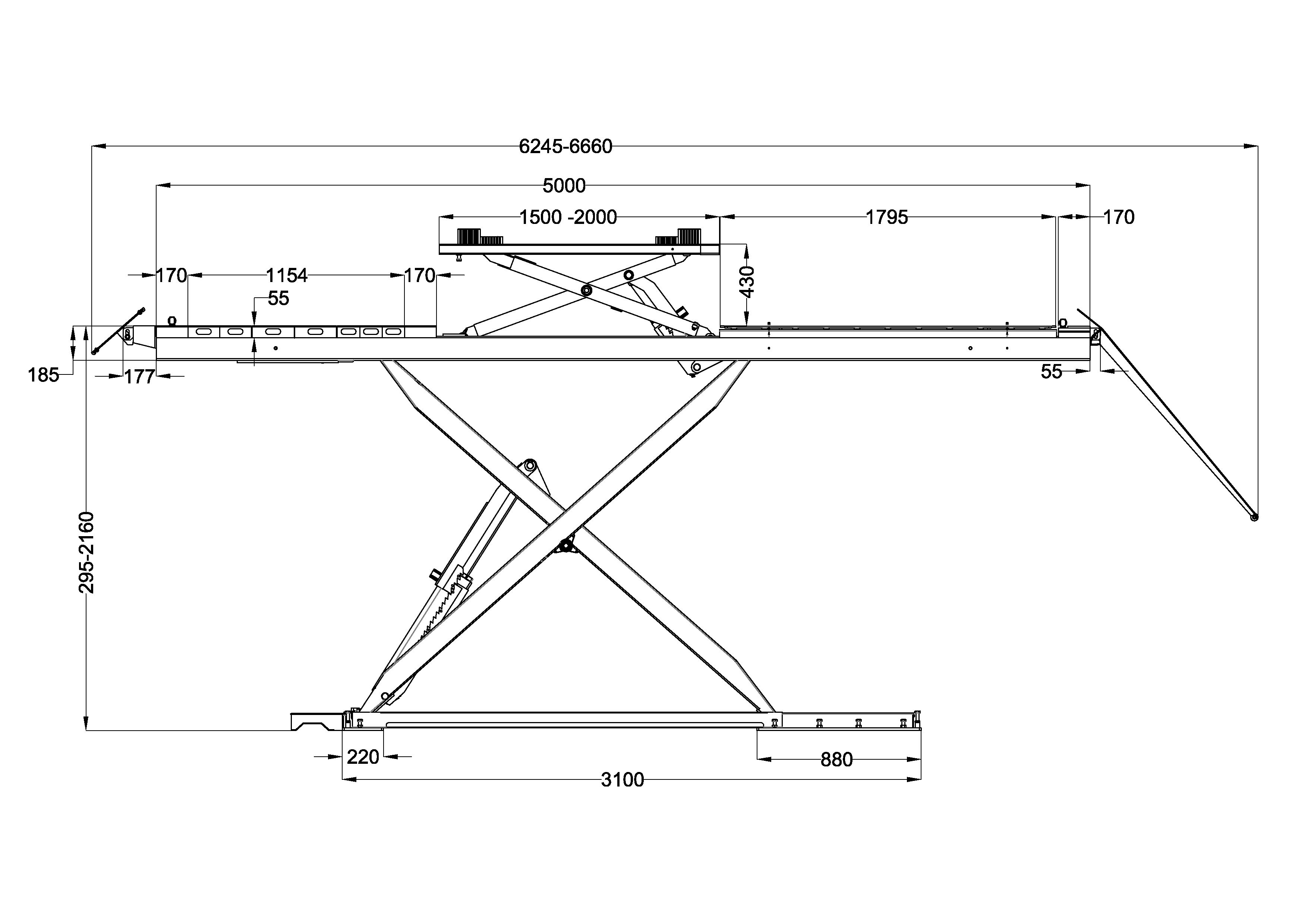

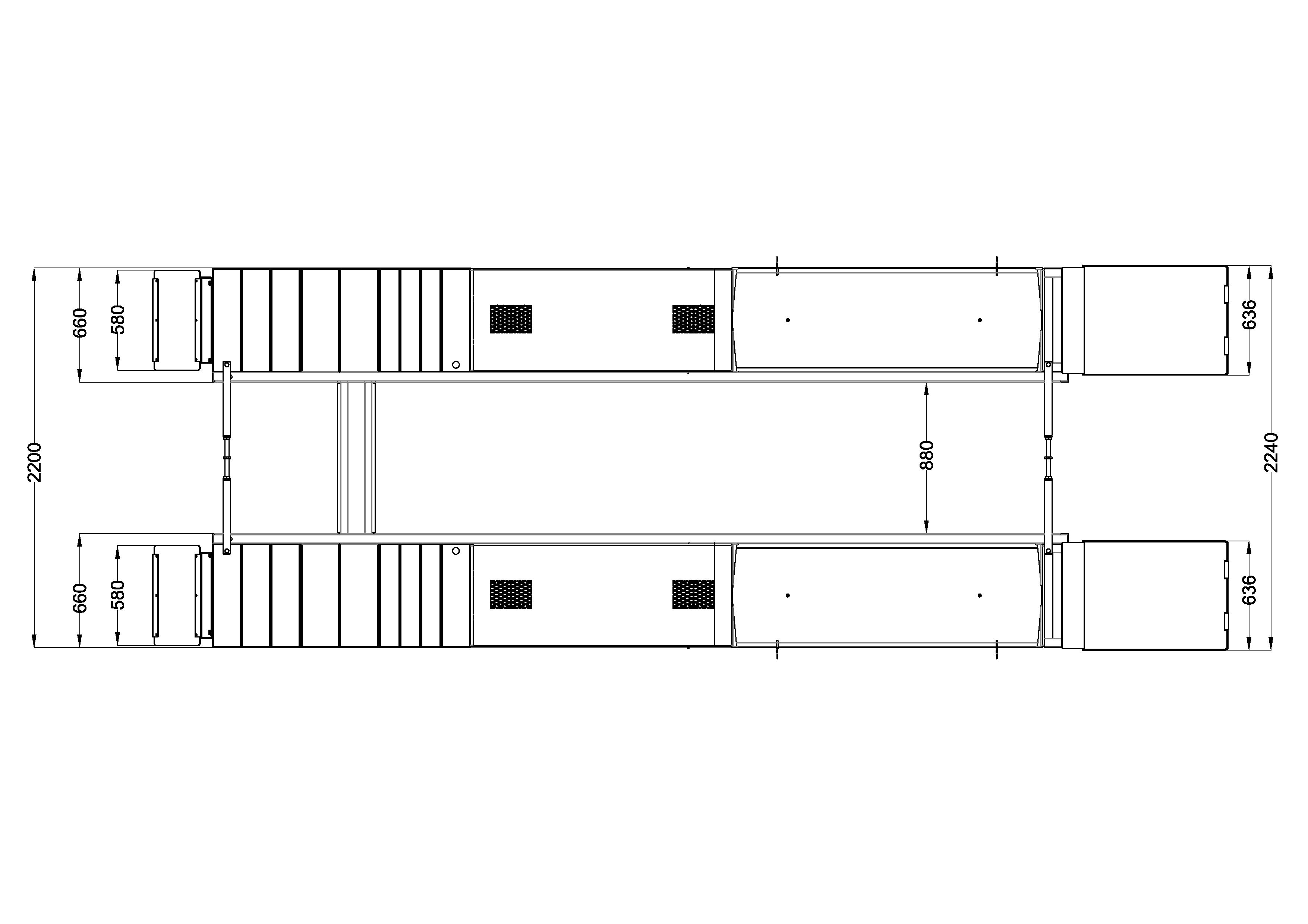

| Color | Anthrazitgrau / Schwarz |
|---|---|
| Rated load capacity | 5.000 kg |

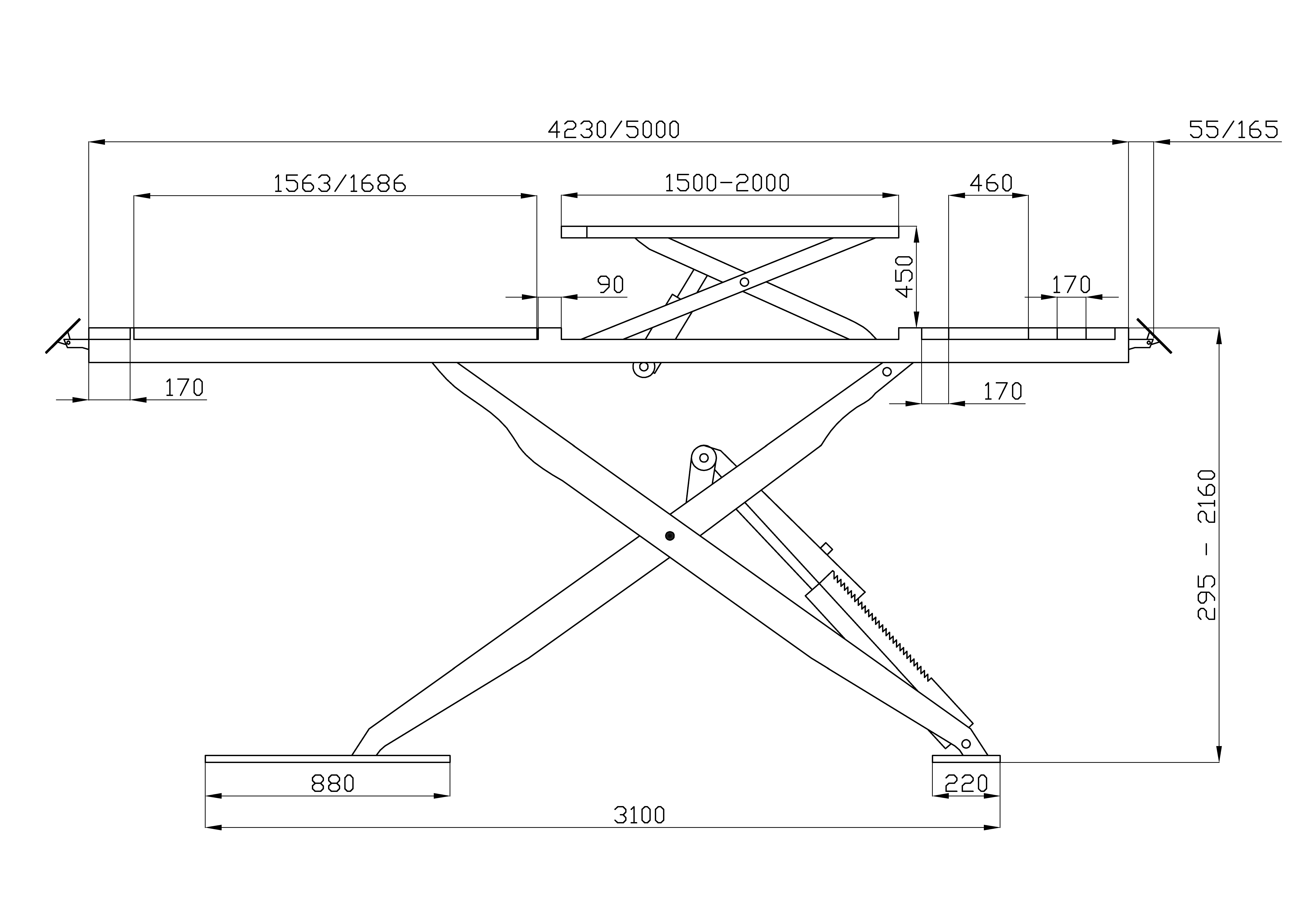

| Lifting height max. | 2.160 mm |
| Drive-on-height | 295 mm |

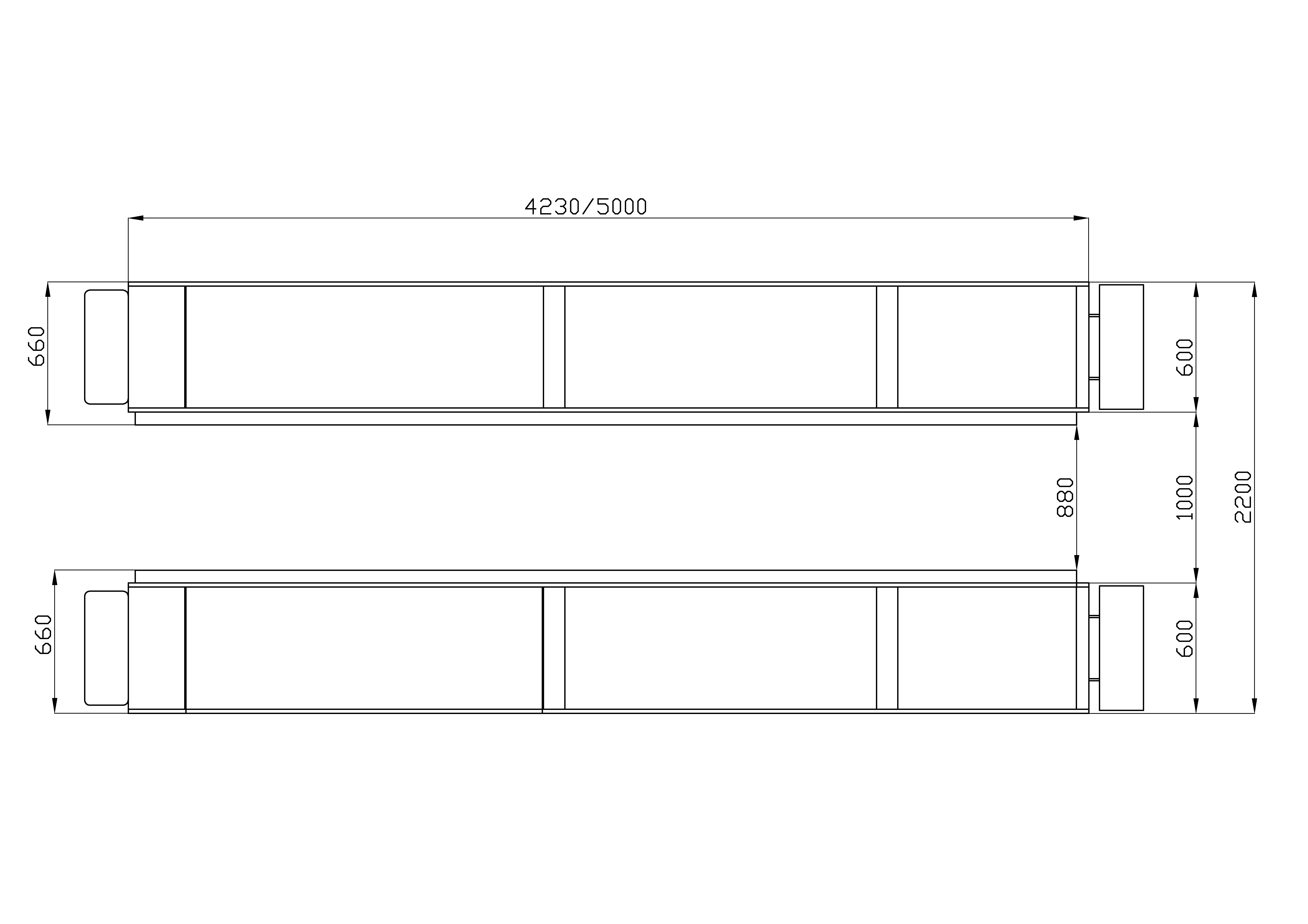

| Total platform length | 5.000 mm |
| Total platform width | 600 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | ca. 70 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 5.500 x 3.000 x 200 mm |
Related Products

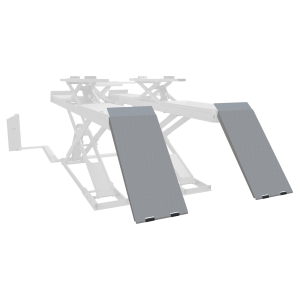

Überflur-KIT RAL7016 für Scherenhebebühne ATH SH5000H/HA/Cross Auffahrrampen & Abdeckbleche
€920.17
plus assembly and freight
€1,095.00
Product Catalogue
We can also advise you by phone 0800 612 4064
Download Product-Brochure
