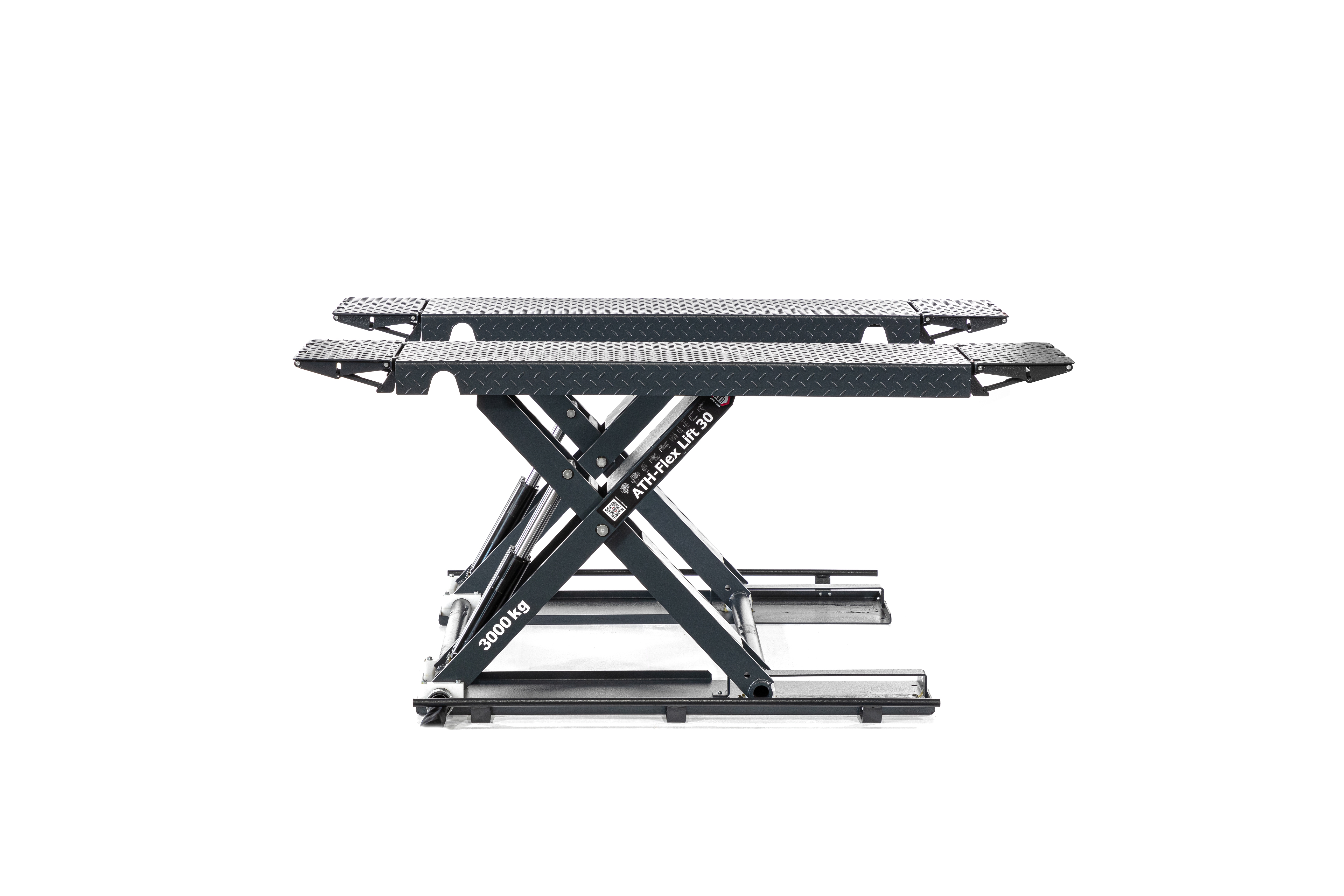

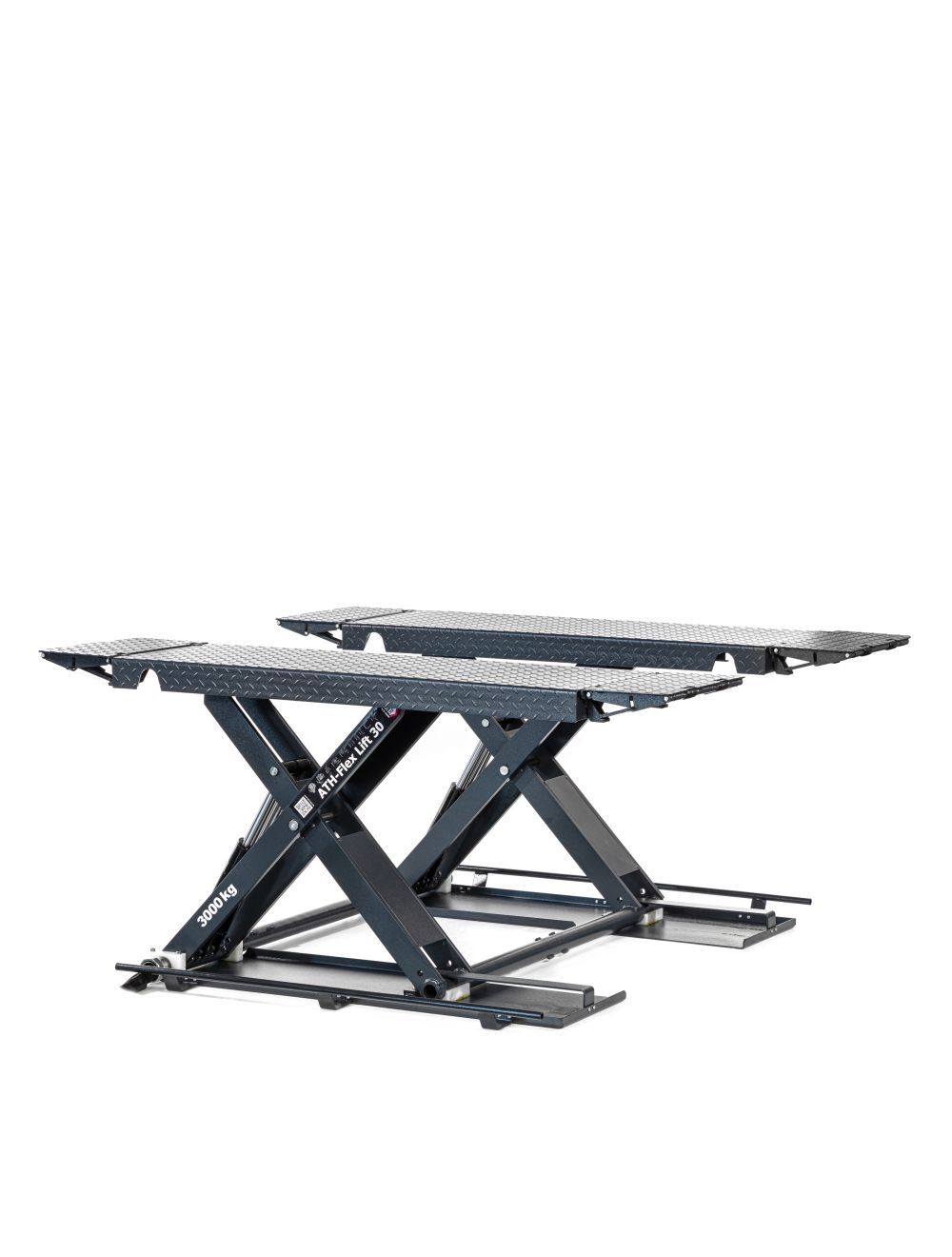

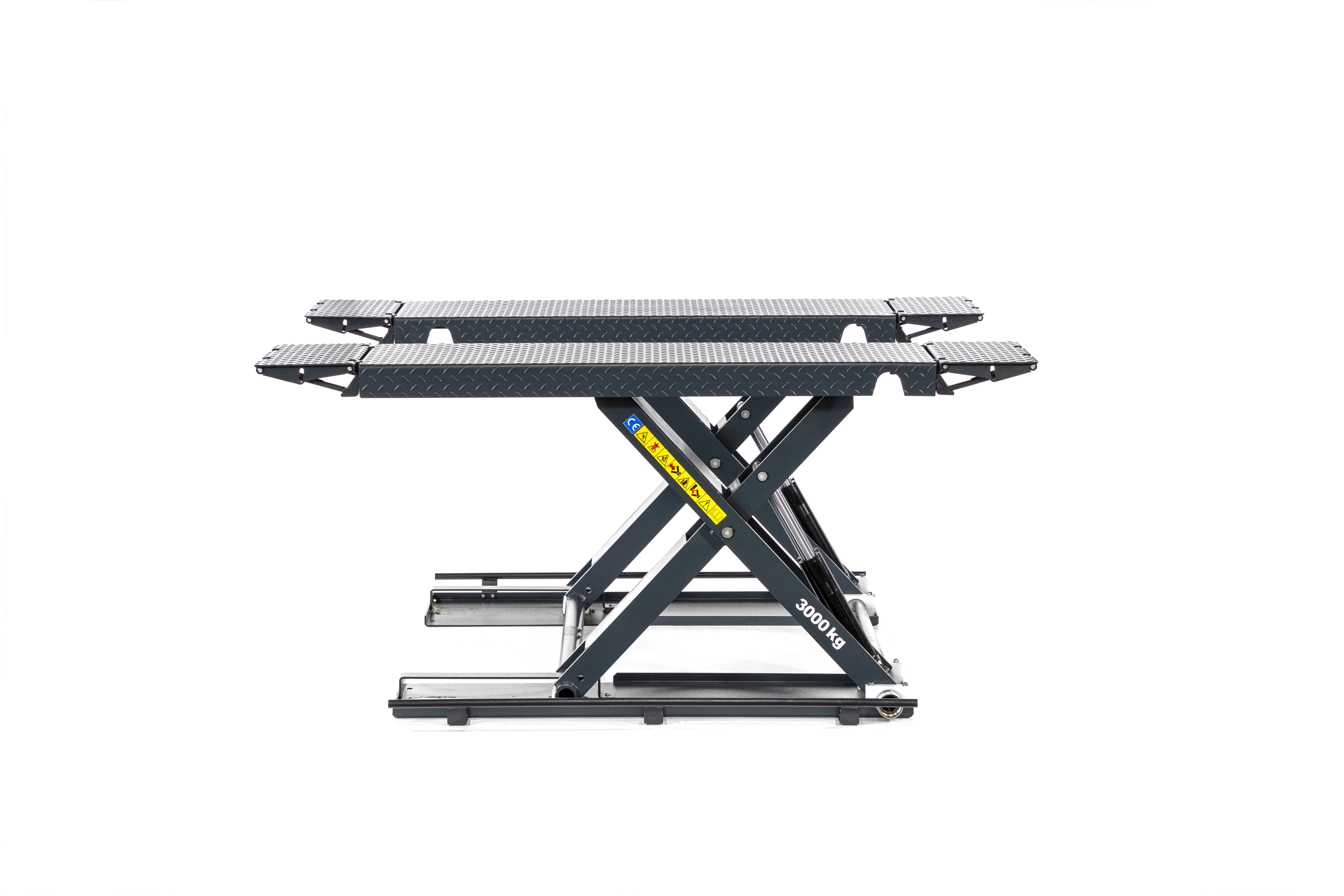

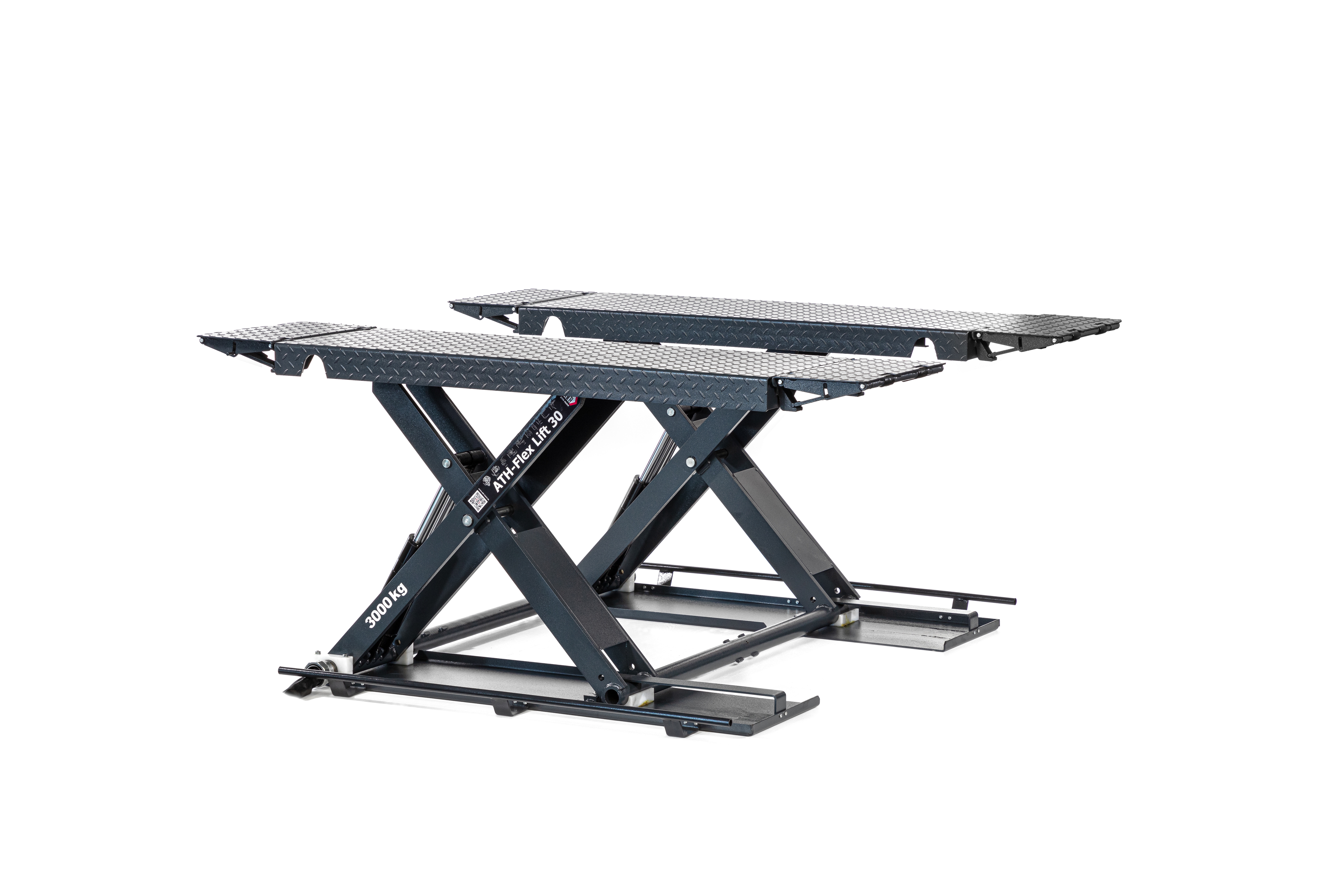

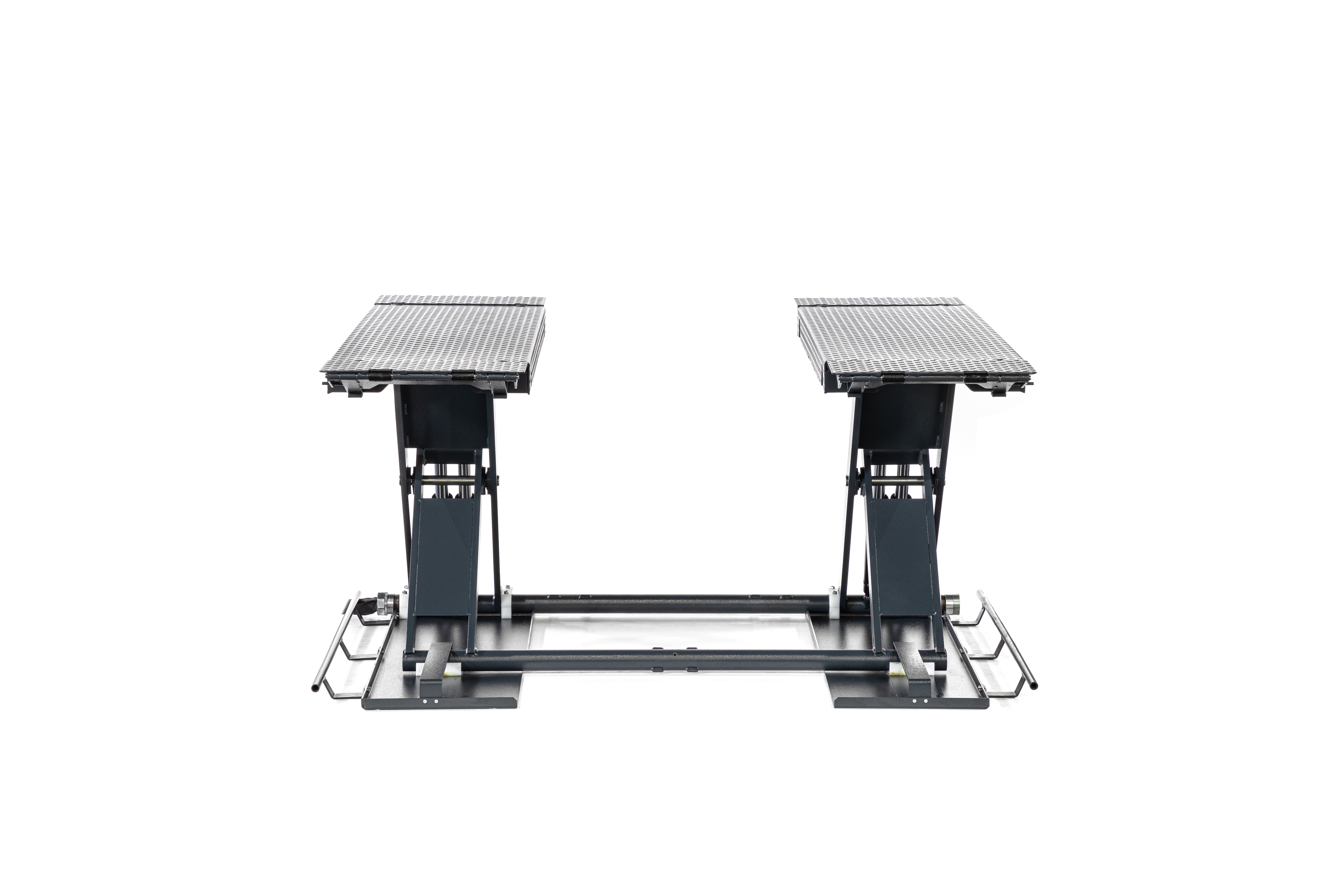

ATH Flex Lift 30
€3,189.08
plus assembly and freight
€3,795.01
Availability:
In stock
SKU
680008
- High-quality and robust short-stroke lift with hydraulic drive, almost maintenance-free

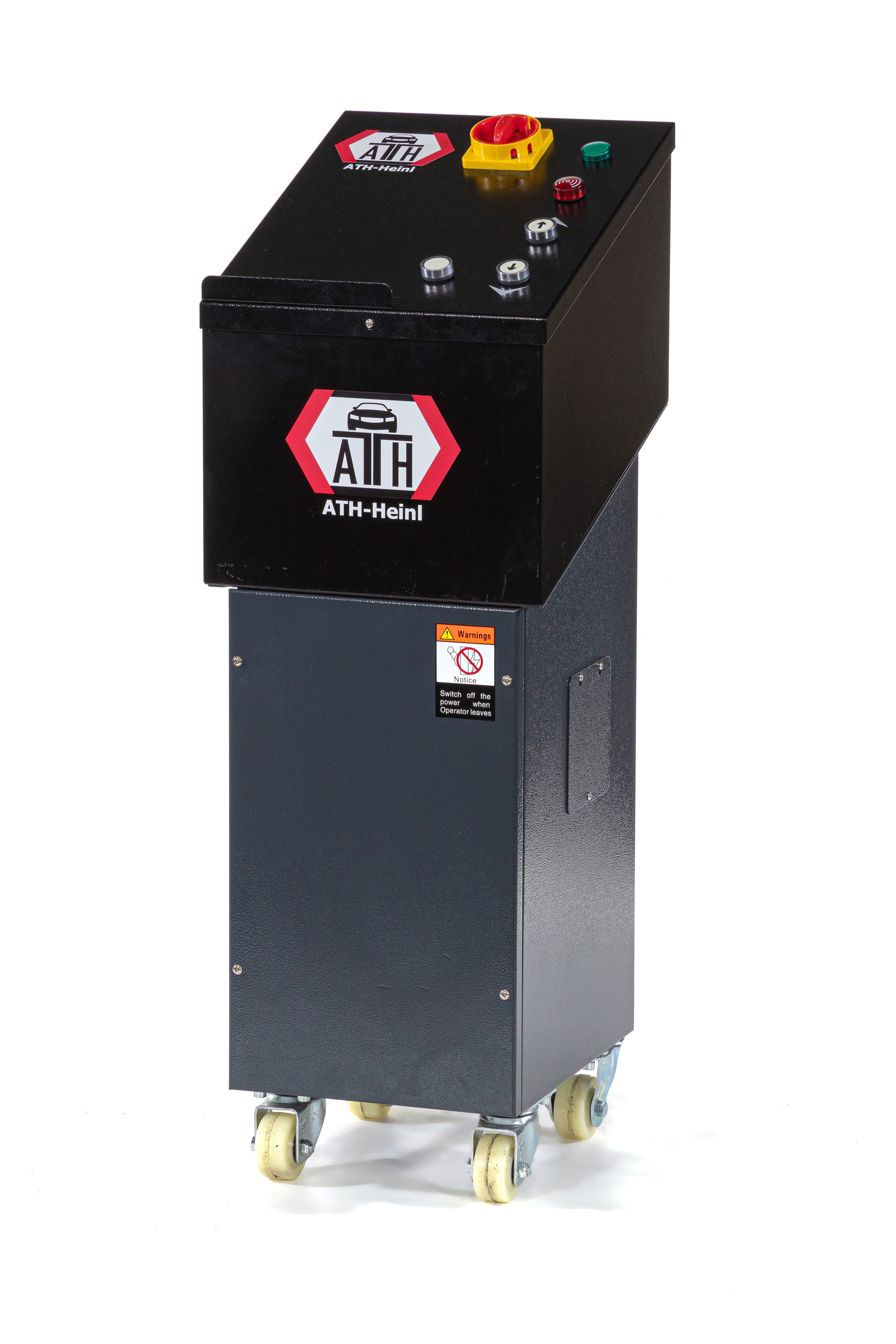

- Powerful hydraulic unit (230V / C16A)

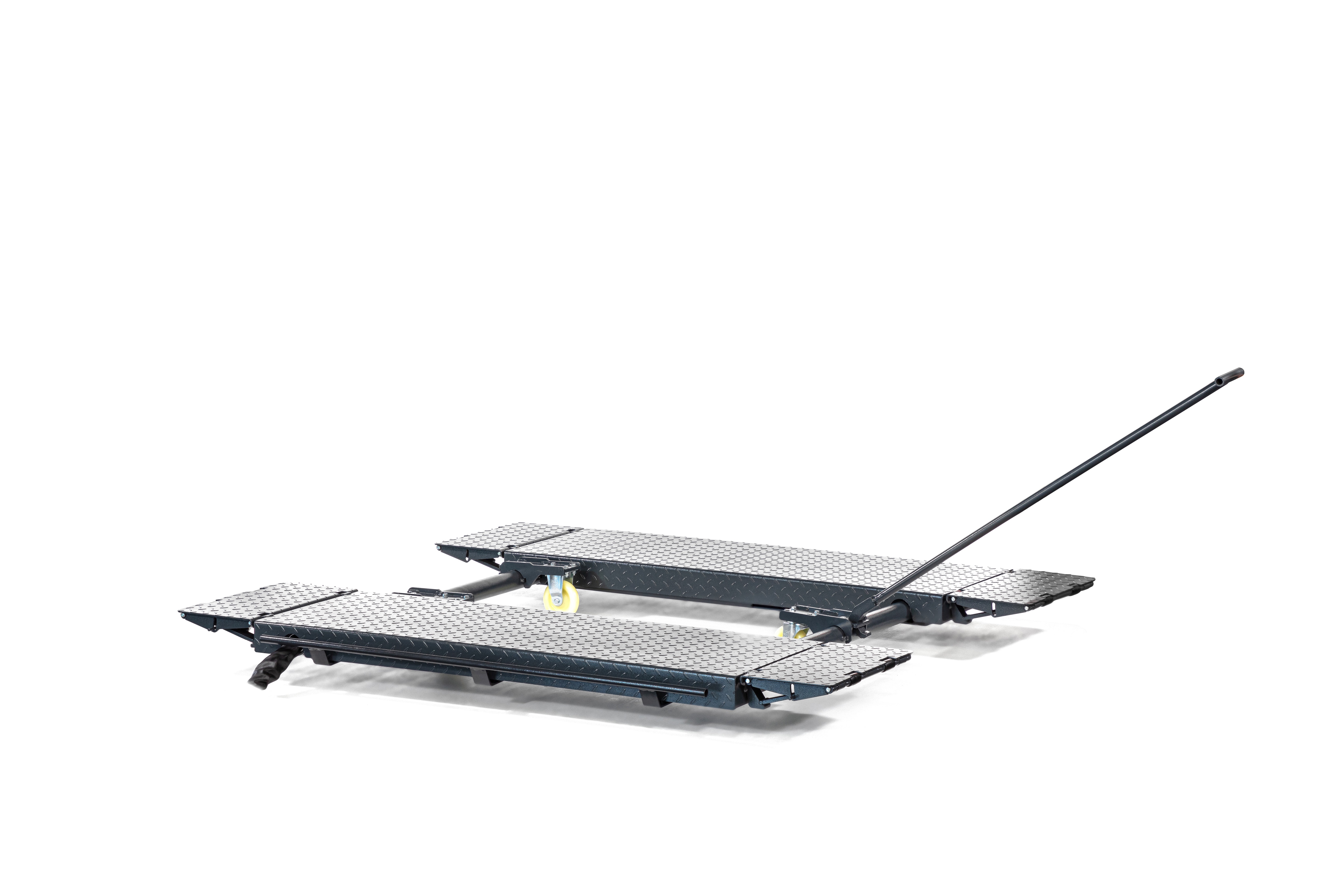

- Very low drive-over height of only approx. 105 mm
- No electrical limit switches, protective hose over the hydraulic lines

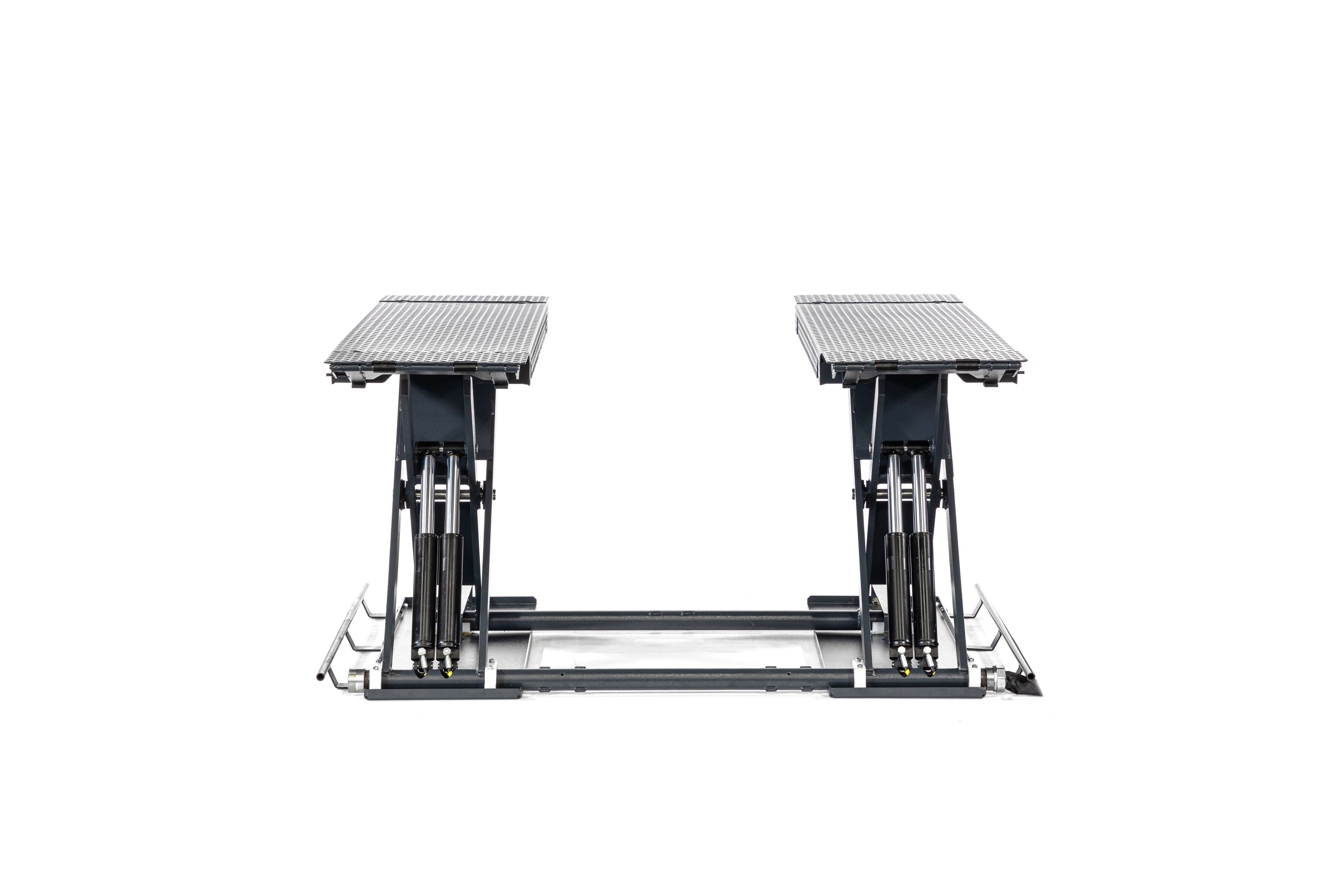

- Mechanical synchronization through cross connection and double hydraulic lines
- Full lifting power from the lowest point
- Emergency lowering system for lowering in the event of a power failure
- Ideally suited for paint and body shops, repairs, brake and tire services
| Color | Anthrazitgrau |
|---|---|
| Rated load capacity | 3.000 kg |

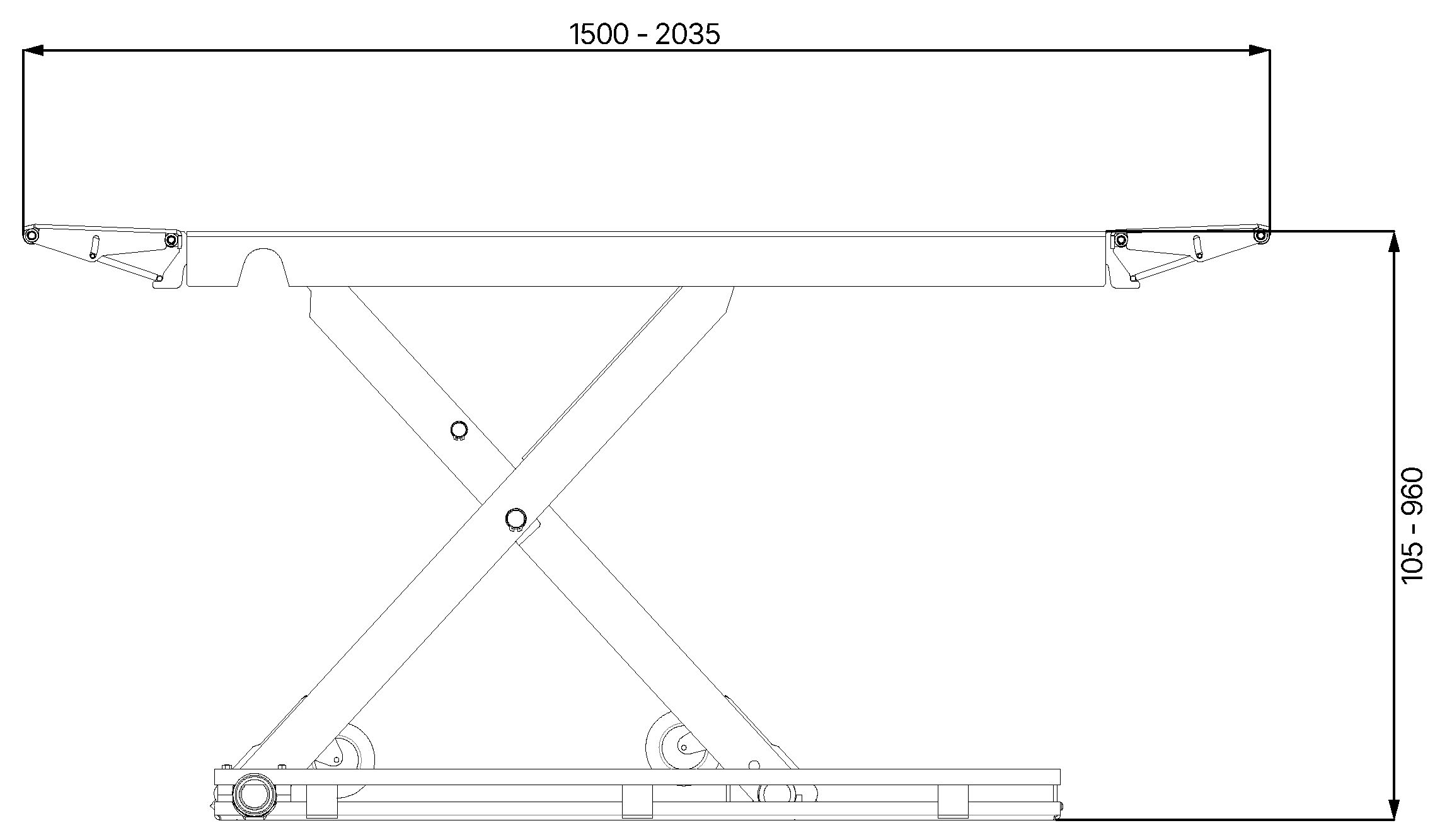

| Lifting height max. | 960 mm |
| Drive-on-height | 105 mm |

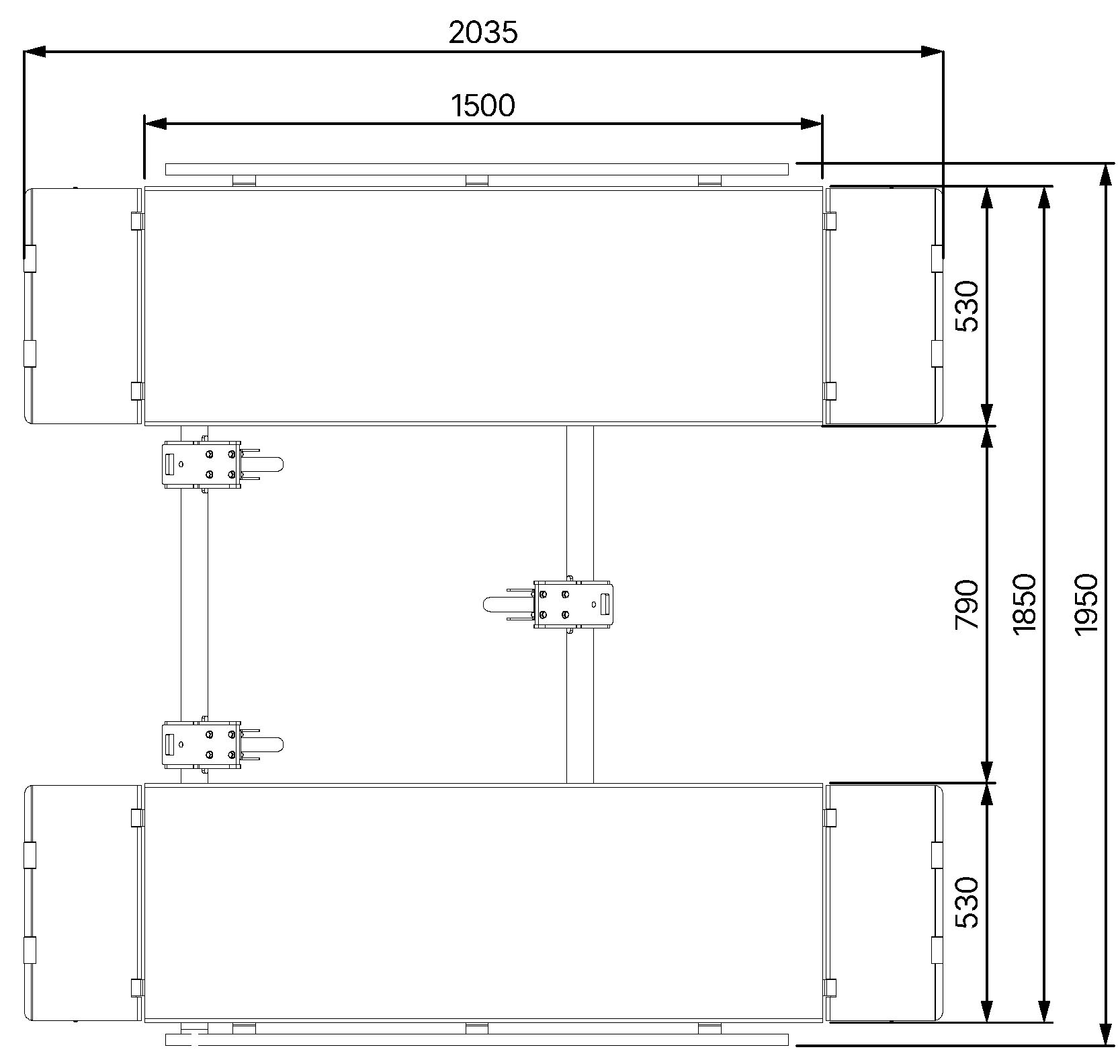

| Total platform length | 1.500 – 2.035 mm |
| Total platform width | 530 mm |
| Driving power | 2,2 kW |
| Lifting/Lowering time | ca. 20 s |
| Power supply voltage | 230V / C16A |
| Concrete strength | min. C20/25 2.500 x 2.500 x 180 mm |
