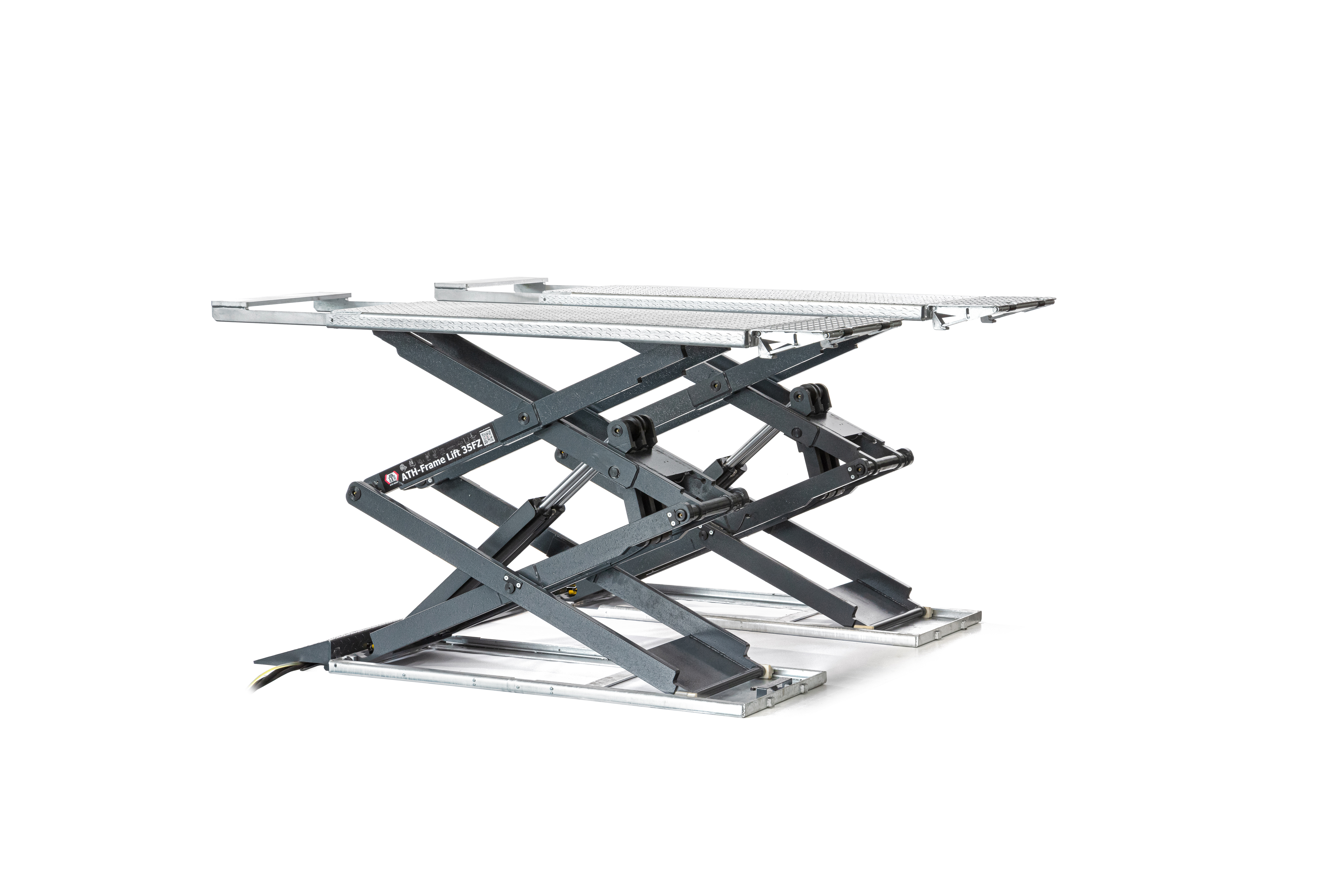

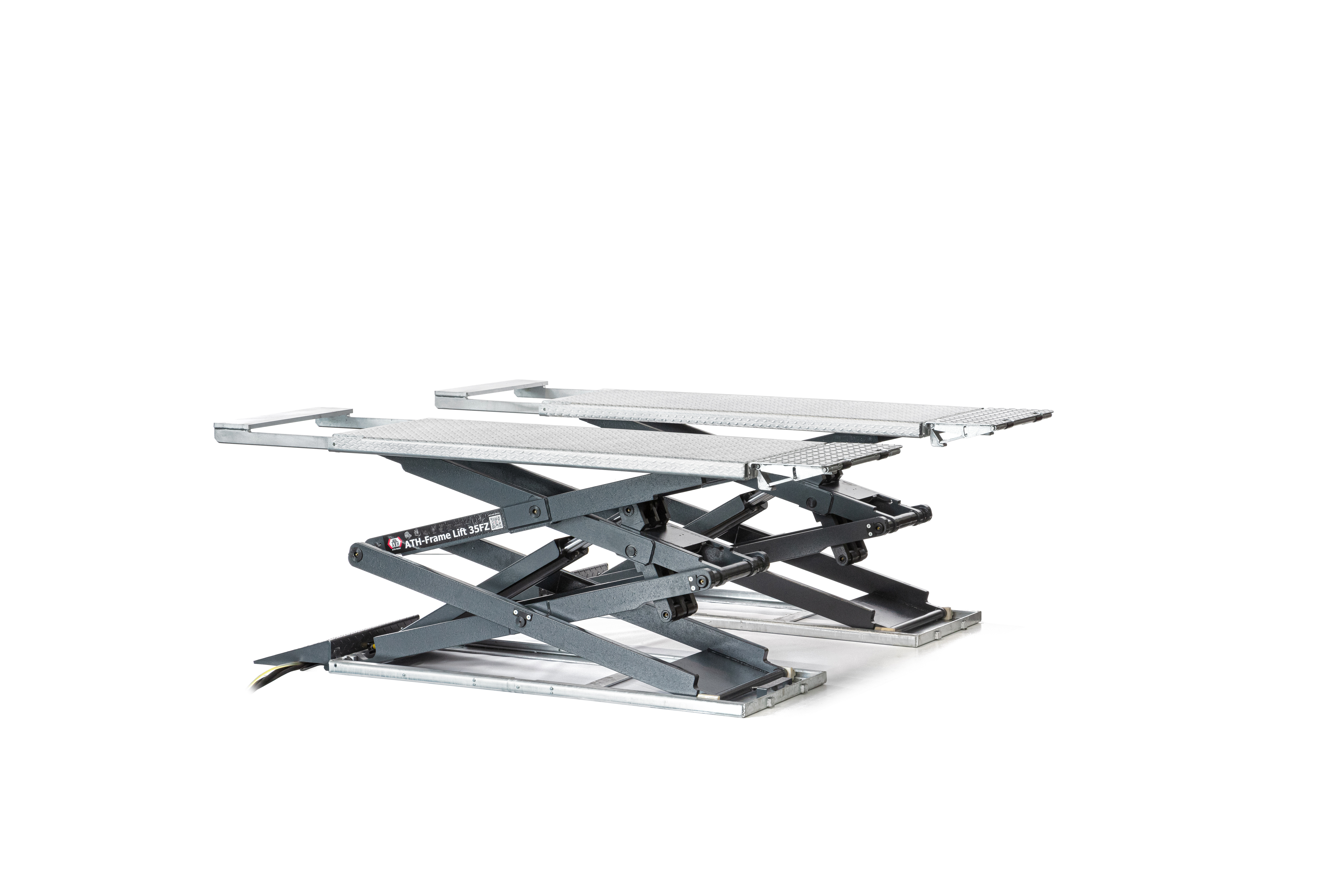

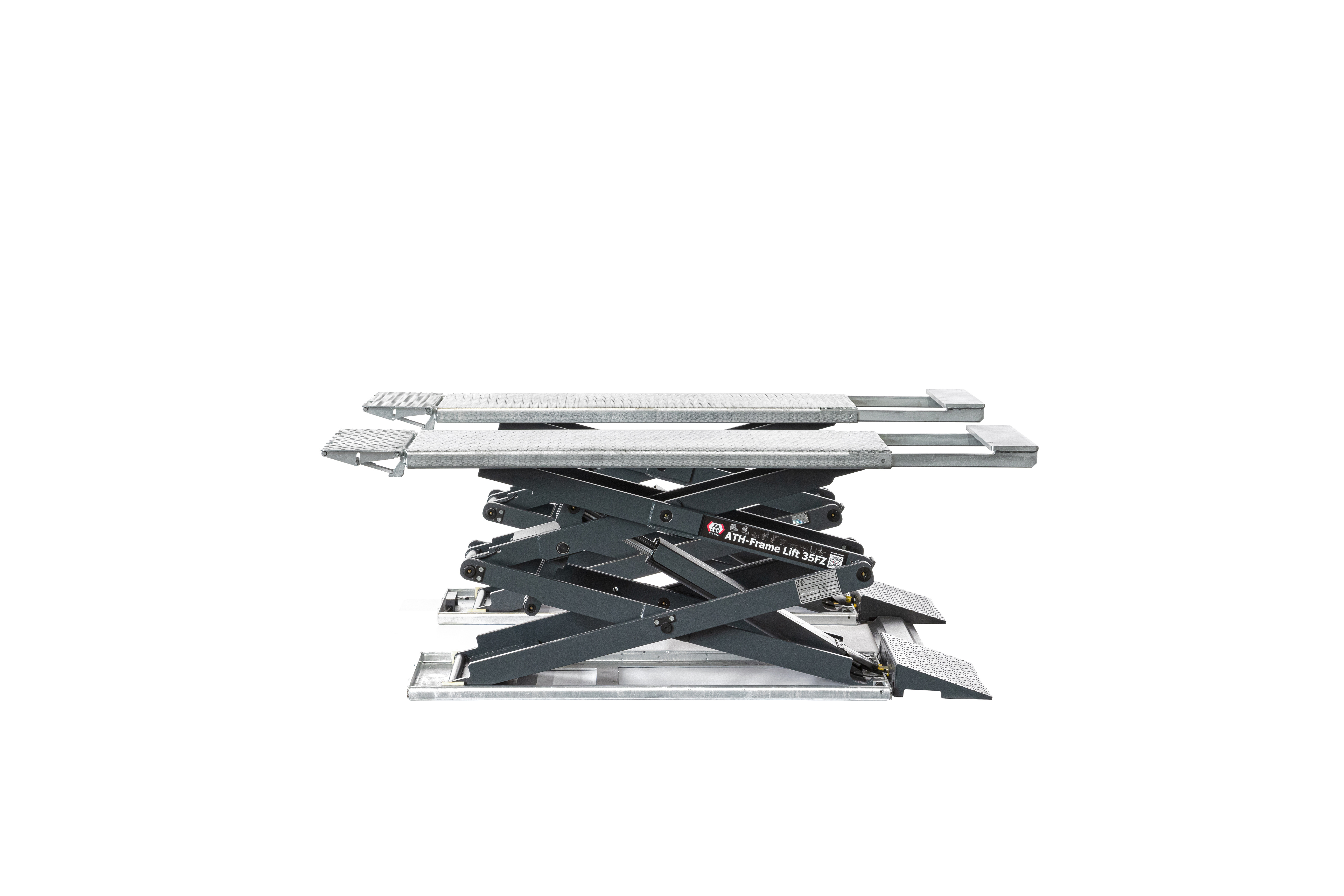

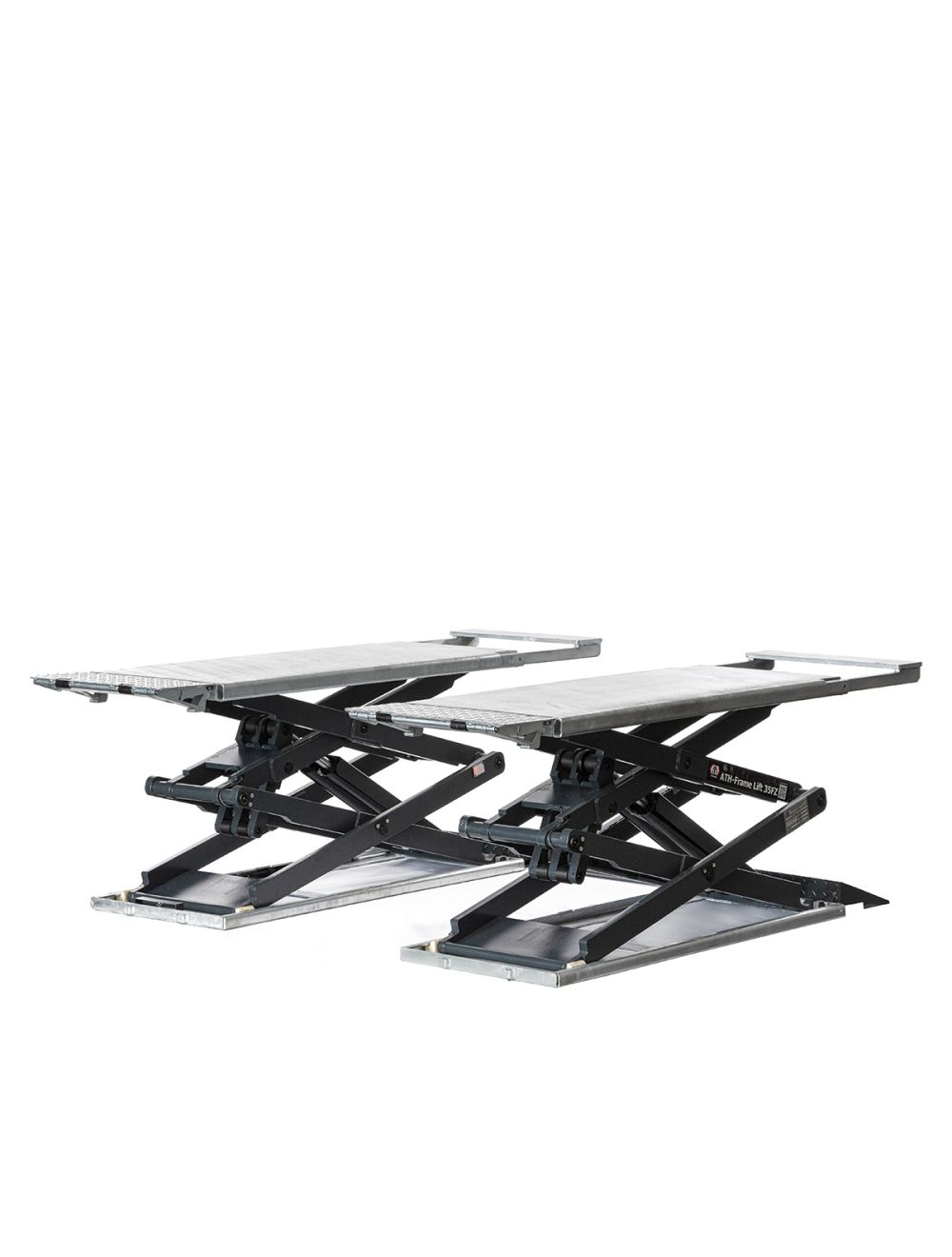

ATH Frame Lift 35FZ
€7,054.62
plus assembly and freight
€8,395.00
Availability:
In stock
SKU
630312
- High-quality and robust double scissor lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit with load-dependent lowering valve

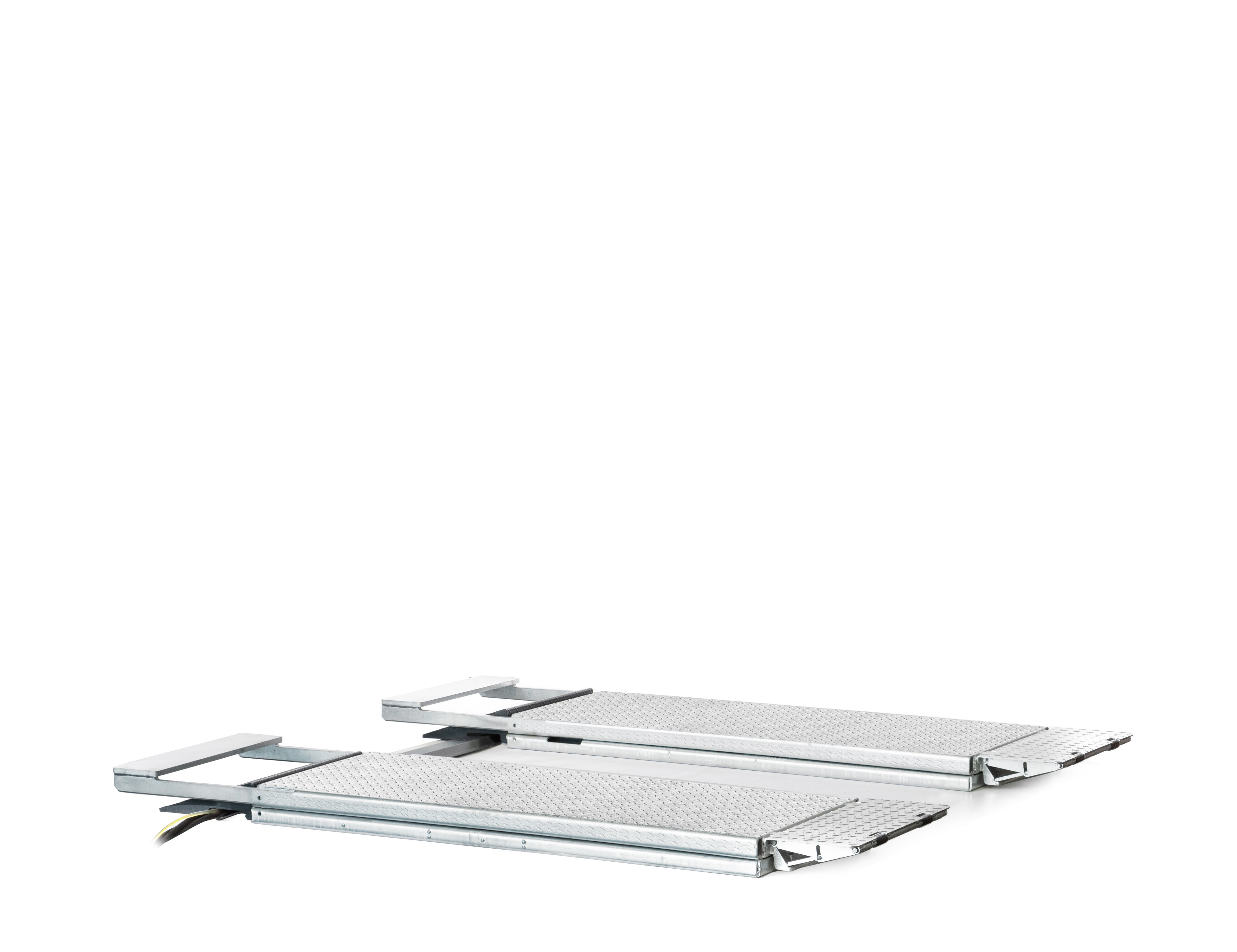

- Very low drive-over height of only approx. 105 mm
- Corrosion protection through hot-dip galvanizing
- Suitable for installation and use on the floor and optional floor-level installation (in ground kit)
- Synchronization control via double master and slave systems, light barriers and double hydraulic lines
- Full lifting power from the lowest point due to mechanical swivel system
- Extendable lanes
- Emergency lowering system for lowering in the event of a power failure, CE-Stop and acoustic lowering signal
- Ideally suited for paint and body shops, repairs, brake and tire services
| Rated load capacity | 3.500 kg |
|---|---|
| Lifting height max. | 1.900 mm |
| Drive-on-height | 105 mm |
| Total platform length | 1.547 – 2.270 mm |
| Total platform width | 625 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | ca. 50 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 2.500 x 2.500 x 180 mm |
