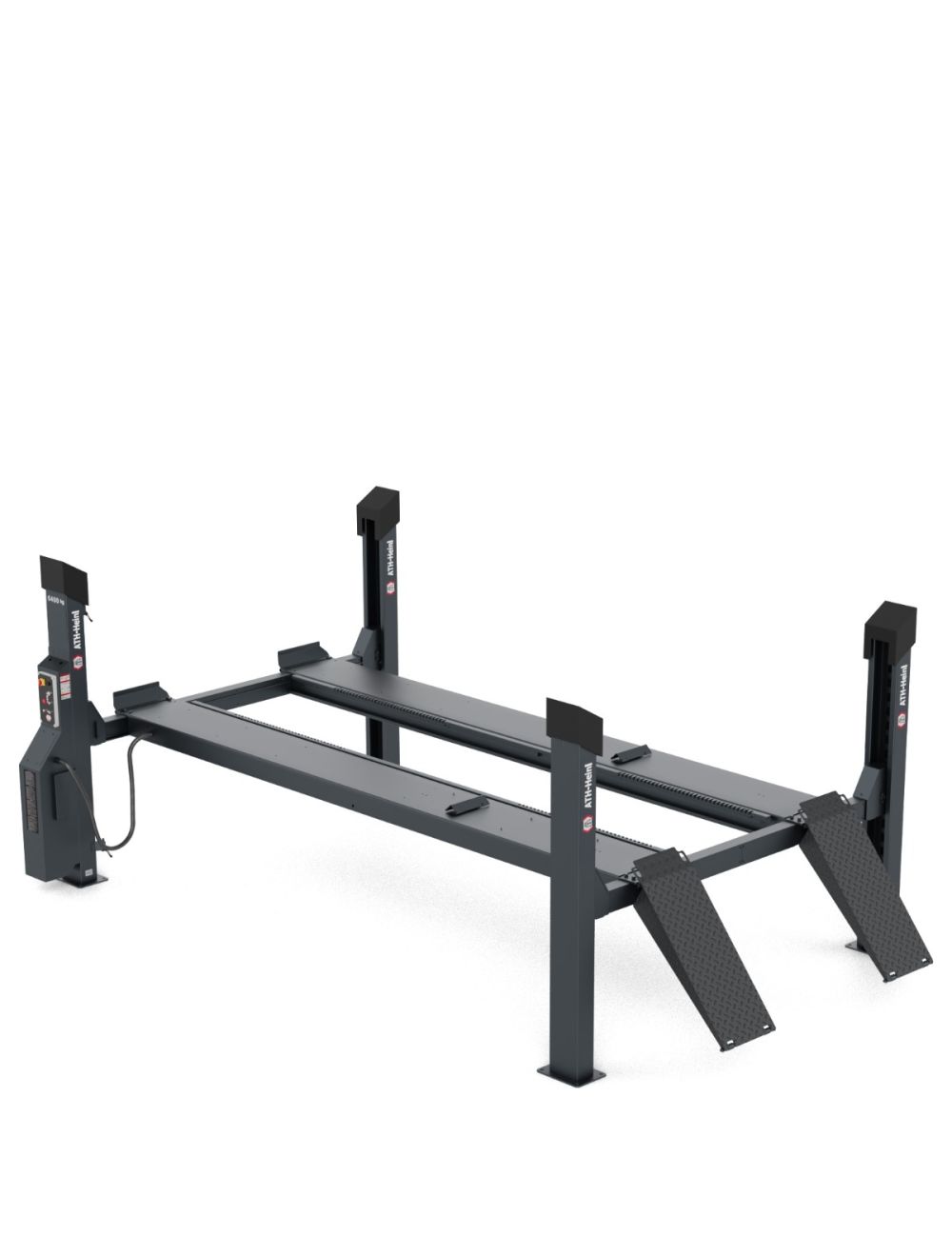

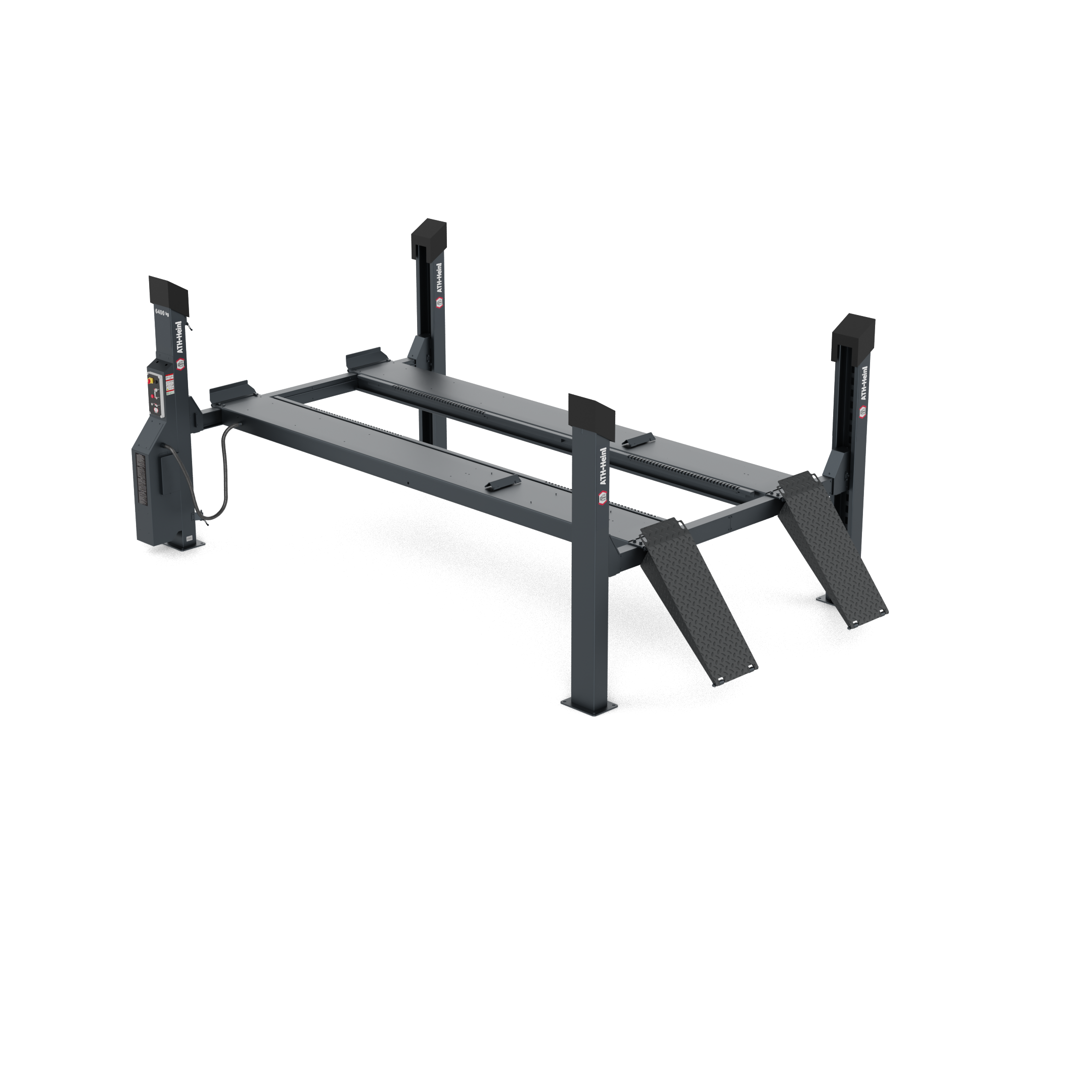

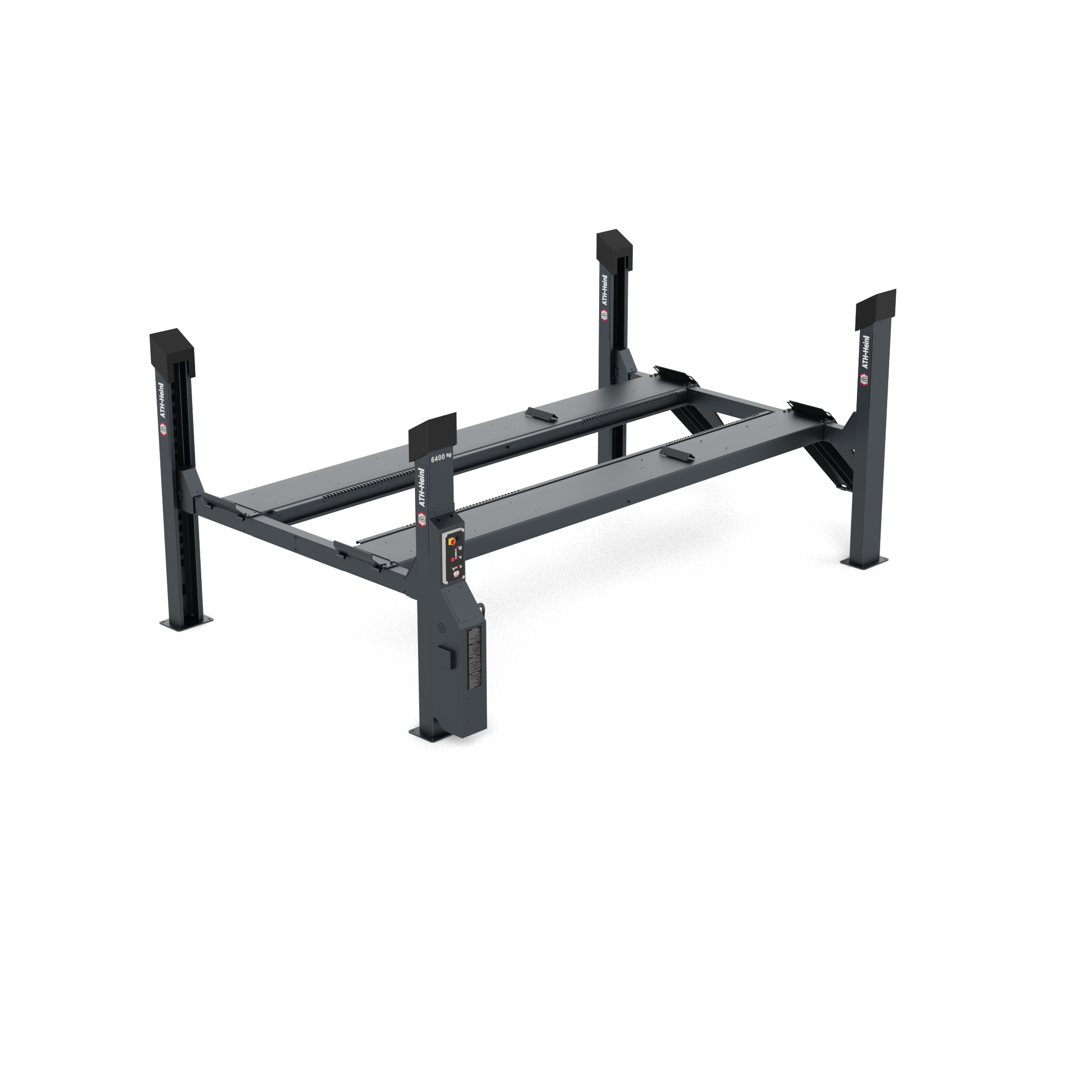

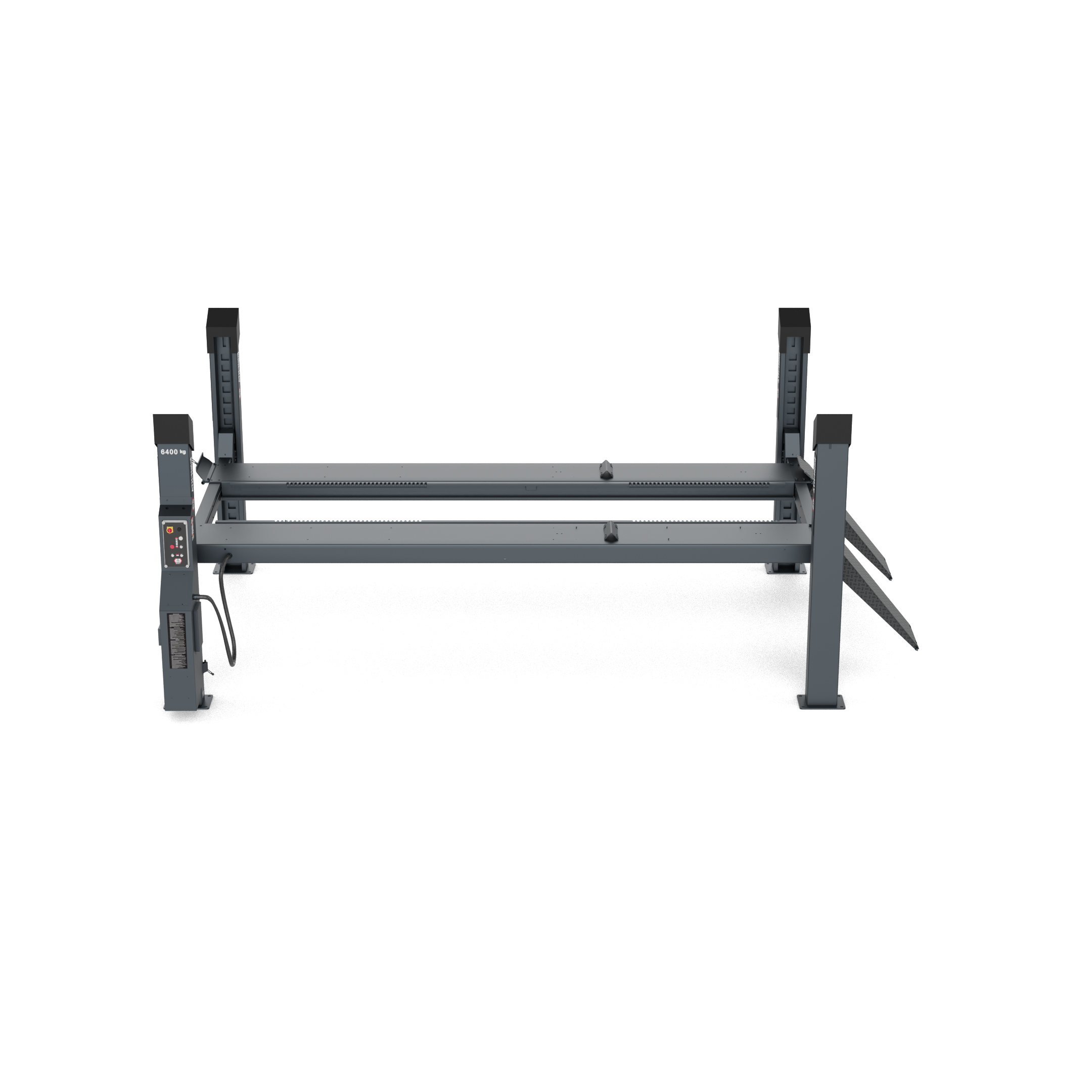

ATH Four Lift 64P
*SOLD OUT*
Availability:
In stock
SKU
650025
- Electro-hydraulic 4-post lift with quick lift unit and load-dependent lowering function
- Central operating unit, including unit cover
- ATH Four Lift 64AP: Level running rail with integrated wheel alignment kit
- ATH Four Lift 64P: level runway, optional wheel alignment kit
- Precisely levelable notch and rail system
- Safety Control: Electropneumatic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via continuously adjustable rails
- Perfect platform protection made of special polymer and double powder coating
| Rated load capacity | 6.400 kg |
|---|---|

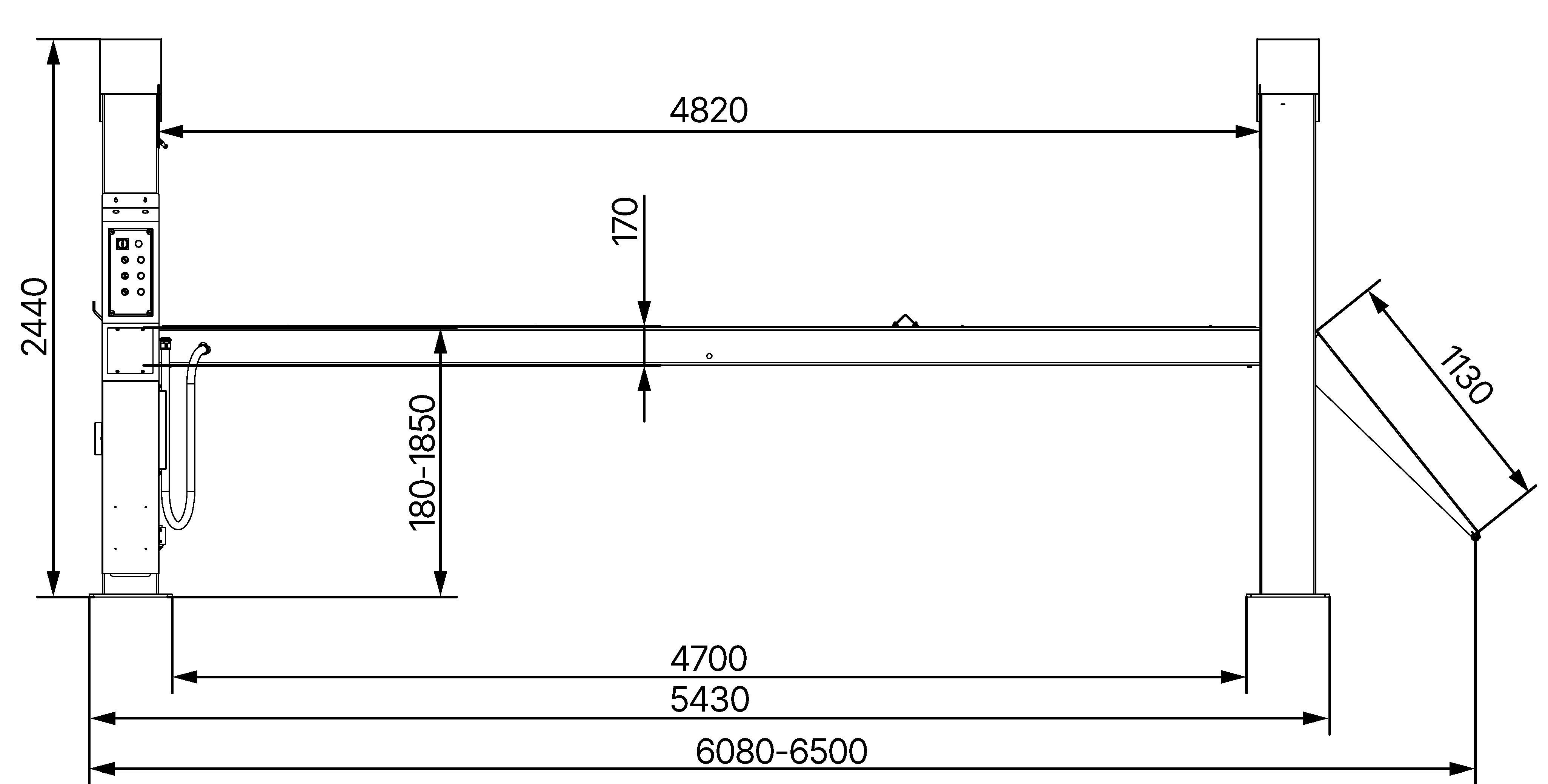

| Lifting height max. | 1.850 mm |
| Drive-on-height | 235 mm |

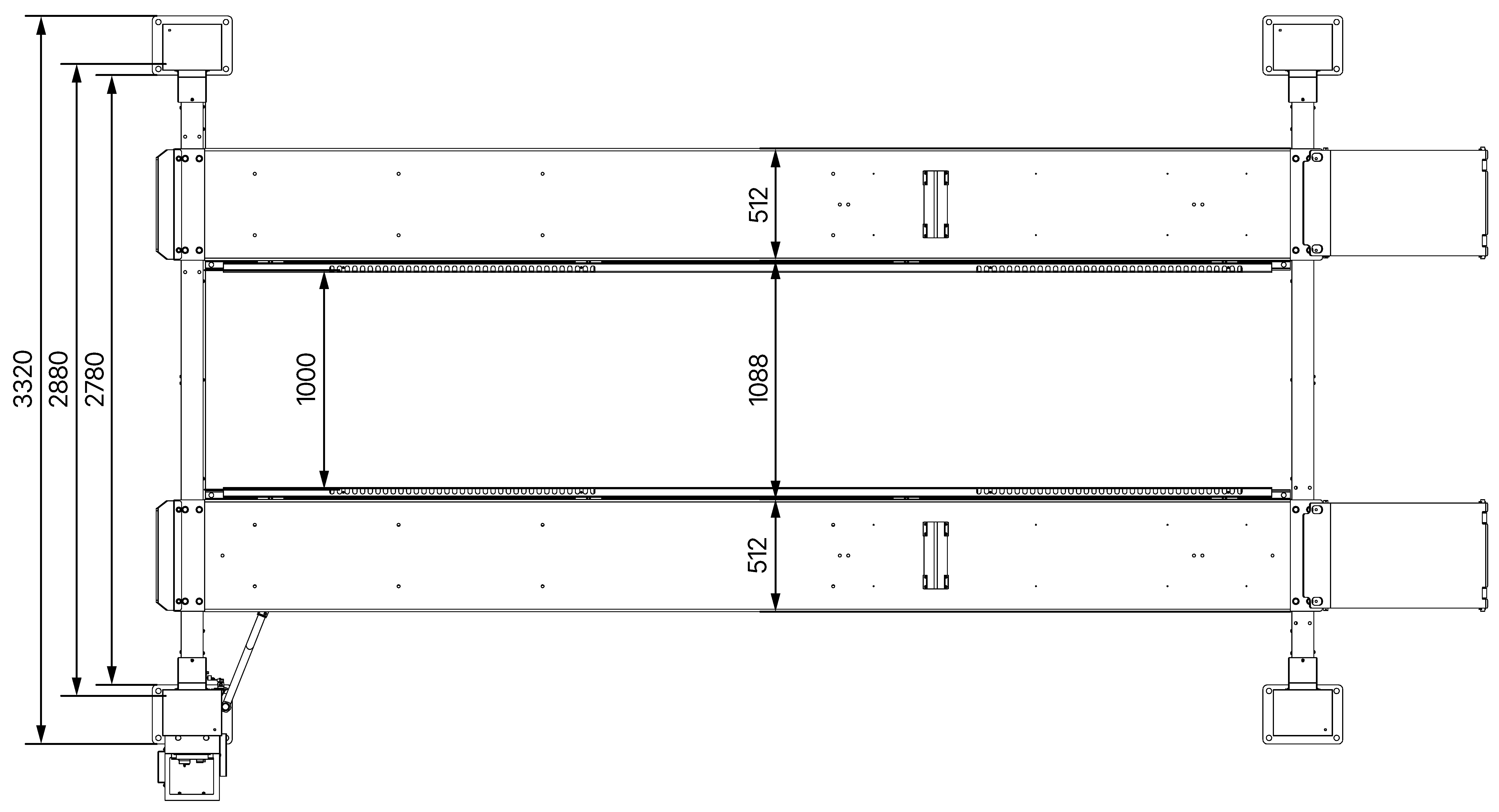

| Total platform length | 5.310 mm |
| Total platform width | 512 mm |
| Driving power | 4,0 kW |
| Lifting/Lowering time | ca. 48 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 7.400 x 3.900 x 200 mm |
