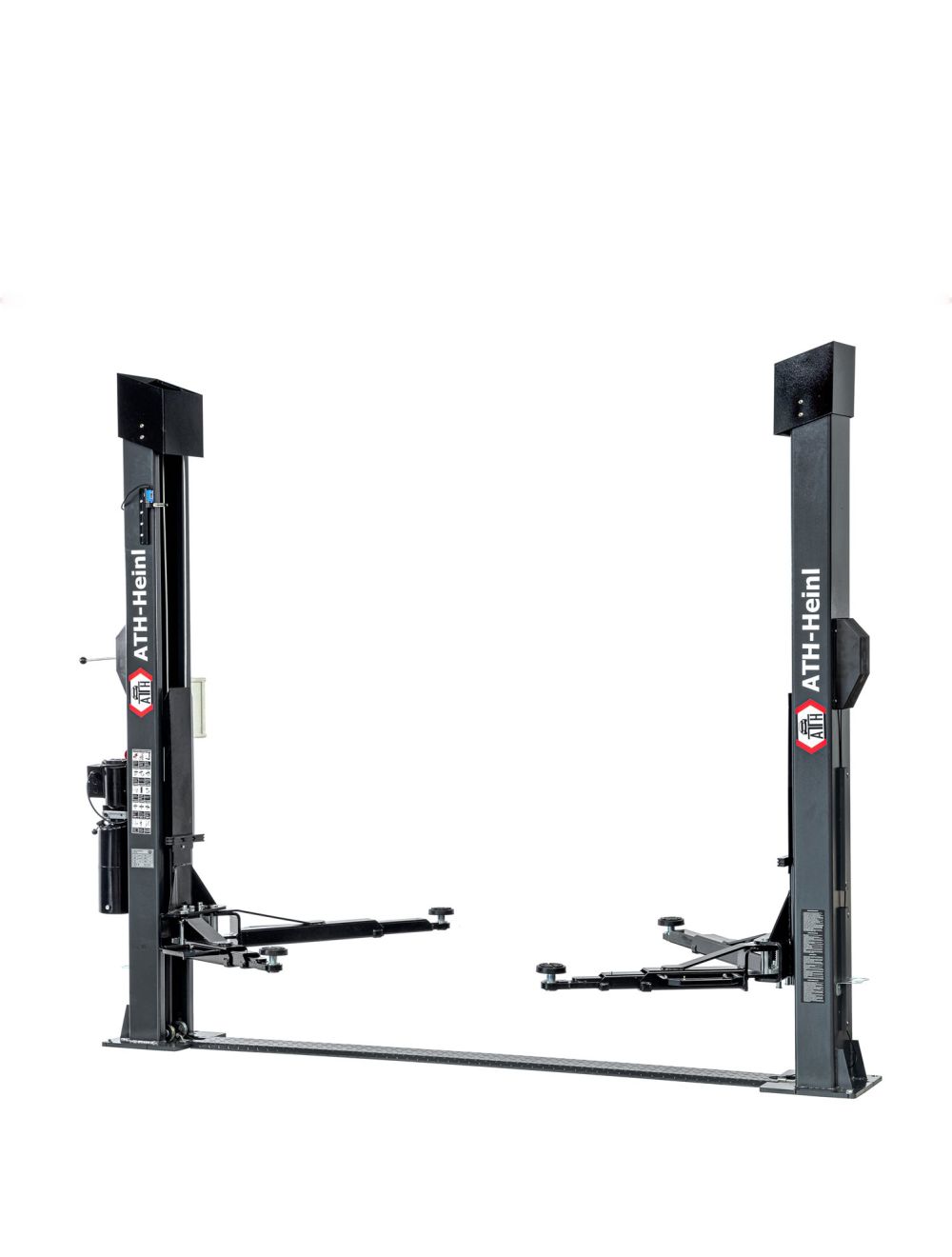

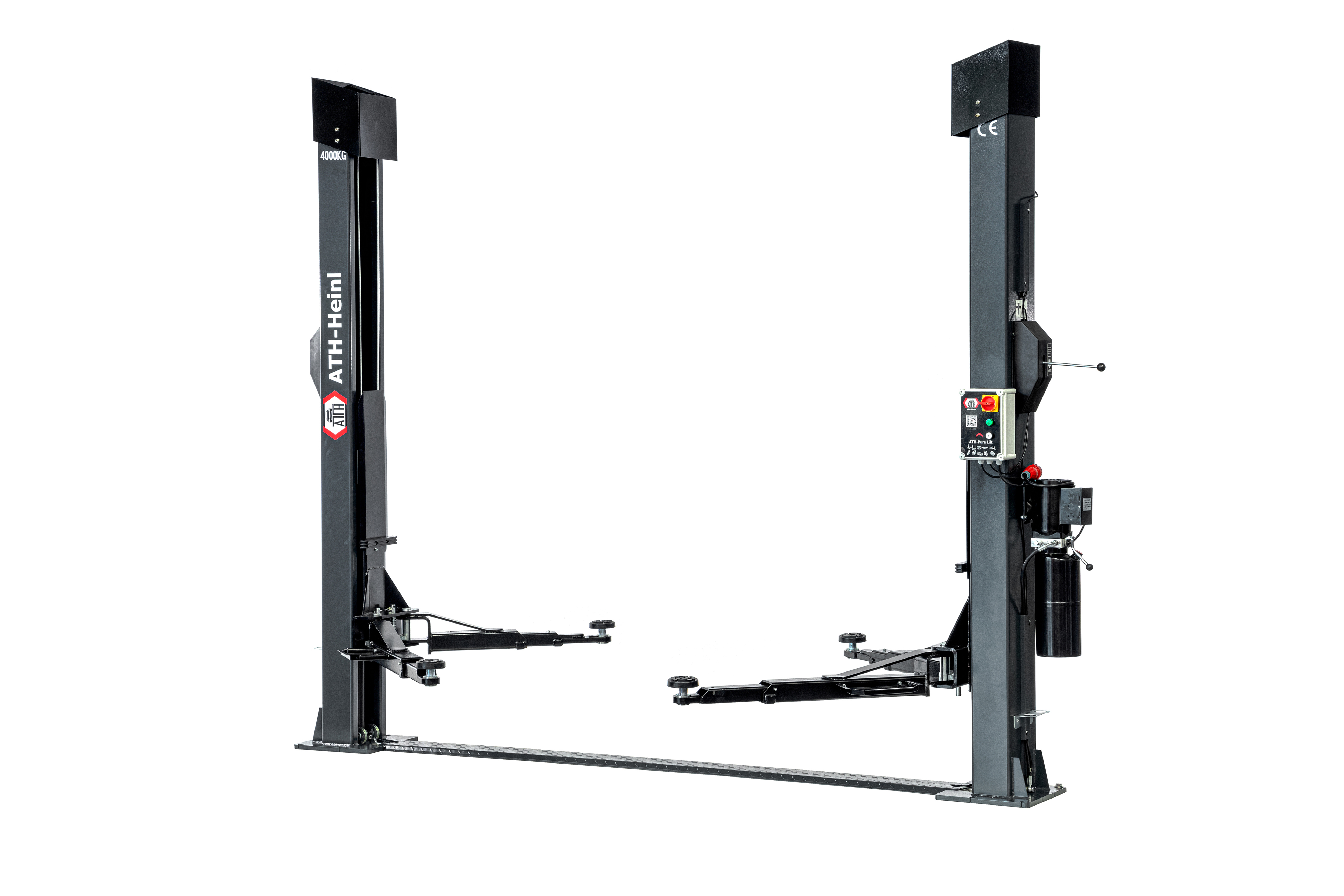

ATH Pure Lift 2.40 230V
€2,348.74
plus assembly and freight
€2,795.00
Availability:
In stock
SKU
622162
- High quality and robust electro-hydraulic 2-post lift
- Very low drive-over plate (height = approx. 20 mm) for comfortable work

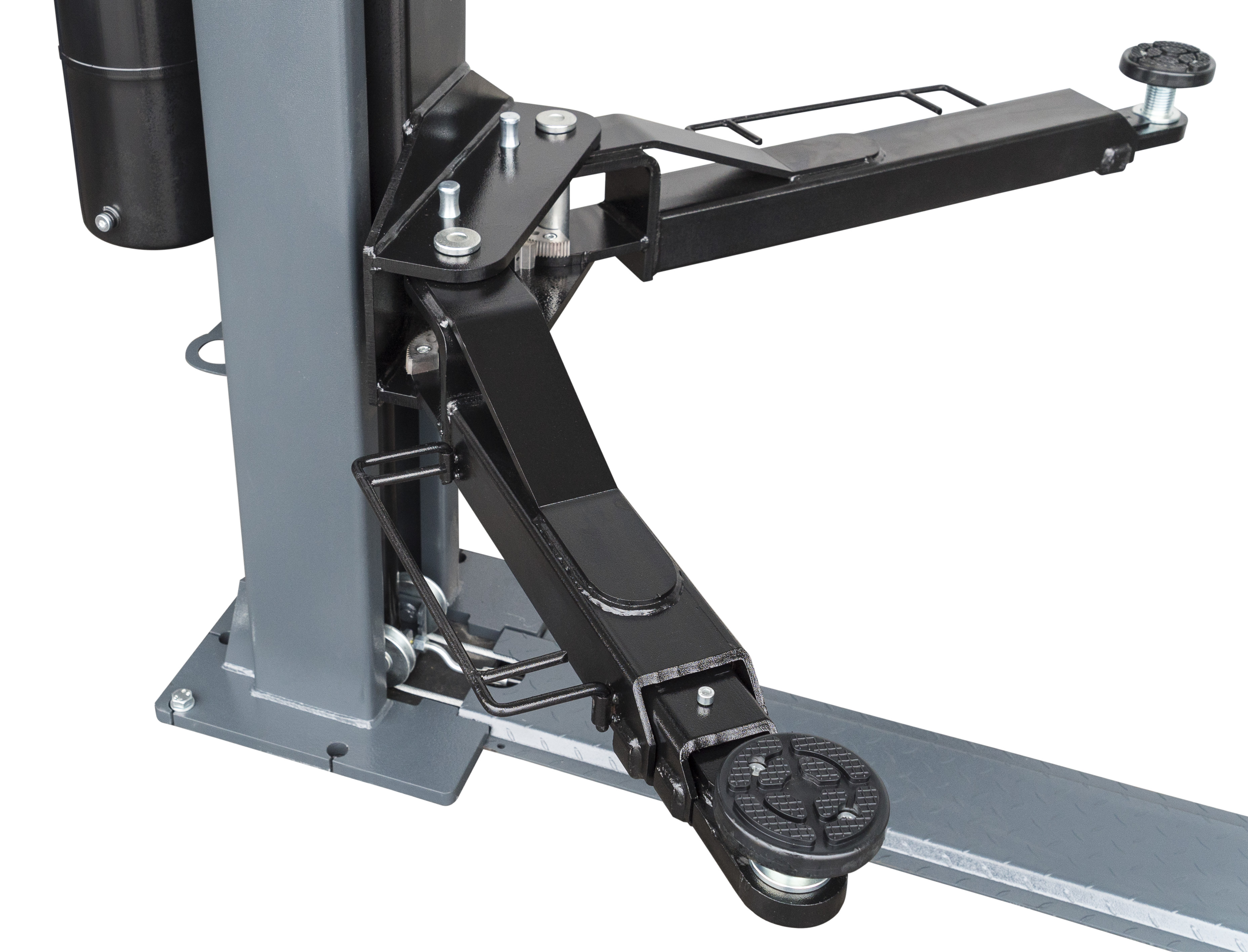

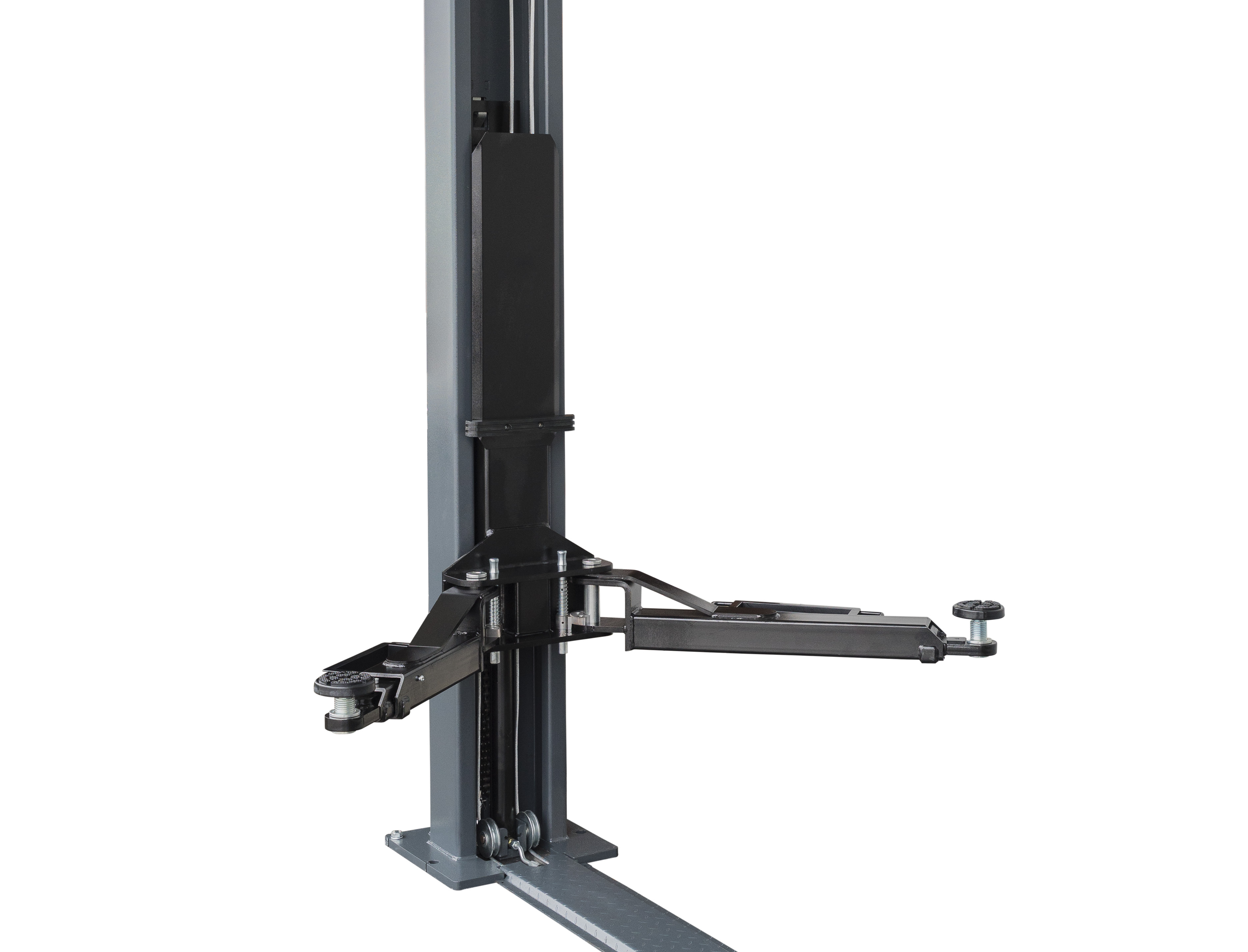

- Multifunctional mounting through telescopic support arms
- Double telescopic support plate (90-180 mm) with anti-twist protection

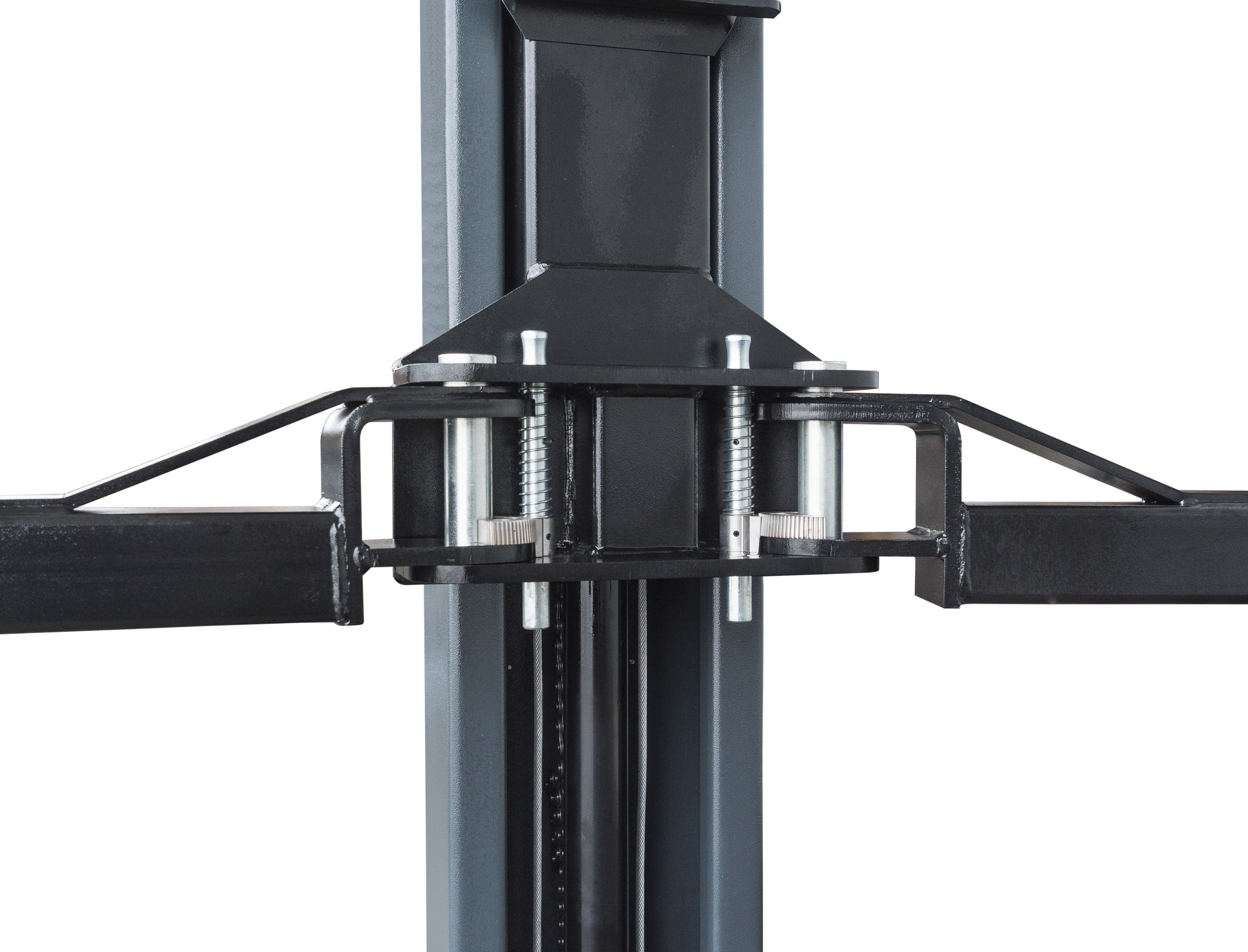

- Automatic and self-centering arm lock
- Powder-coated lifting platform in modern anthracite gray
- Mechanical unlocking of the safety locks with manual lowering valve (central one-hand unlocking)
| Rated load capacity | 4.000 kg |
|---|---|
| Lifting height max. | 1.900 mm |
| Drive-through width | 2.600 mm |
| Overall width | 3.455 mm |
| Overall height | 3.320 mm |
| Support arms parts | 3 | 2 |
| Driving power | 2,2 kW |
| Lifting/Lowering time | ca. 45 s / 35 s |
| Power supply voltage | 230V / C16A |
| Concrete strength | min. C20/25 4.000 x 2.000 x 200 mm |
