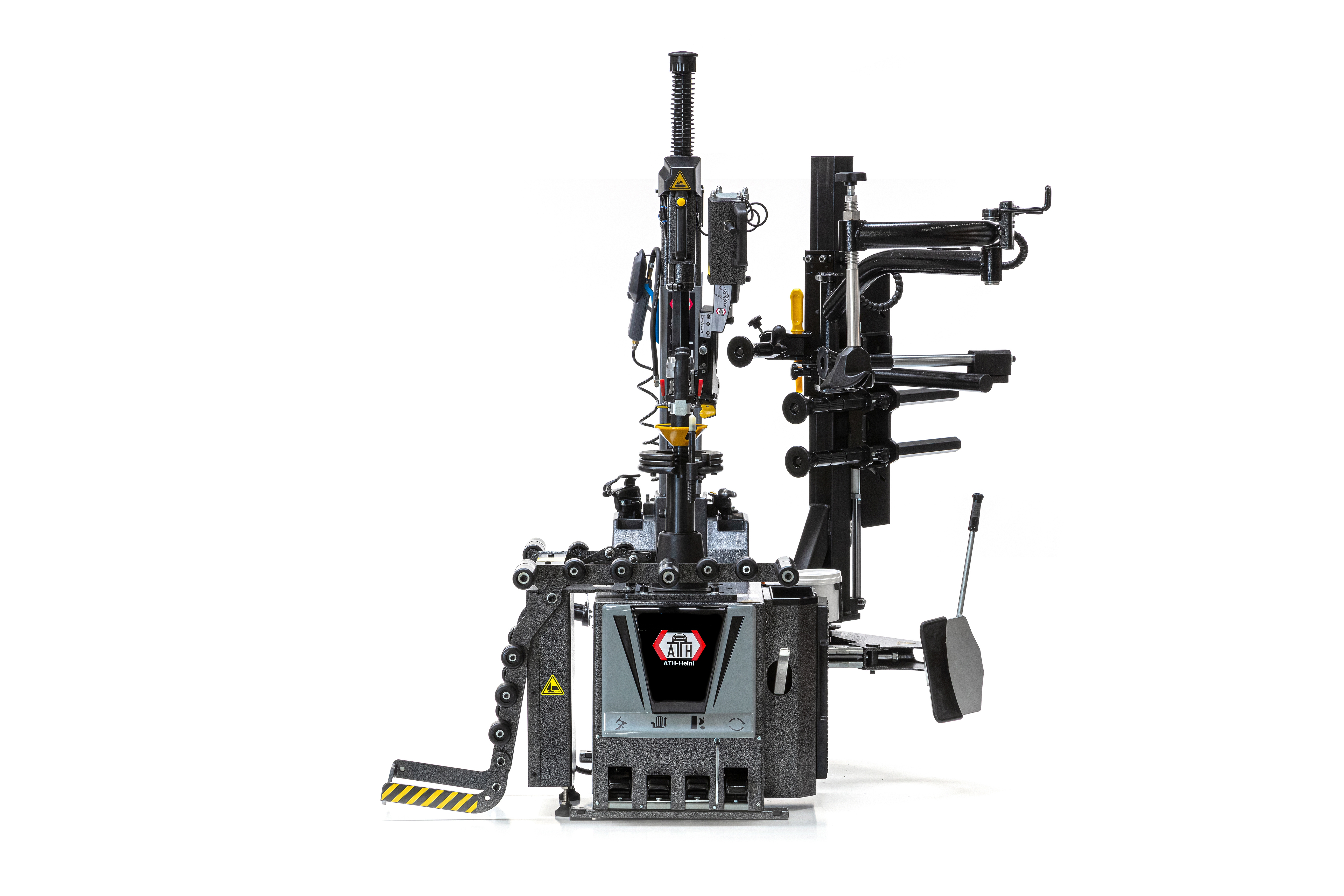

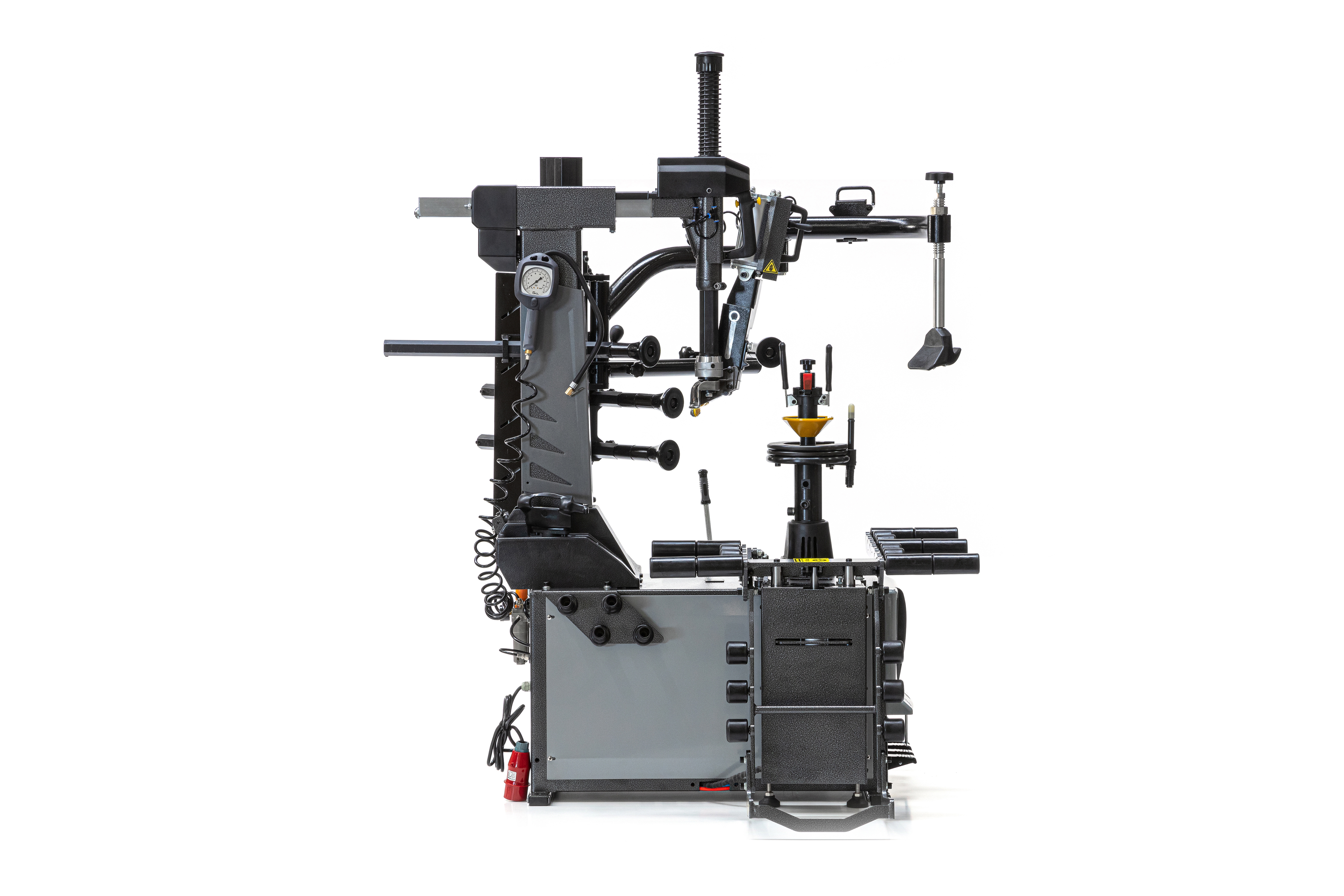

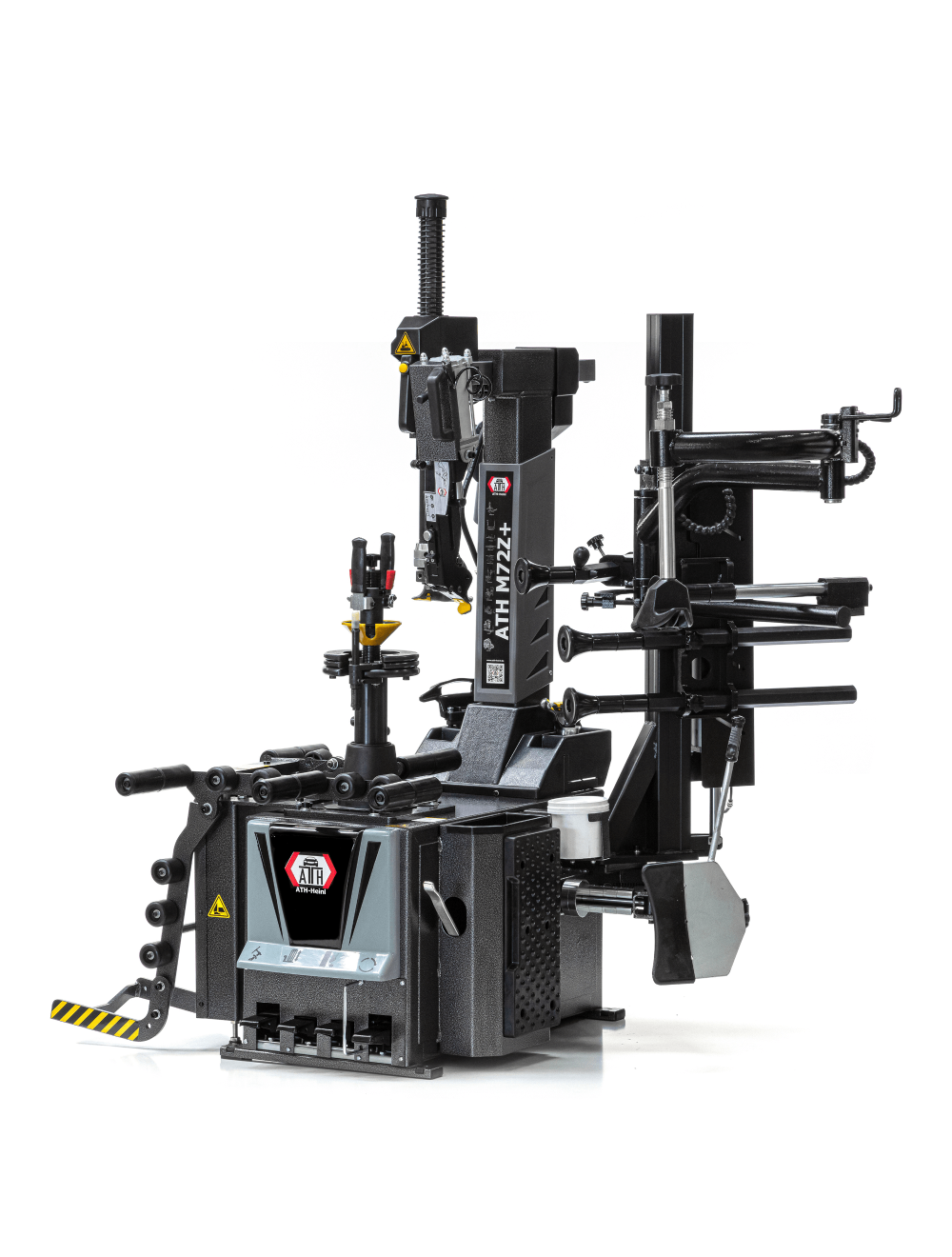

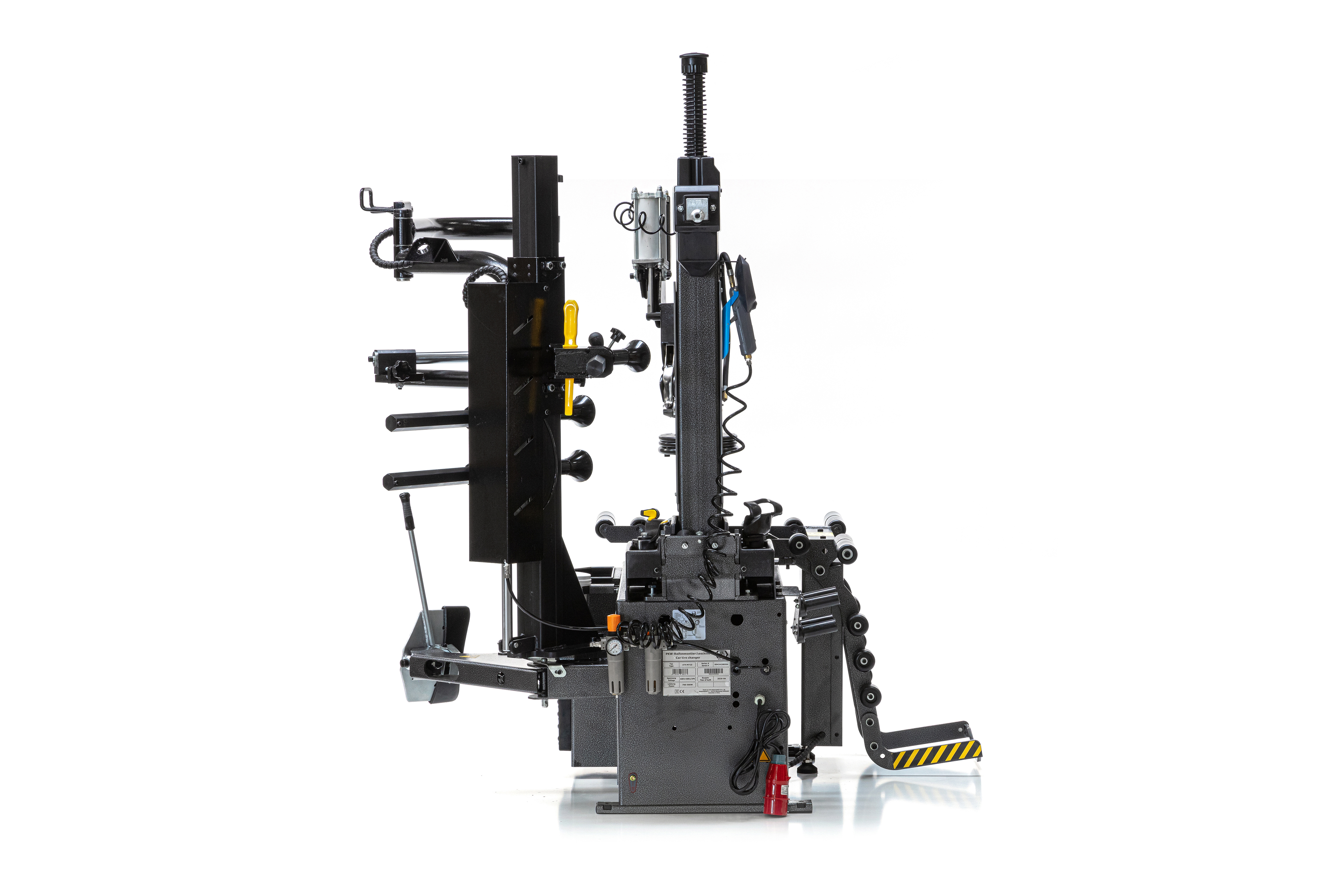

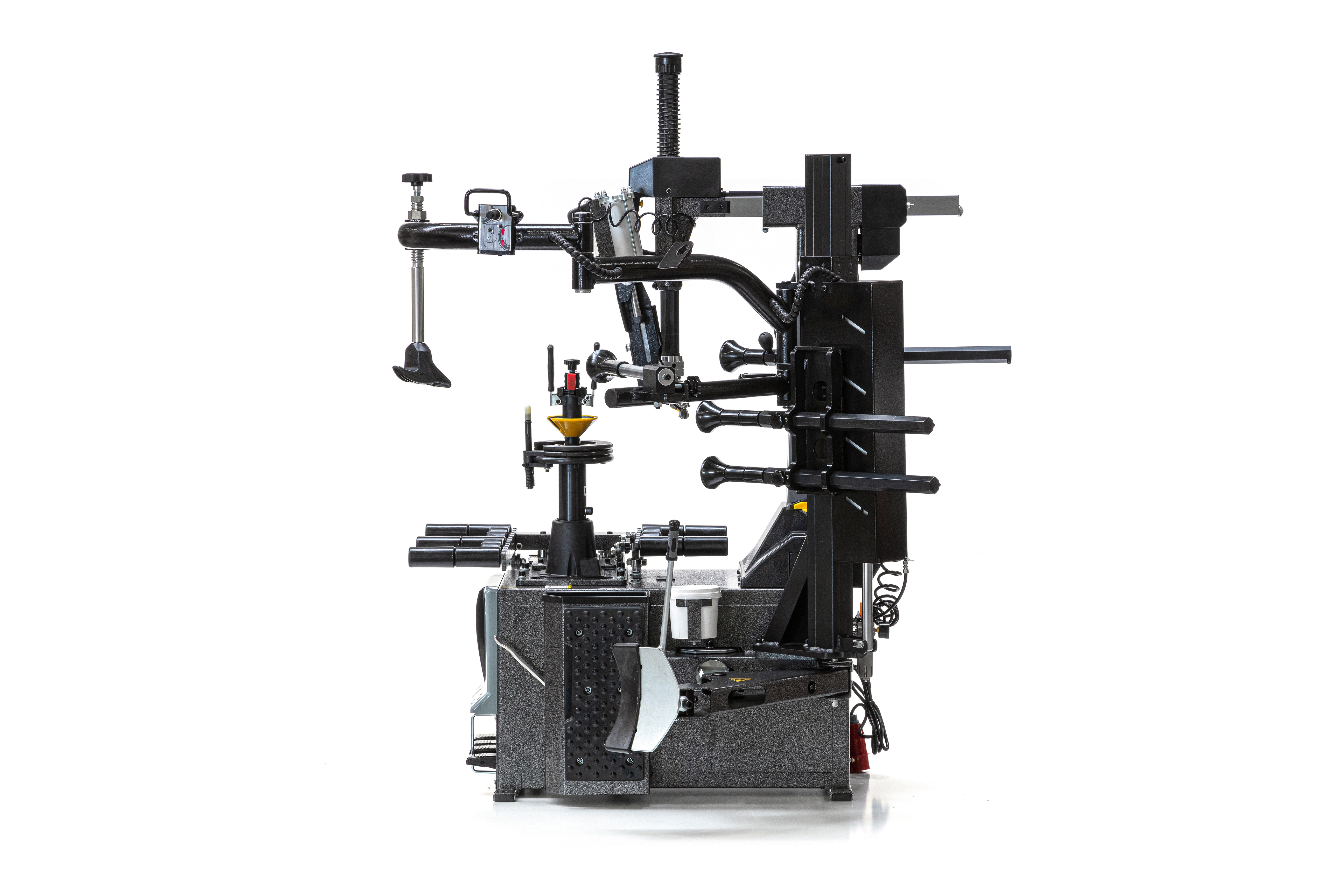

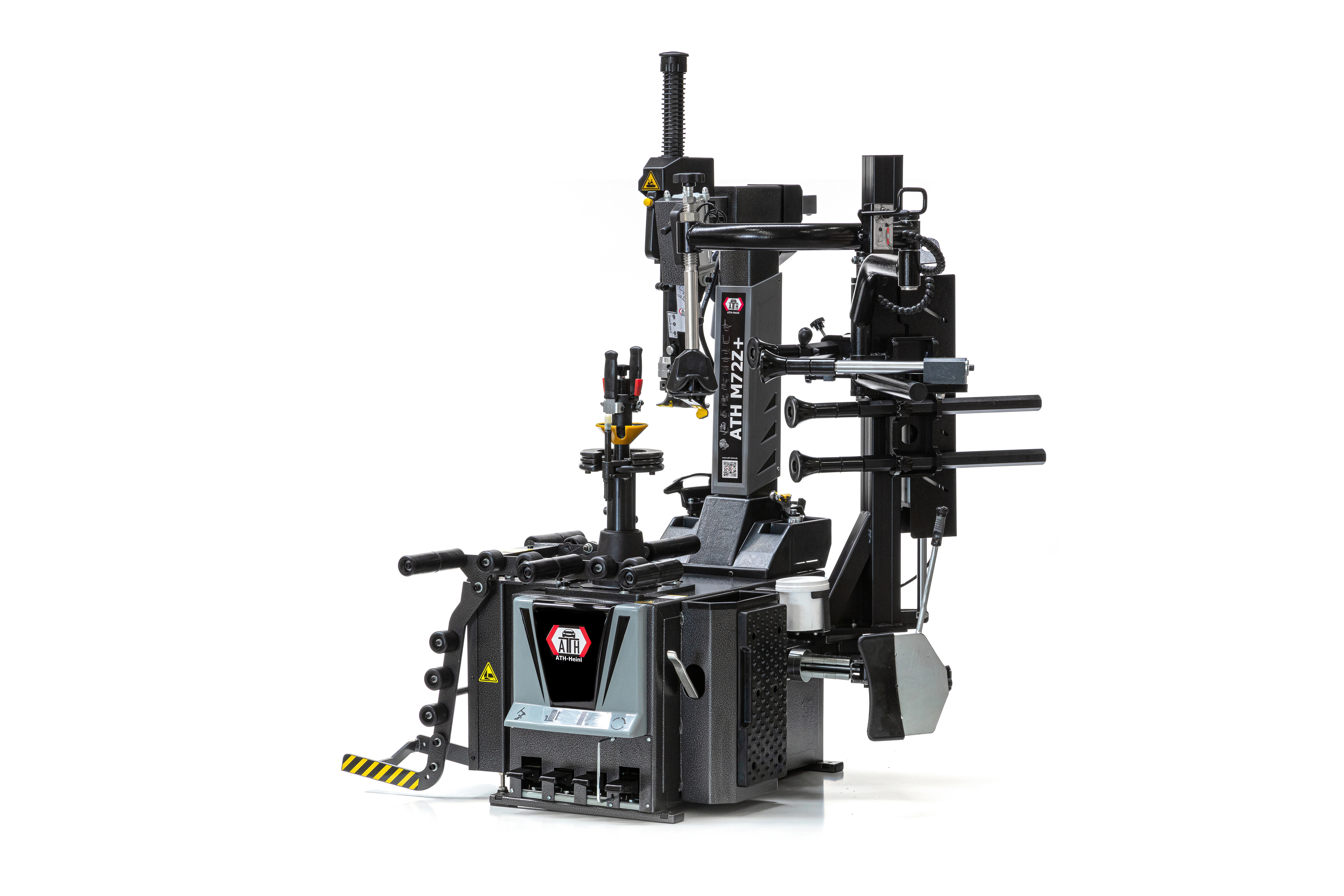

ATH M72Z PLUS
€5,457.98
plus assembly and freight
€6,495.00
Availability:
In stock
SKU
151038.30

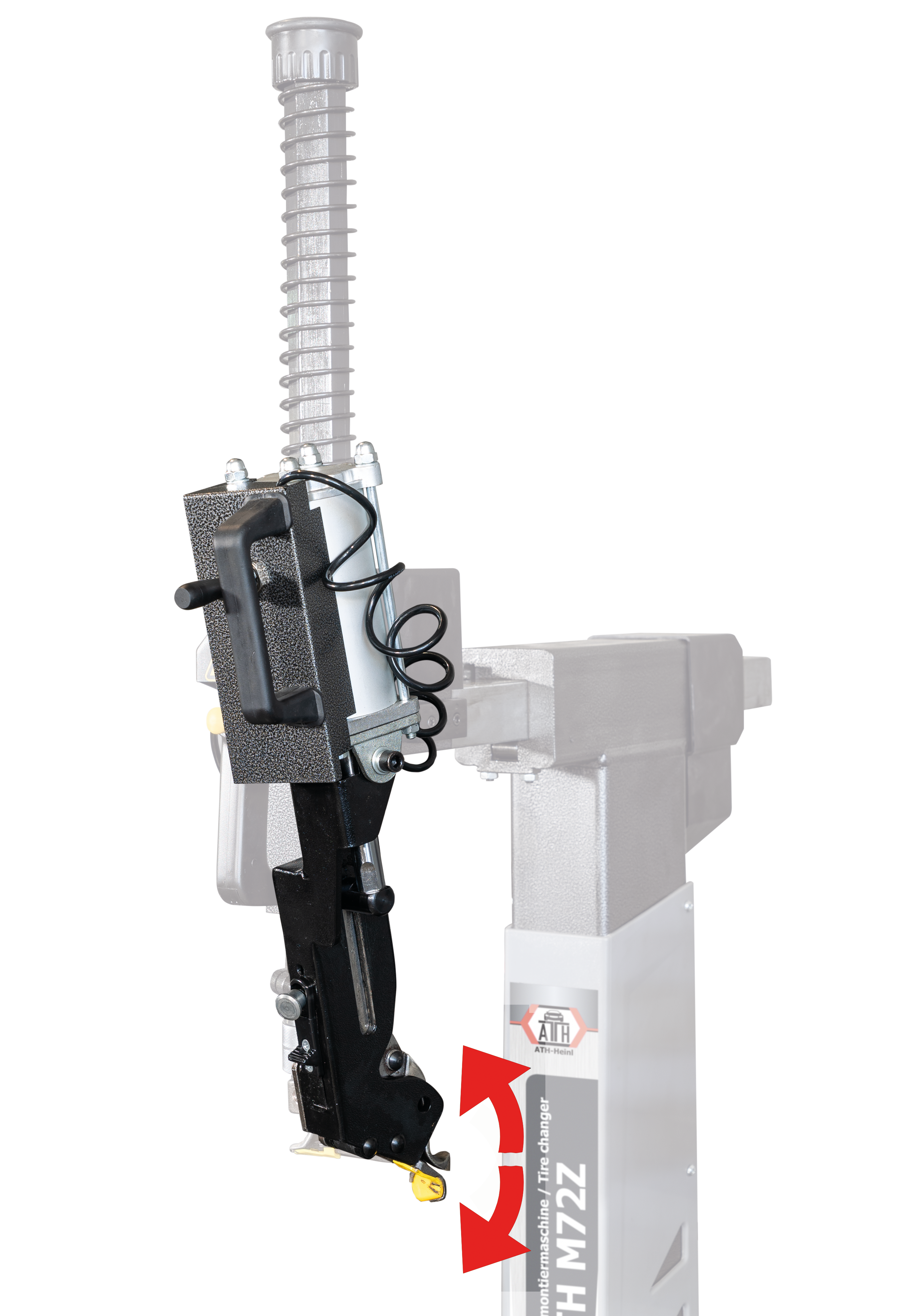

- Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
- Control via ergonomically arranged foot pedals

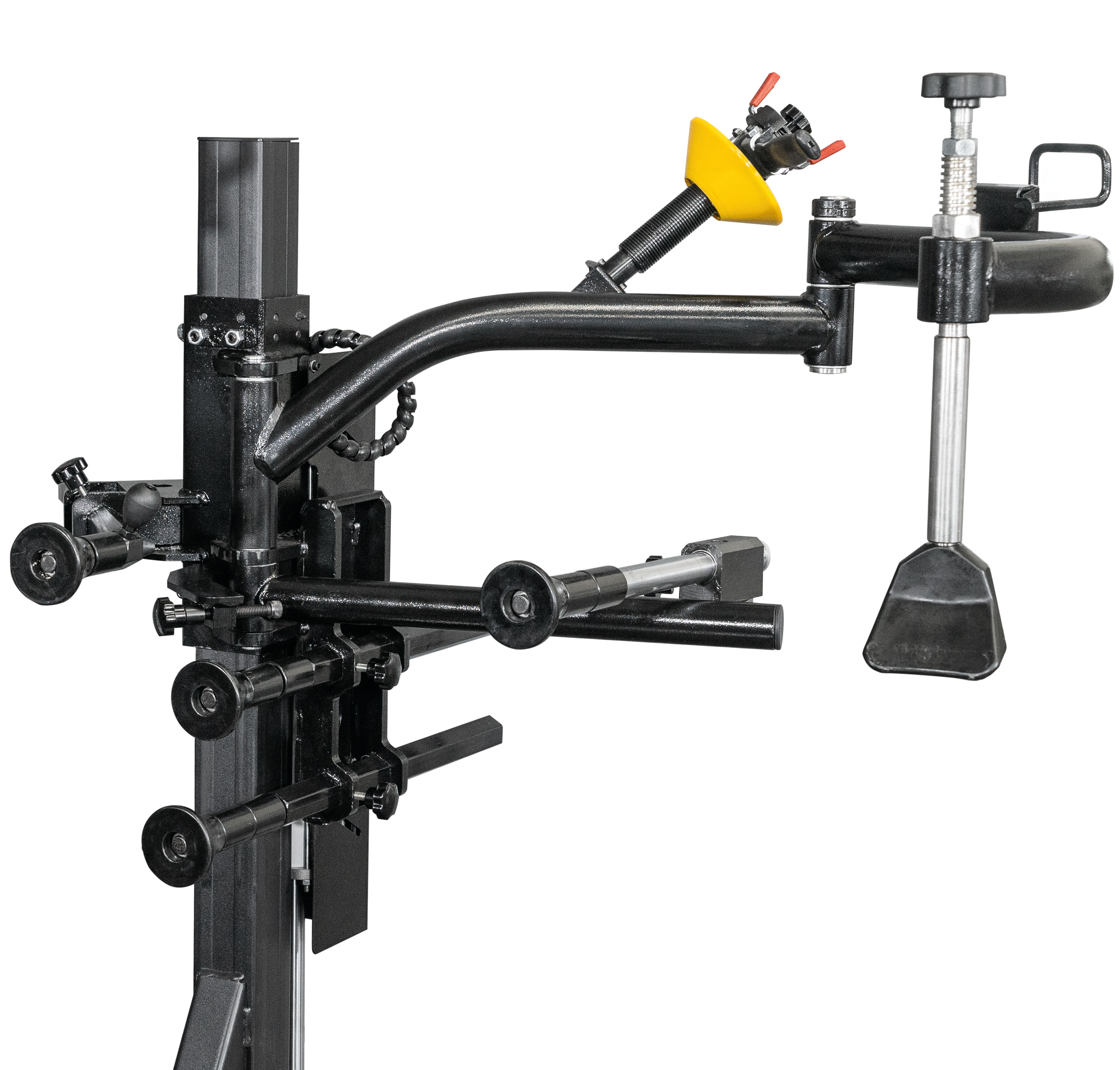

- Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
- Height-adjustable center hole mounting with use of a clamping flange and quick-release nut
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system

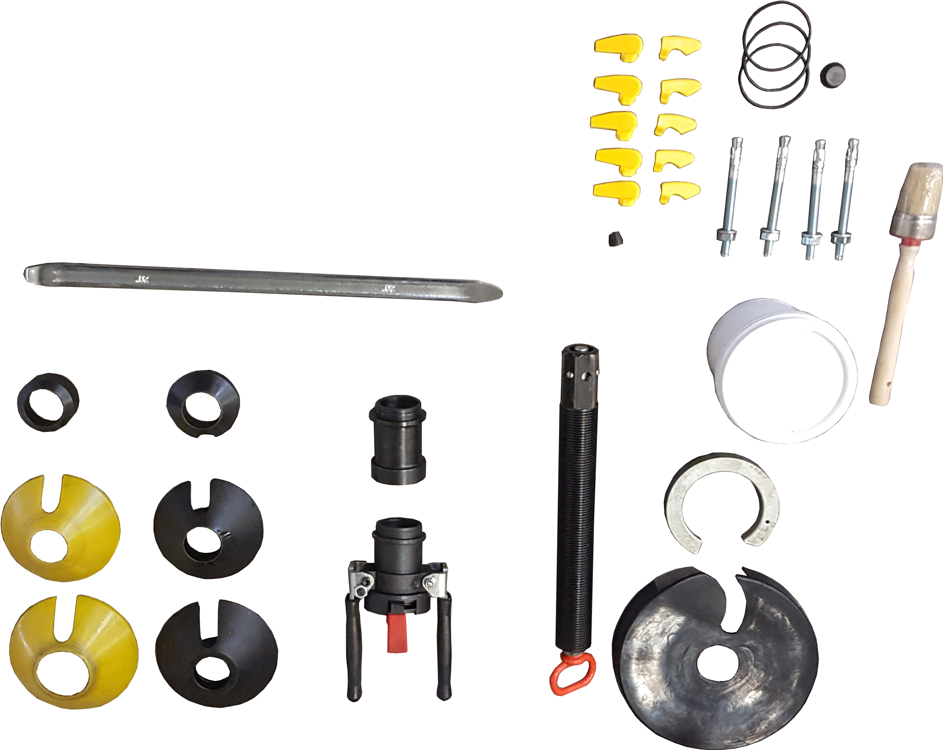

- Including wheel lift, quick release tool, pneumatic assembly tool and WDK kit
| Rim diameter max. | 12 - 26 " |
|---|---|
| Rim width | 4 – 13 " |
| Max. wheel diameter | 1.050 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 83 – 350 mm |
| Bead breaker force | 2.500 kg |
| Mounting speeds | 6 and 12 U/min |
| Driving power | 0,75 / 0,90 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 70 dB(A) |
