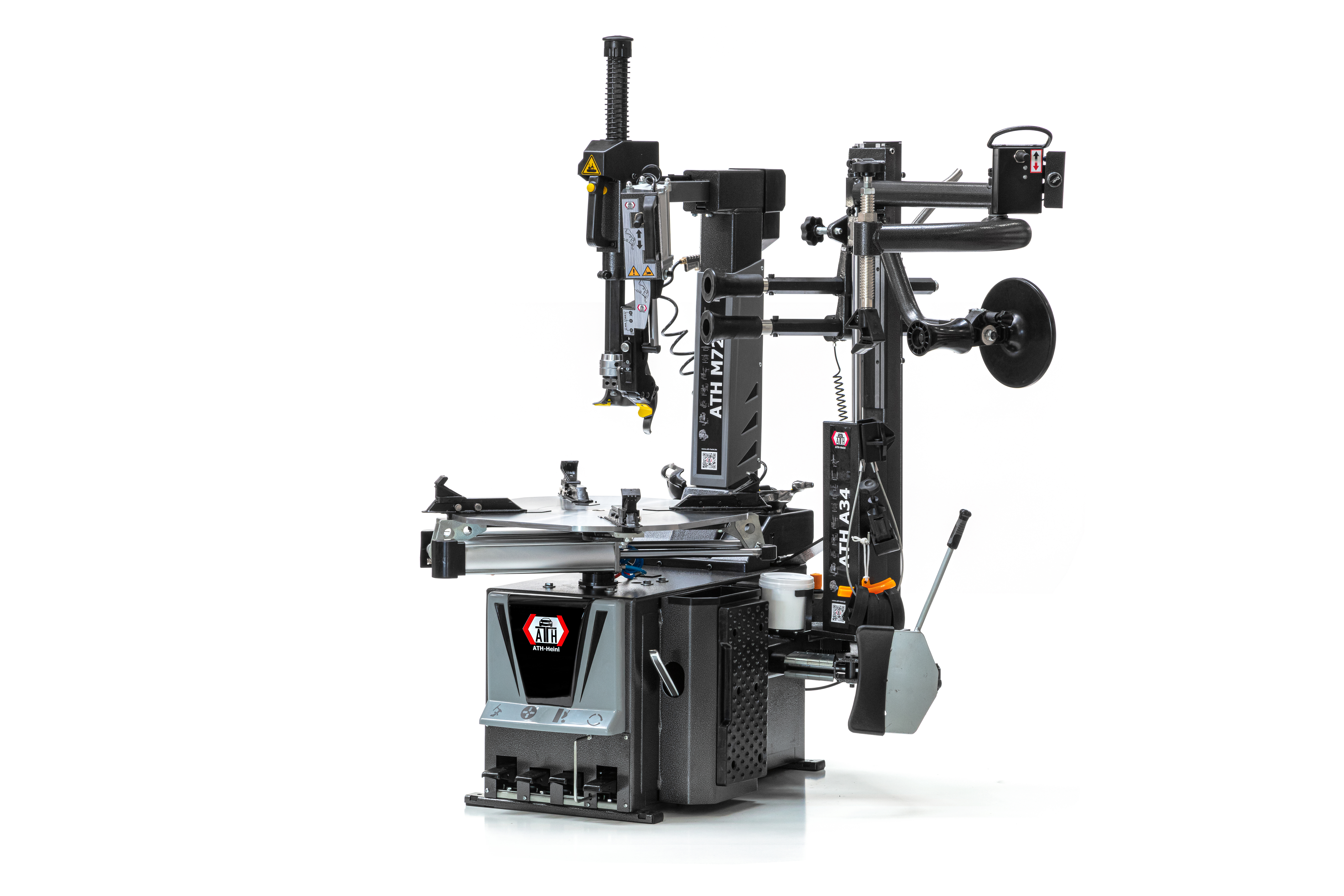

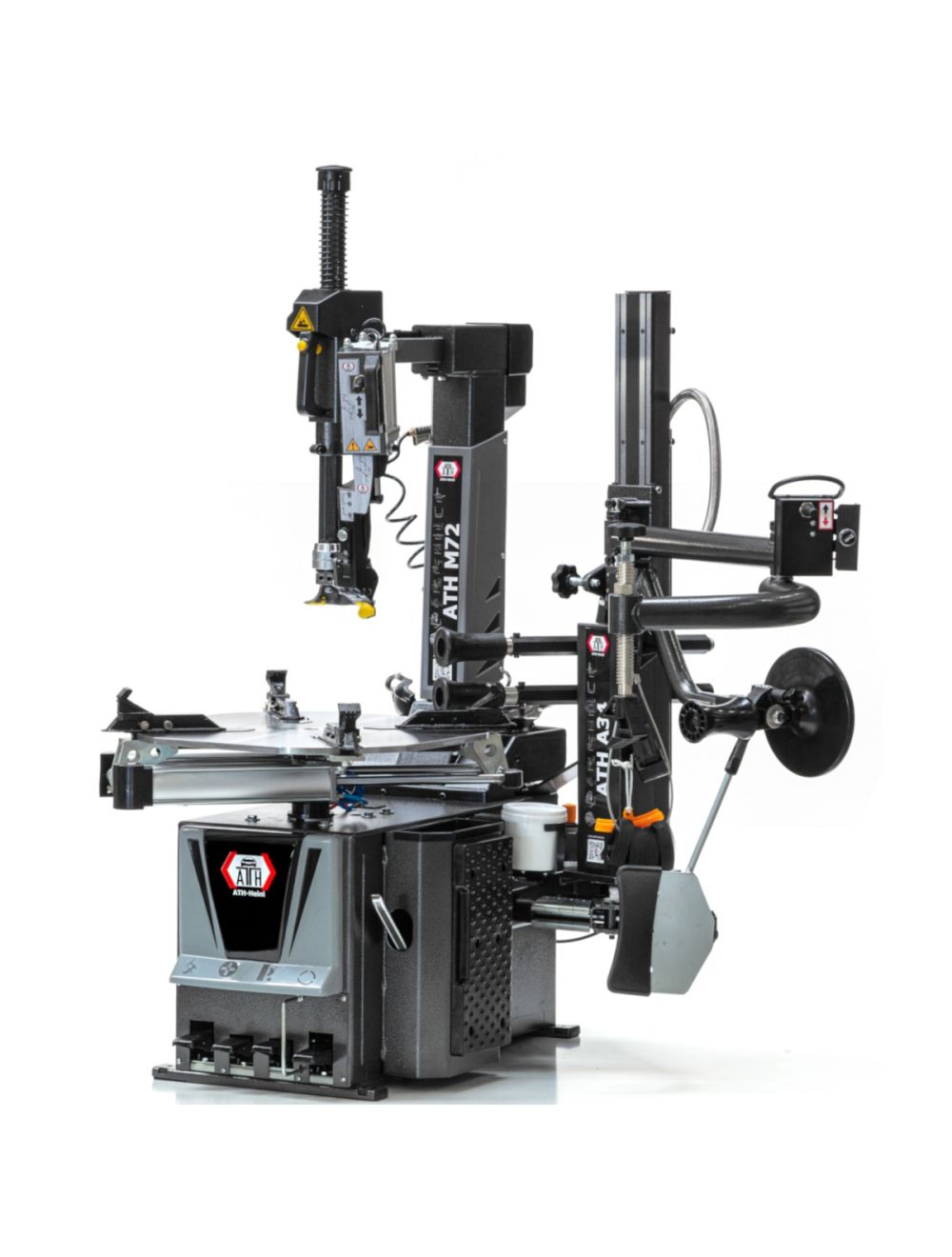

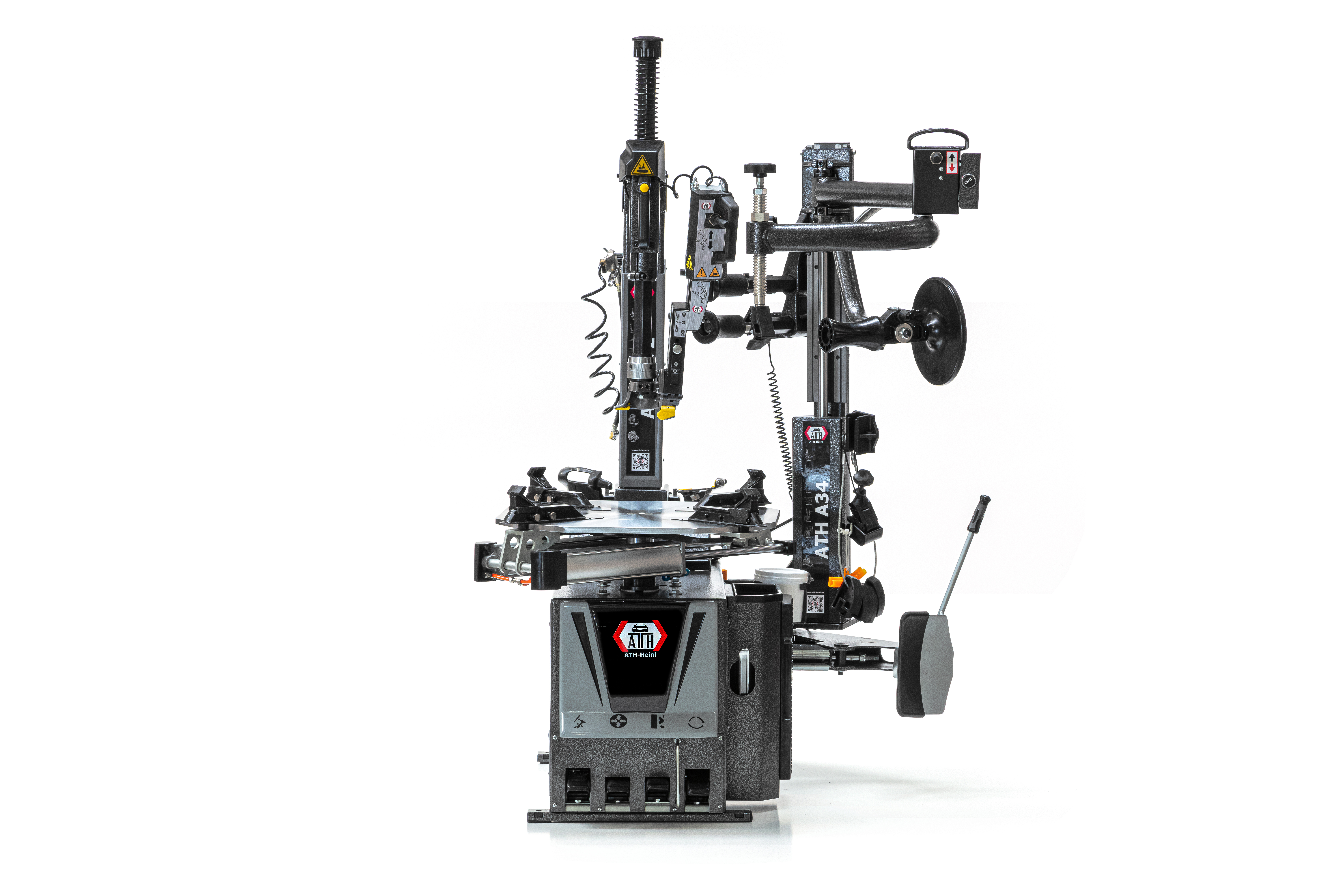

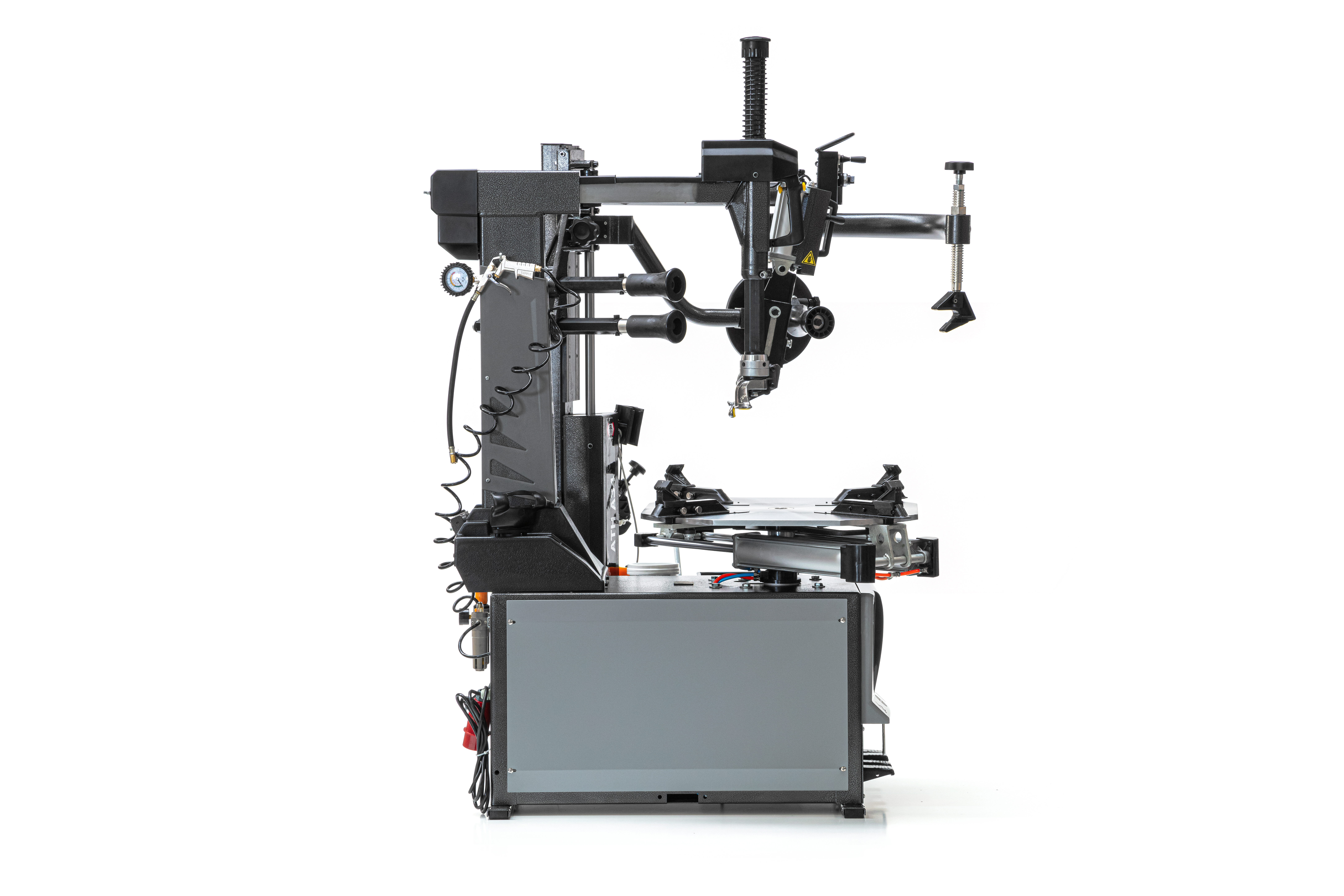

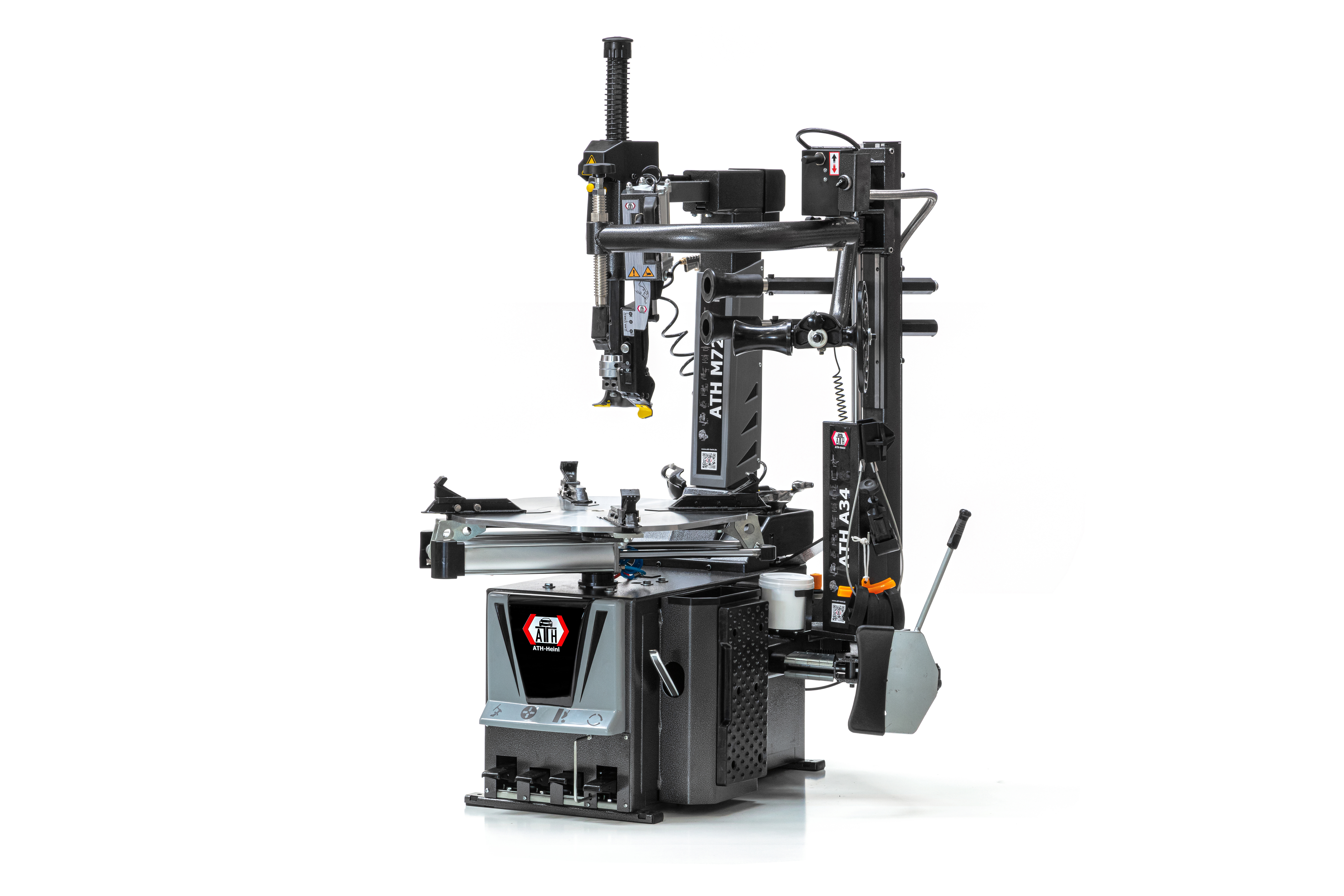

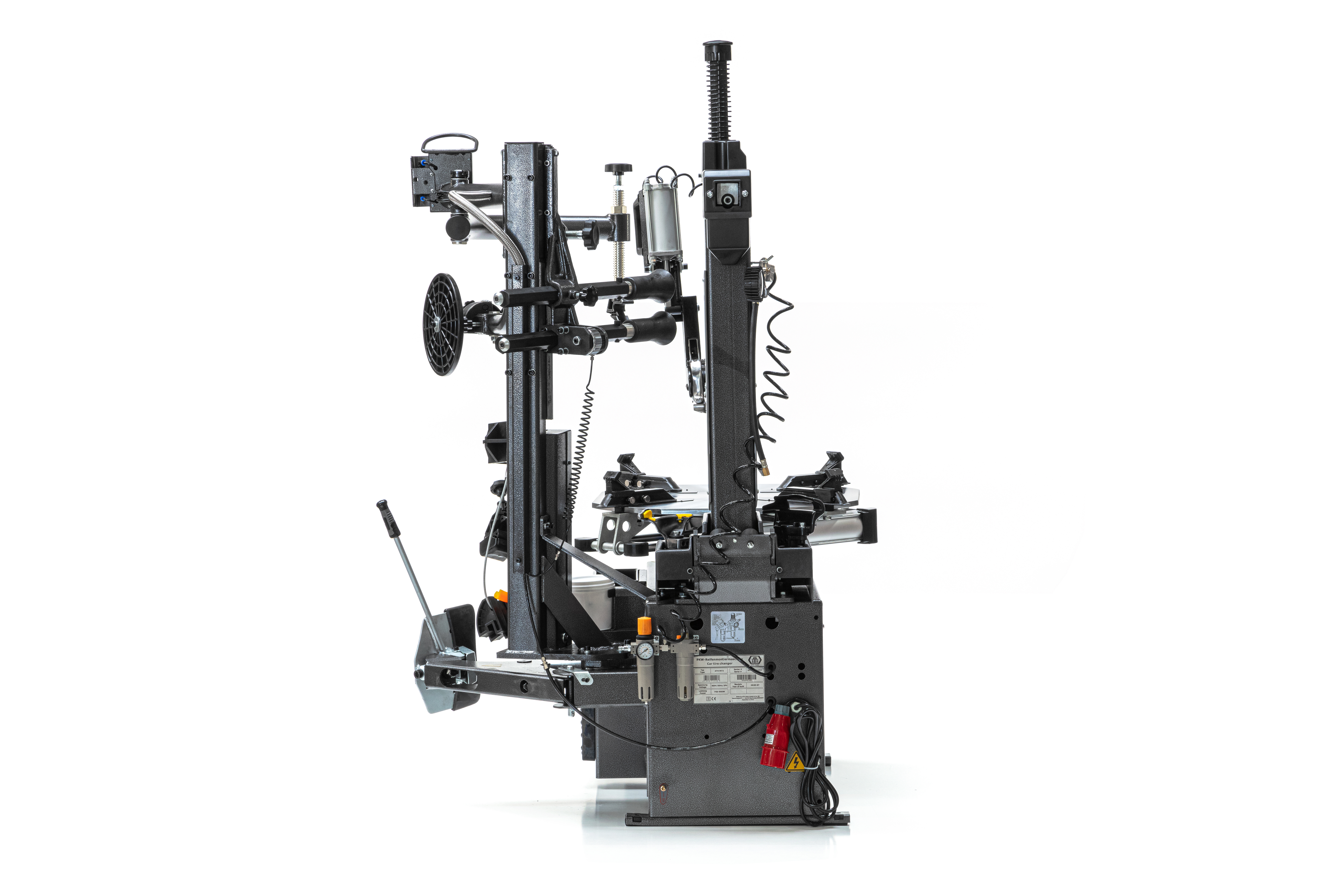

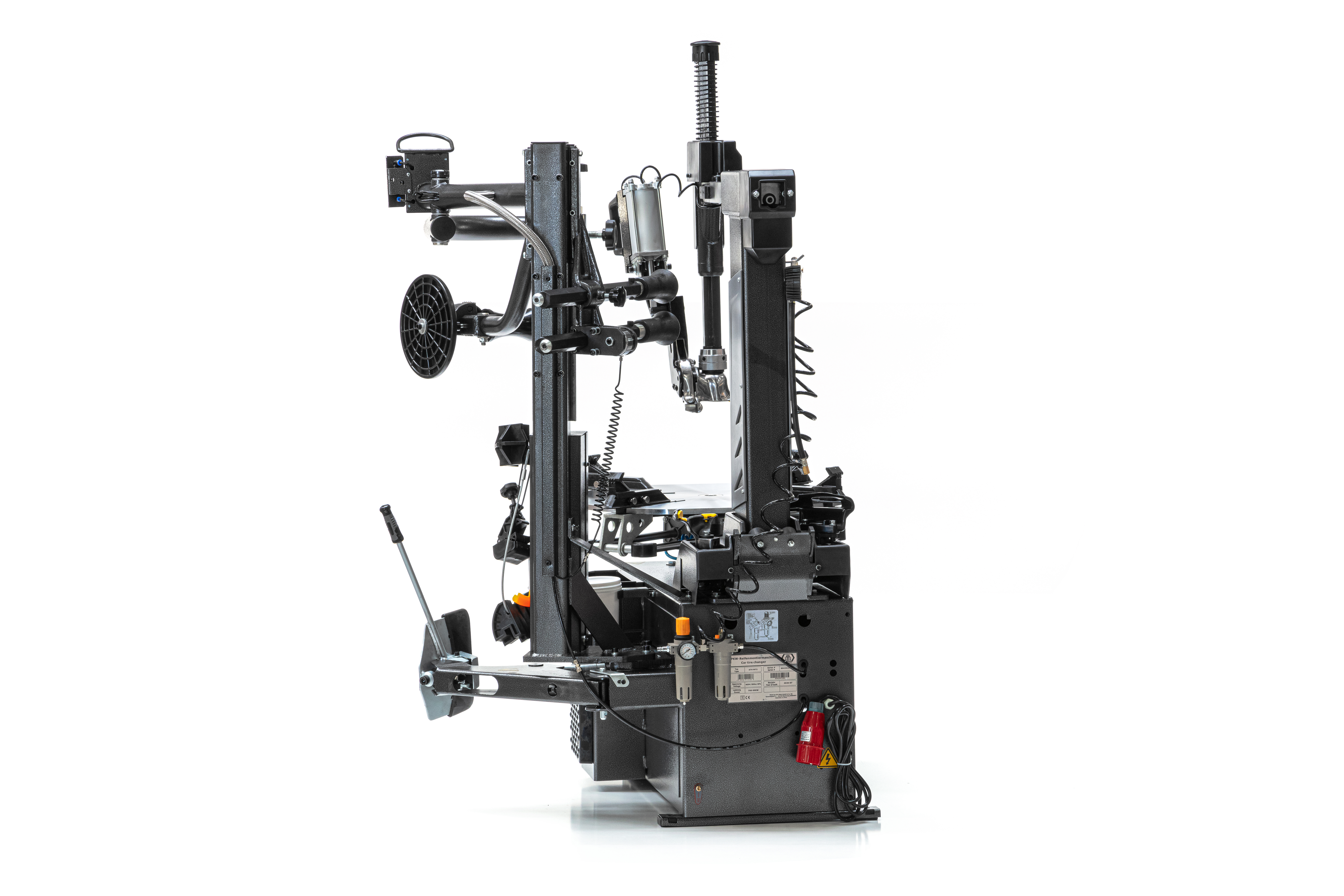

ATH M72 + A34 Plus WDK
€4,449.58
plus assembly and freight
€5,295.00
Availability:
In stock
SKU
151078

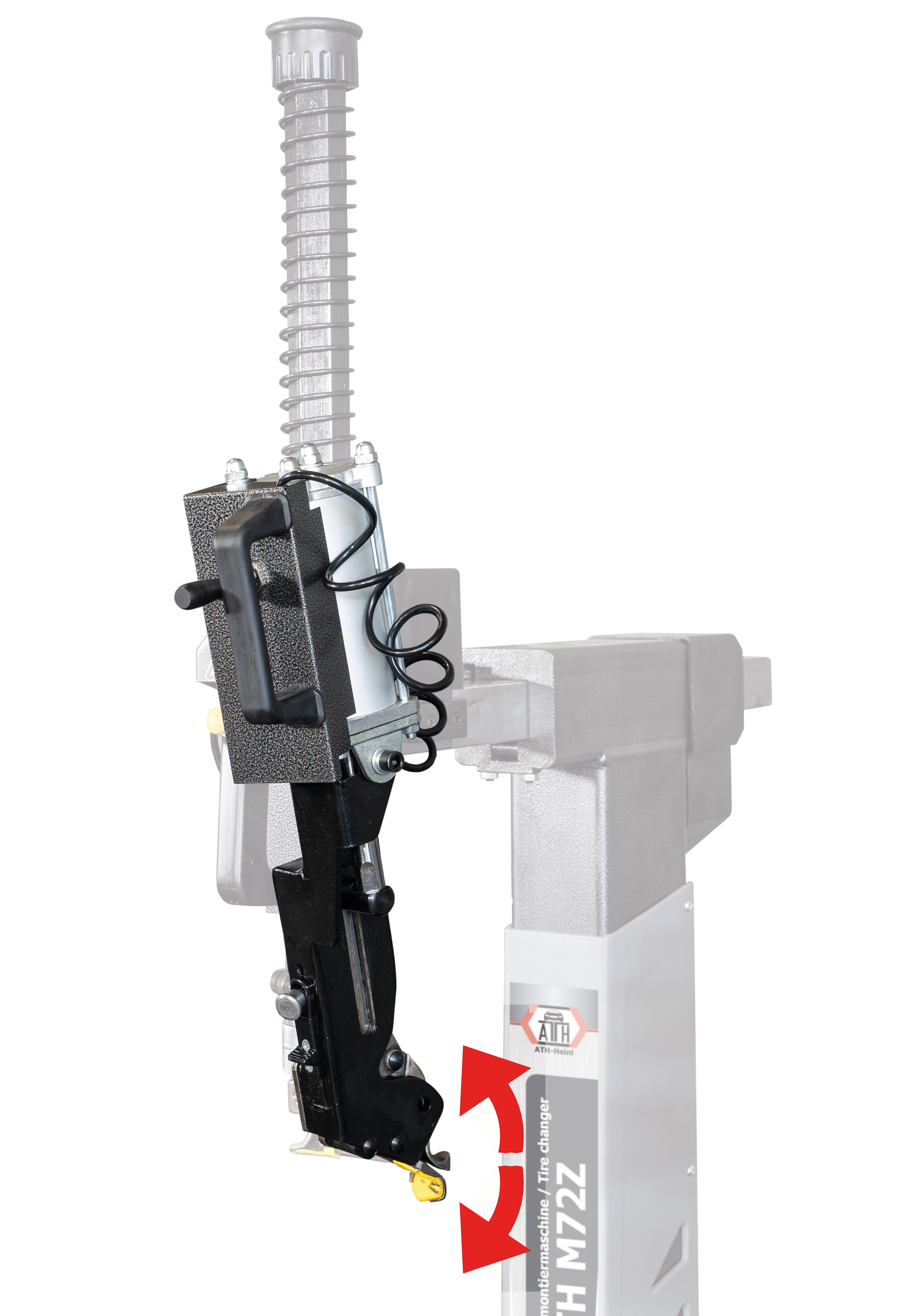

- Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal Rim removal
- Control via ergonomically arranged foot pedals

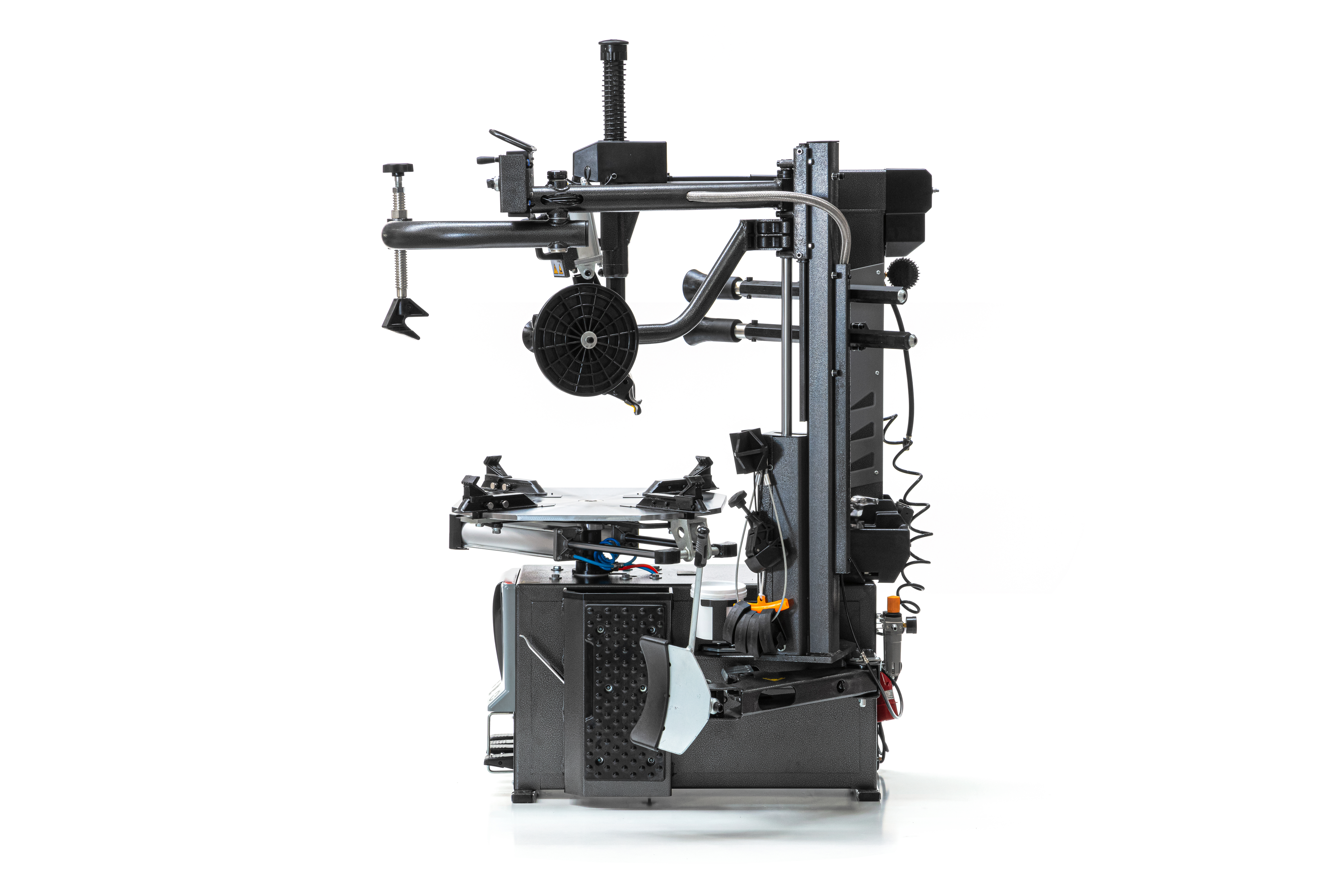

- Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
- Self-centering, pre-adjustable 4-jaw system, 3-fold quick adjustment
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system

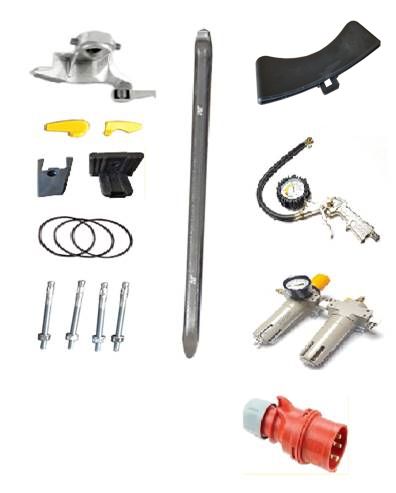

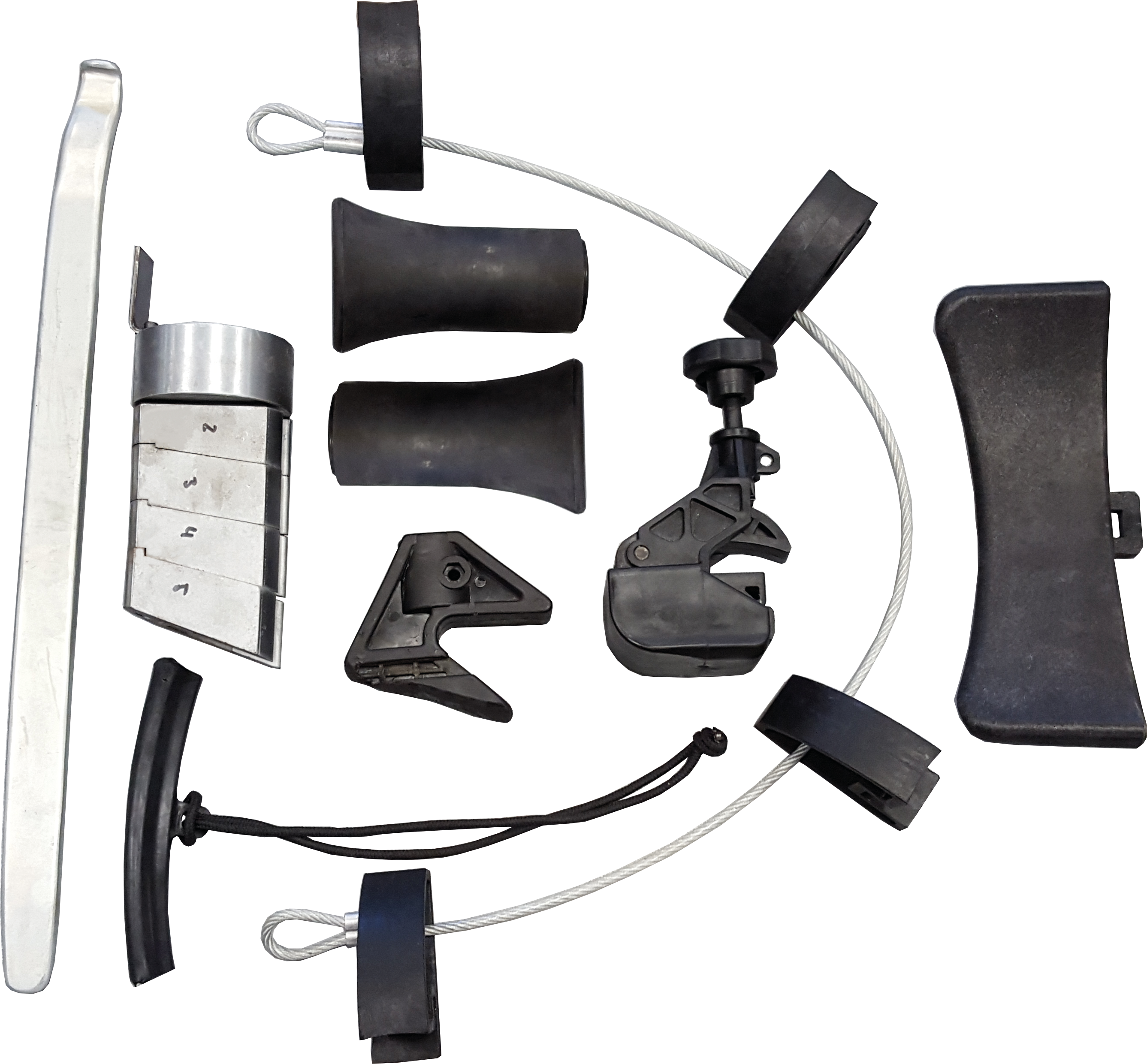

- Including quick-release tool, pneumatic assembly finger and WDK kit

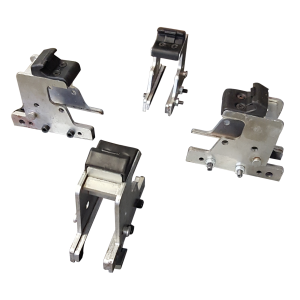

- Ideally suited for car tires, with optional accessories also for motorcycle bikes
| Clamping range inner / outer | 11 – 30 " / 9 – 26 " |
|---|---|
| Rim width | 4 – 13 " |
| Max. wheel diameter | 1.050 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 83 – 350 mm |
| Bead breaker force | 2.500 kg |
| Mounting speeds | 6 and 12 U/min |
| Driving power | 0,75 / 0,90 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 70 dB(A) |
