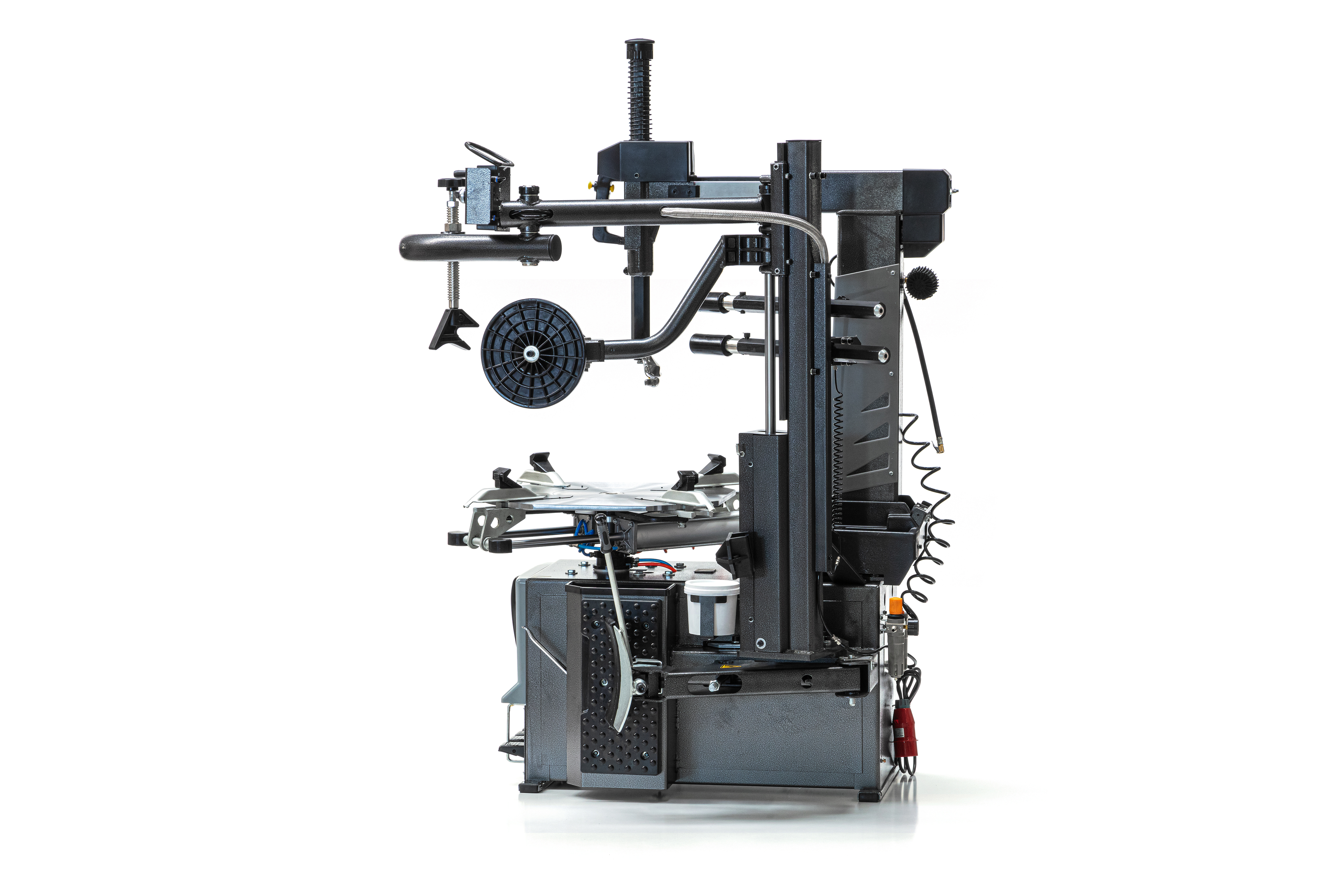

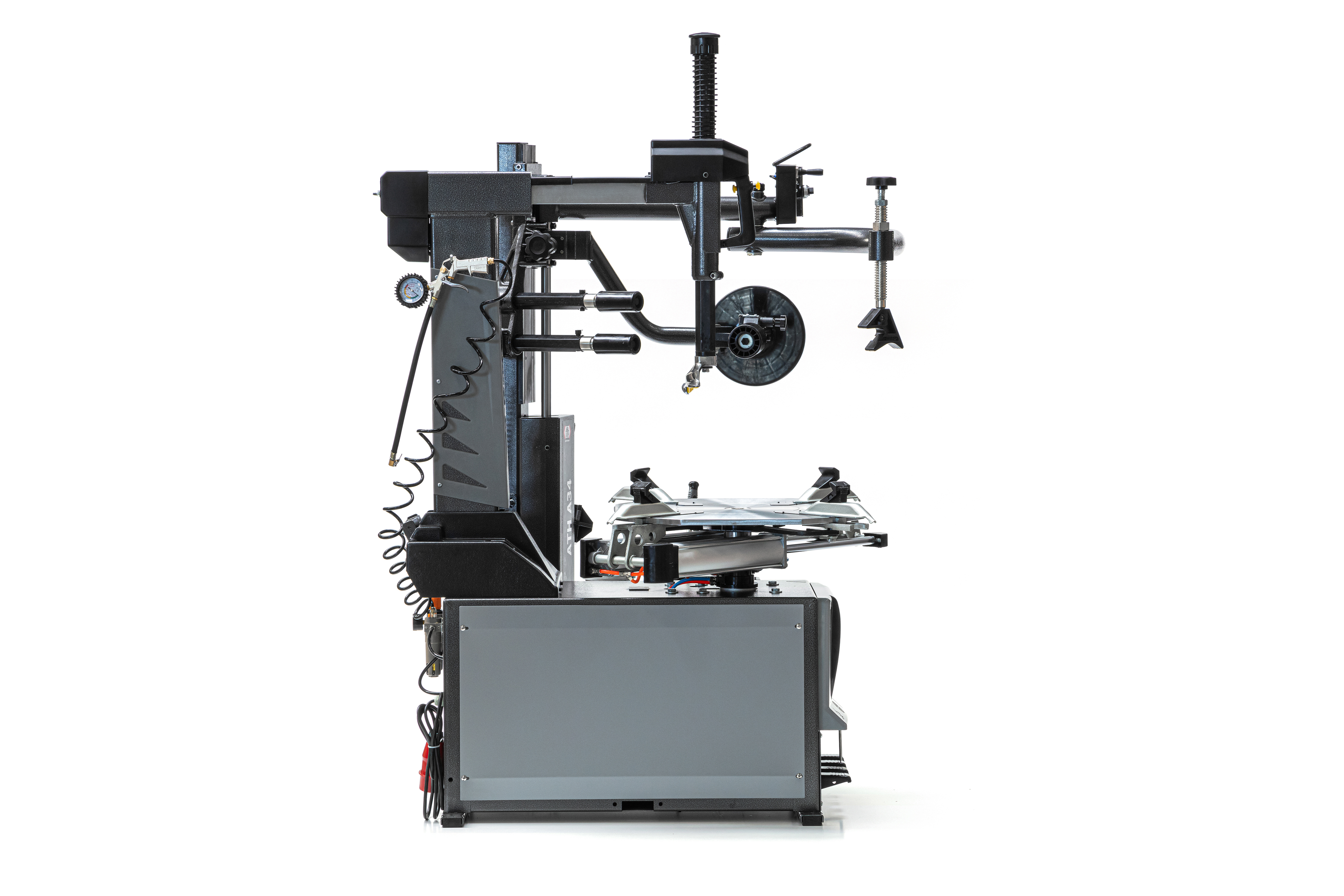

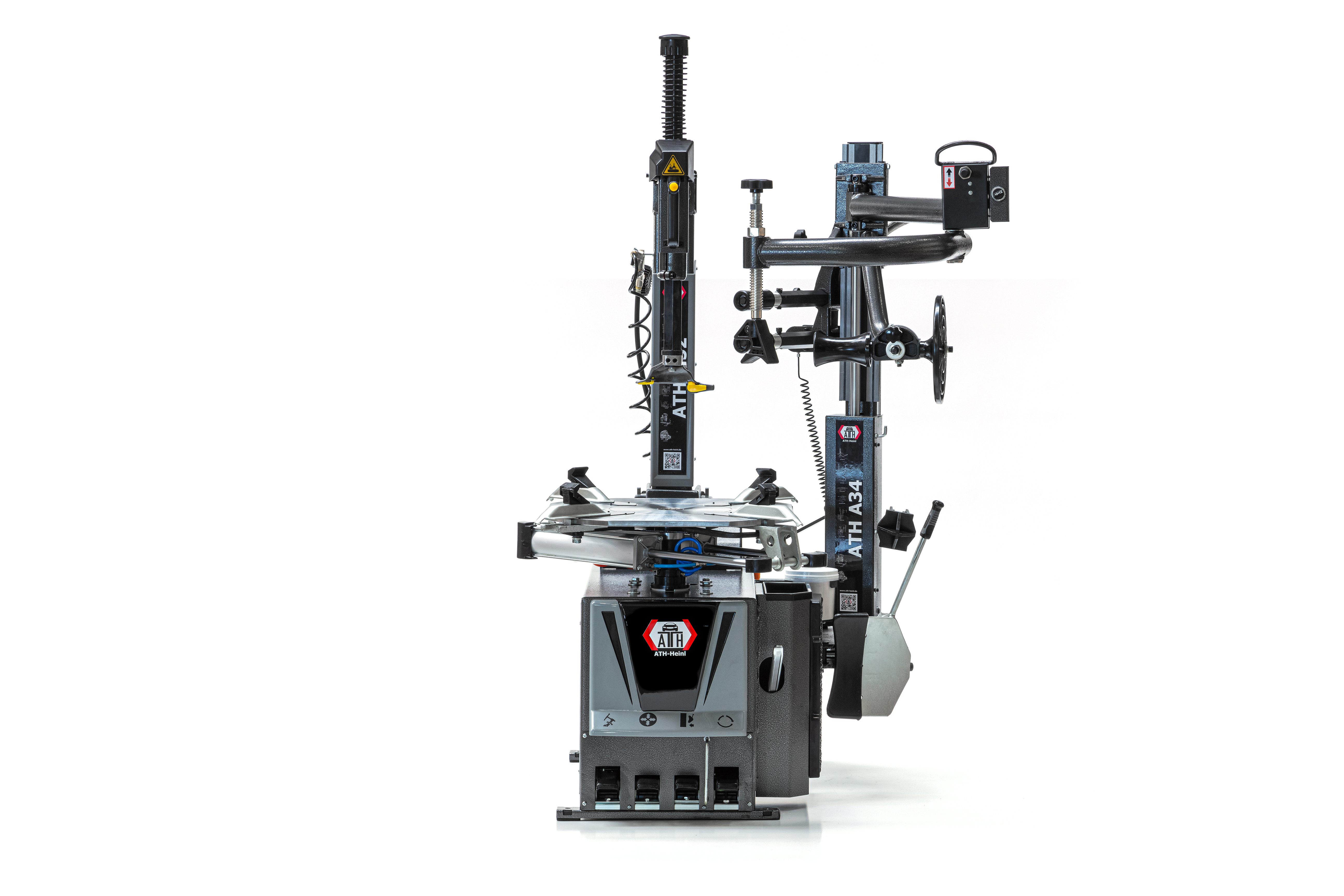

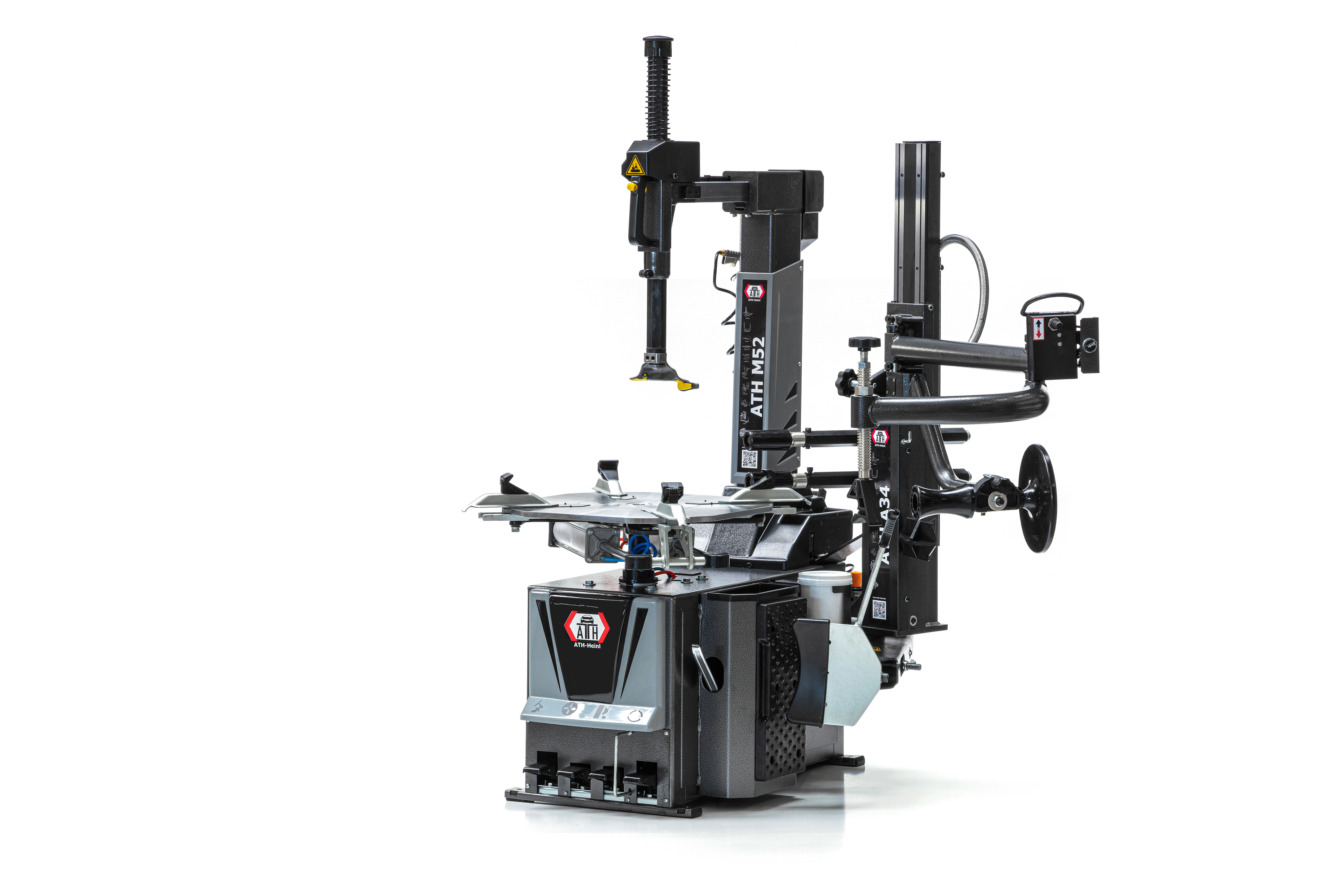

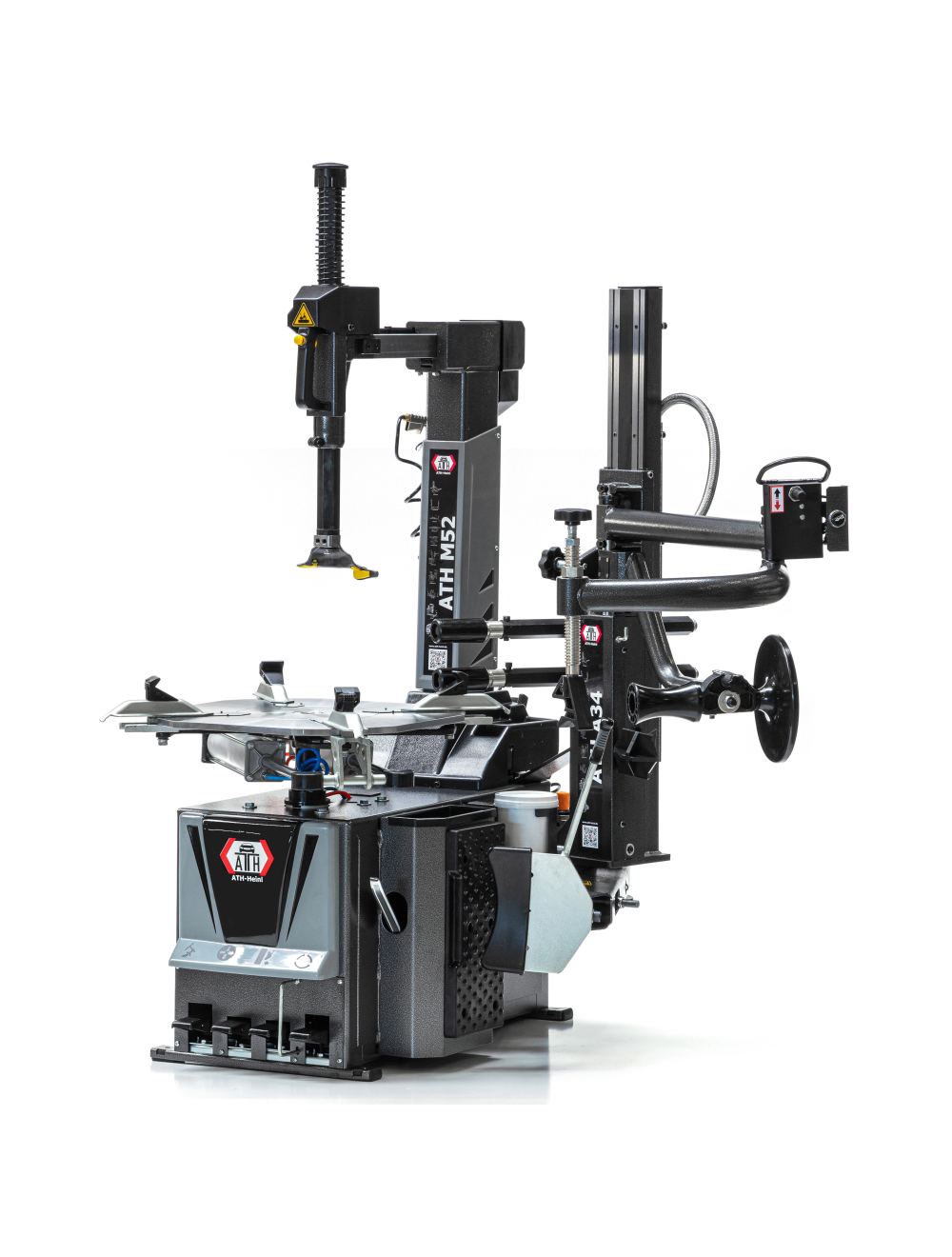

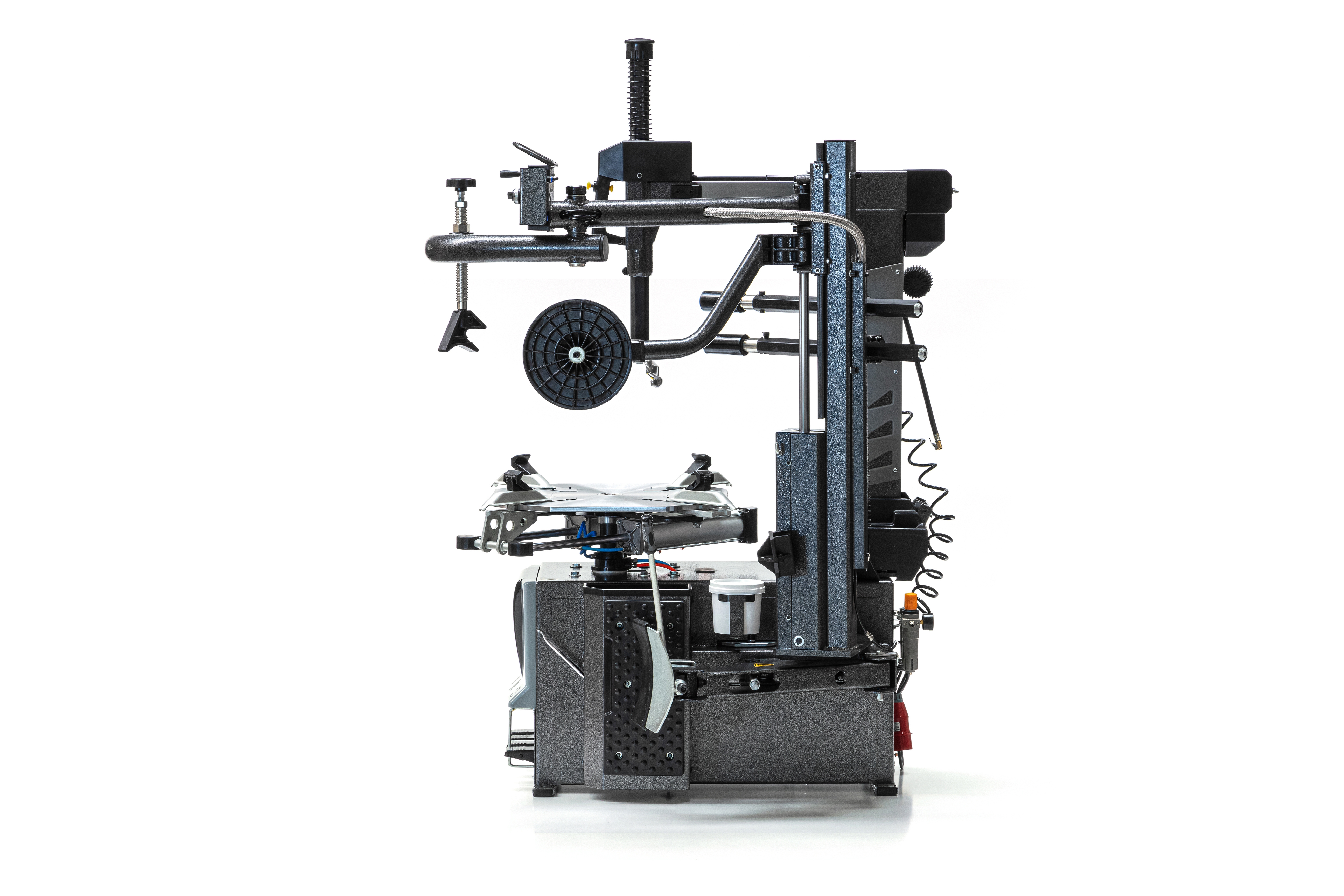

ATH M52 + A34
€3,273.11
plus assembly and freight
€3,895.00
Availability:
In stock
SKU
151071.01
- Rear swivel with pneumatic clamping mounting head, including automatic vertical and horizontal rim removal
- Control via ergonomically arranged foot pedals

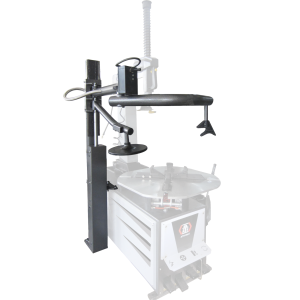

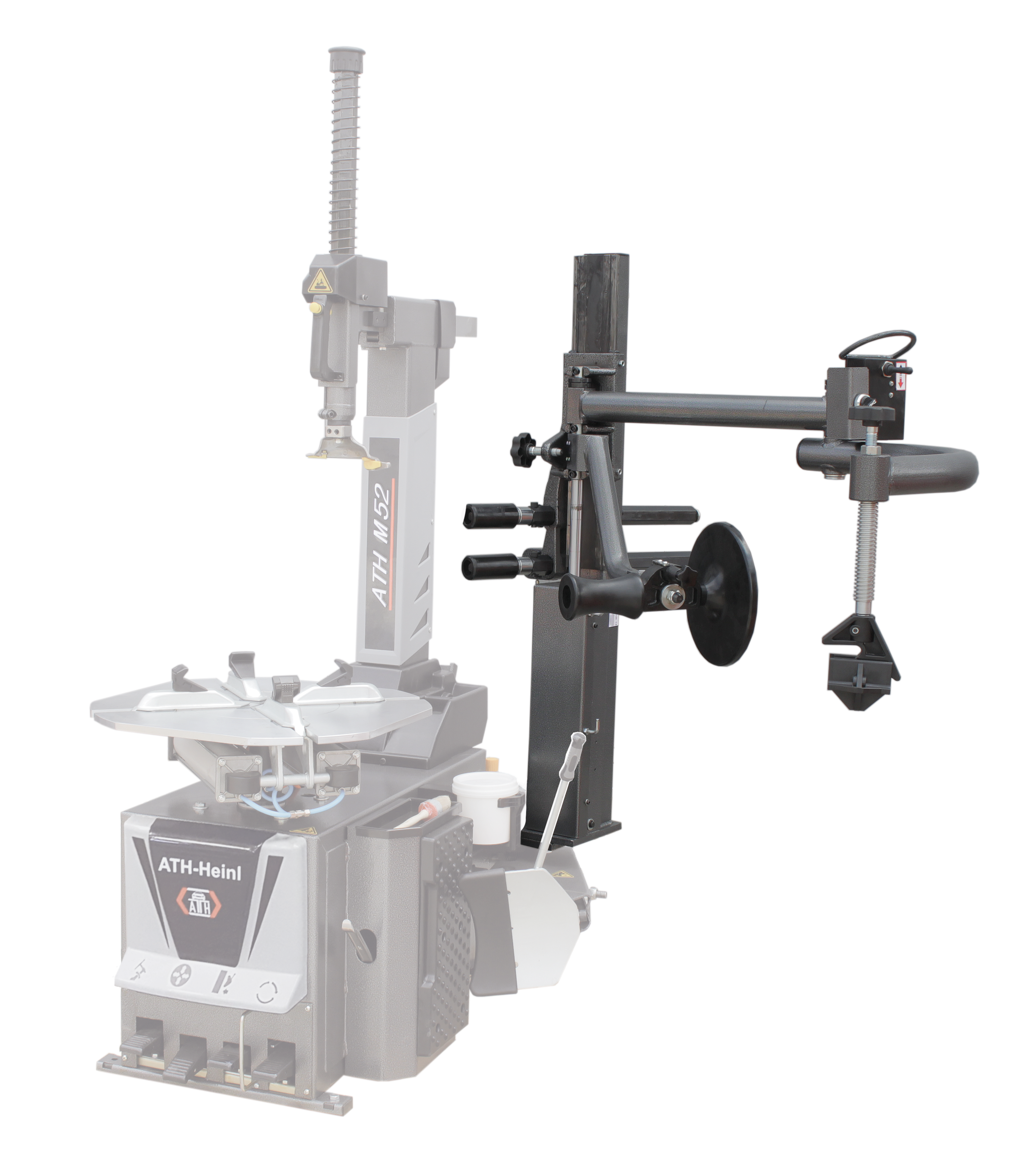

- Including pneumatic controlled auxiliary assembly arm ATH A34 for effortless and damage-free assembly of low profile, UHP and run-flat tires

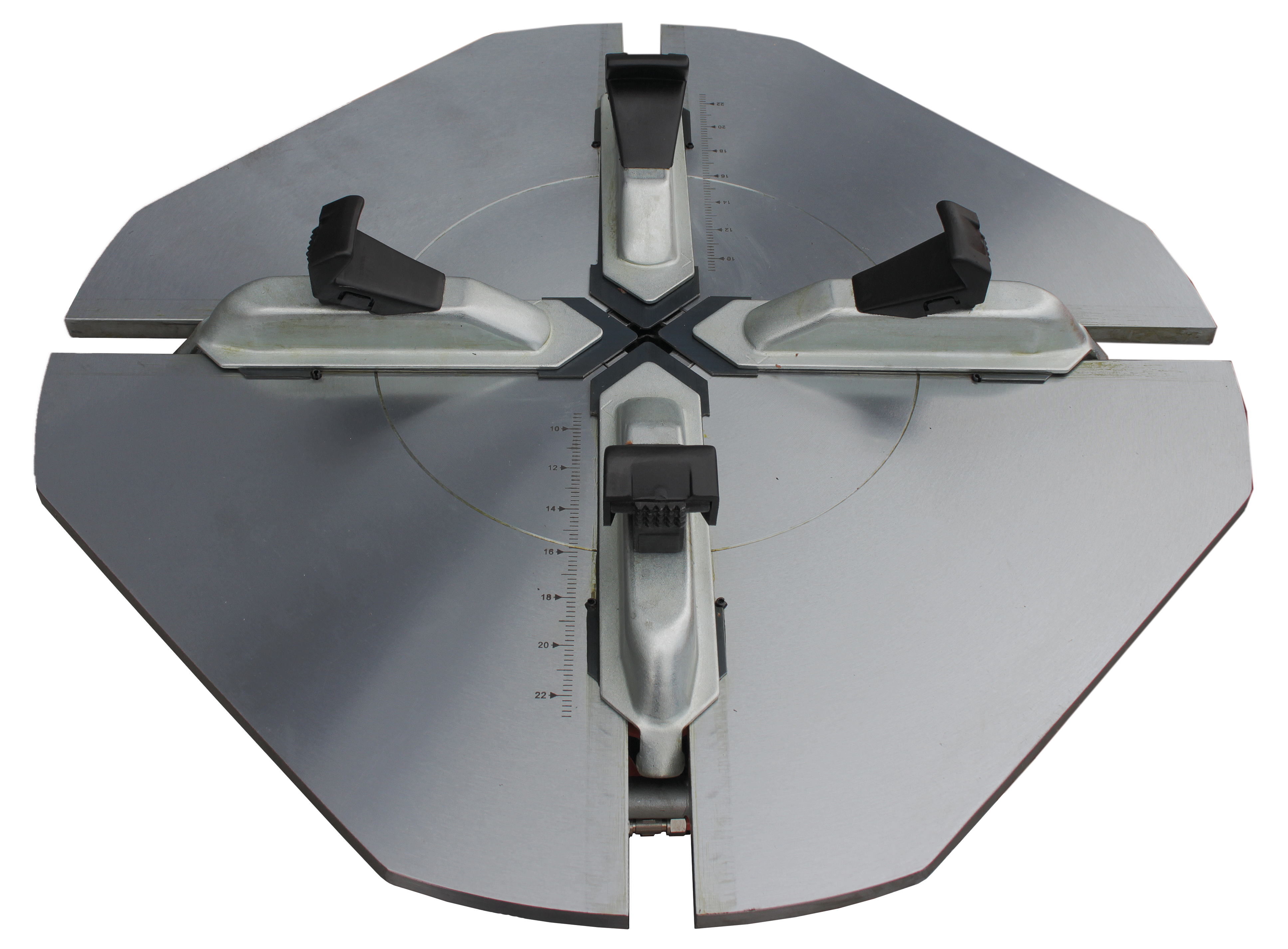

- Self-centering, pre-adjustable 4-jaw system with two double-acting aluminium clamping cylinders; Outside clamping range up to 22 „, additionally adjustable by -2“
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system

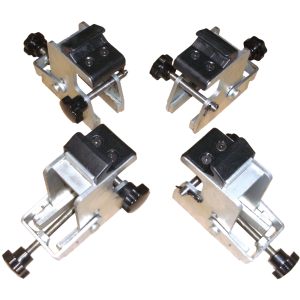

- Ideally suited for car tires, with optional accessories also for motorcycle bikes
| Clamping range inner / outer | 14 – 26 " / 12 – 22 " |
|---|---|
| Rim width | 4 – 13 " |
| Max. wheel diameter | 1.050 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 83 – 350 mm |
| Bead breaker force | 2.500 kg |
| Mounting speeds | 6 and 12 U/min |
| Driving power | 0,75 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 70 dB(A) |
