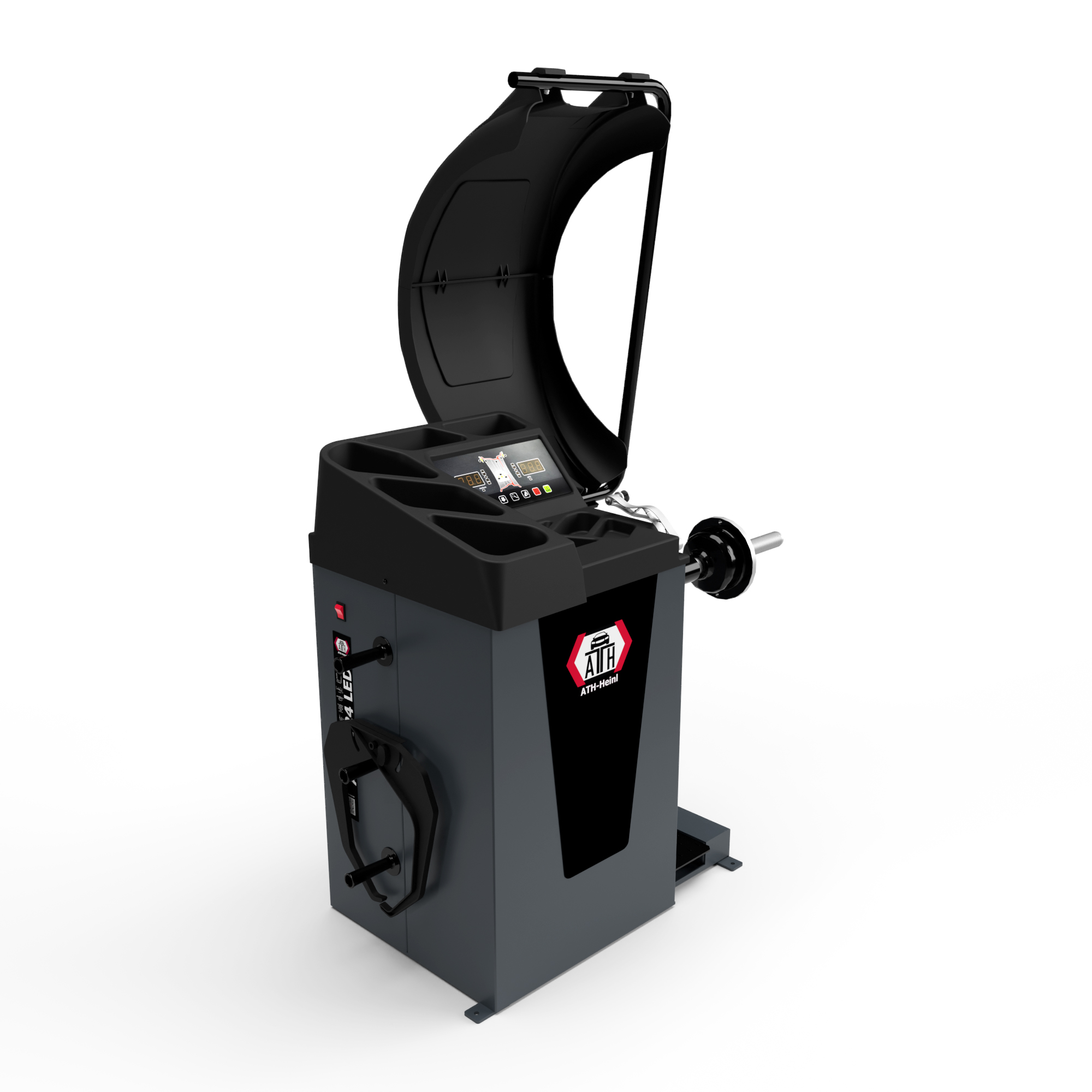

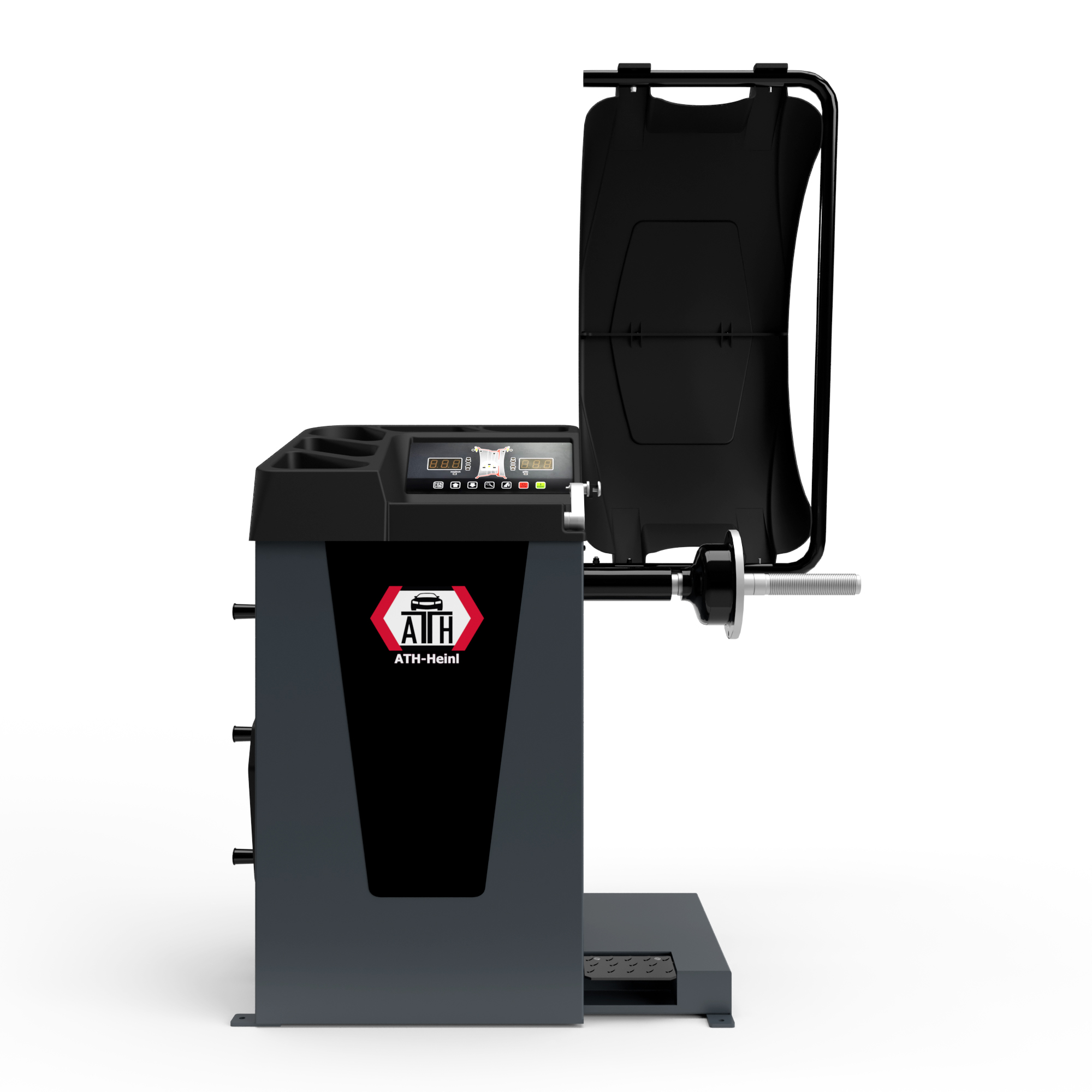

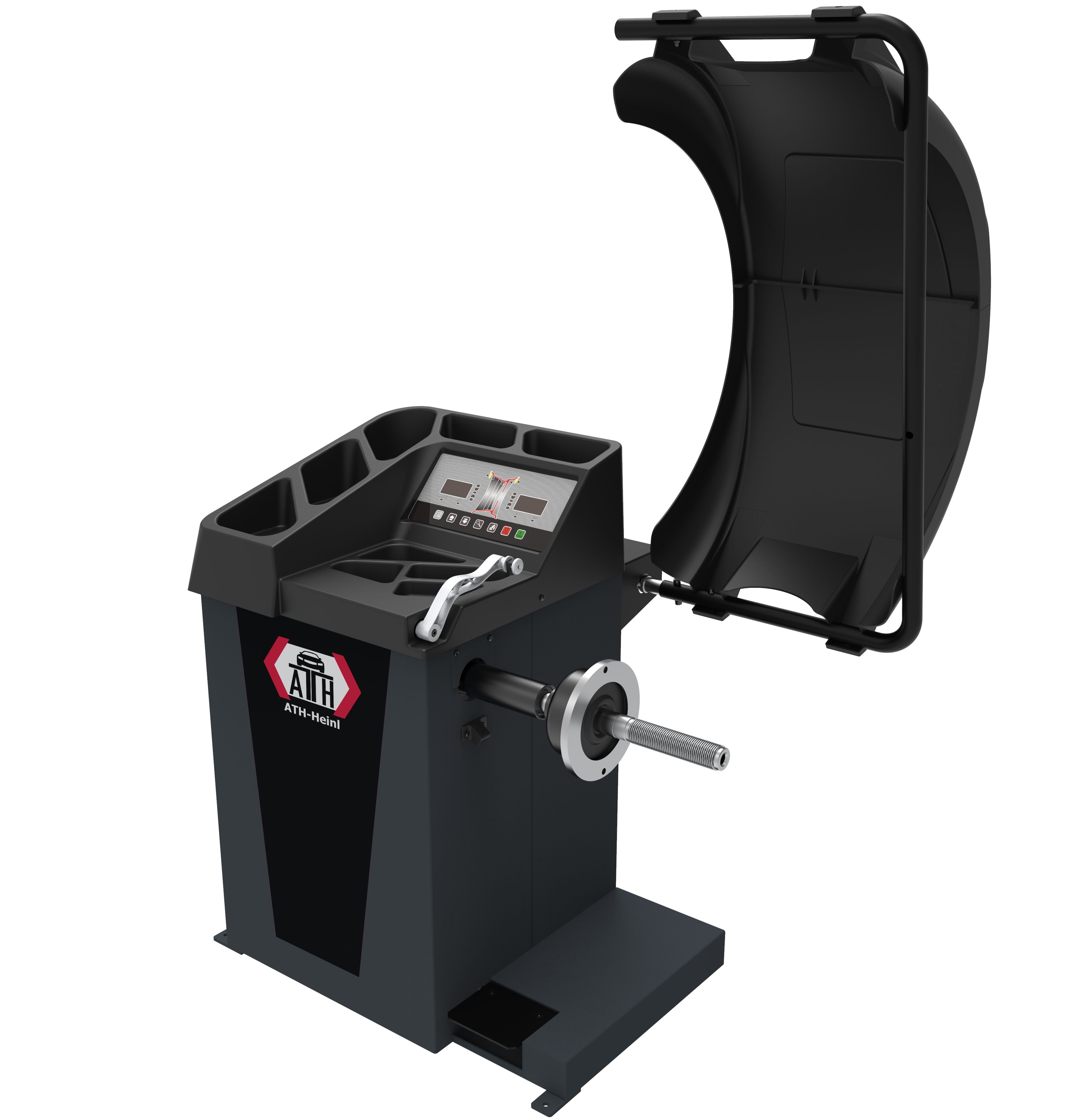

ATH W24 LED 2D
€1,592.44
plus assembly and freight
€1,895.00
Availability:
In stock
SKU
150051
- Microprocessor-controlled balancing machine for car wheels with integrated calibration routine
- 2D function: automatic distance and wheel diameter measurement (manual input of the wheel width)
- Weight position display via the digital LED display
- Program selection between static and dynamic balancing, as well as various ALU programs, ALU weight optimization and rear spoke placement
- Pedal-operated parking brake for easy attachment of the weights
- Integrated laser at 6 o'clock for precise positioning
- Measuring arm made of aluminium with a special adhesive weight holder
- Ideally suited for car wheels, with optional accessories also for motorcycle and light truck wheels
| Center hole diameter rim | 45 – 130 mm |
|---|---|
| Measurement tolerance | ± 1 g |
| Measuring time | 8 s |
| Measuring speed | 200 U/min |
| Rim width | 1,5 – 20 " |
| Rim diameter | 10 – 24 " |
| Max. wheel diameter | 900 mm |
| Wheel weight max. | 65 kg |
| Driving power | 0,20 kW |
| Power supply voltage | 230V / C16A |
