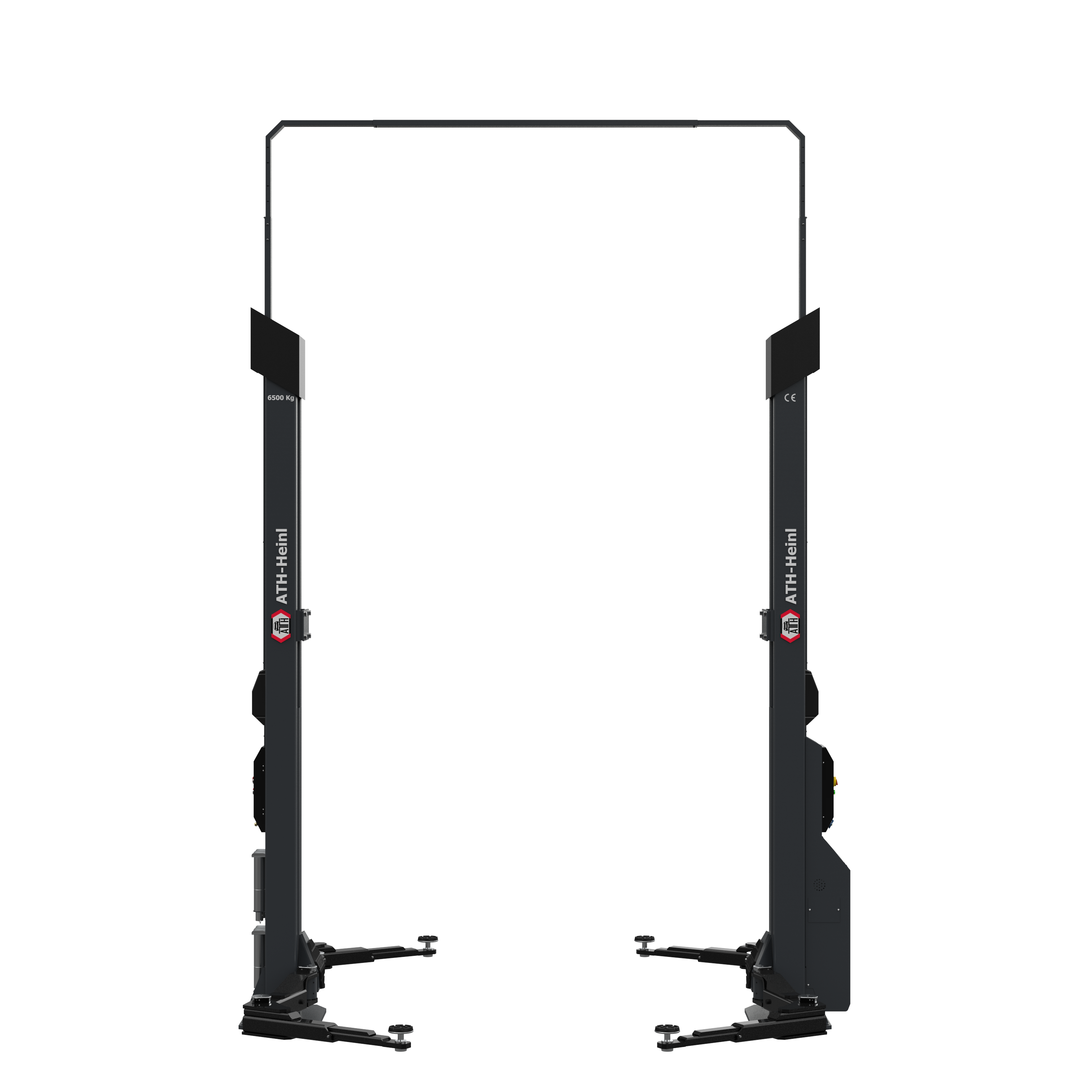

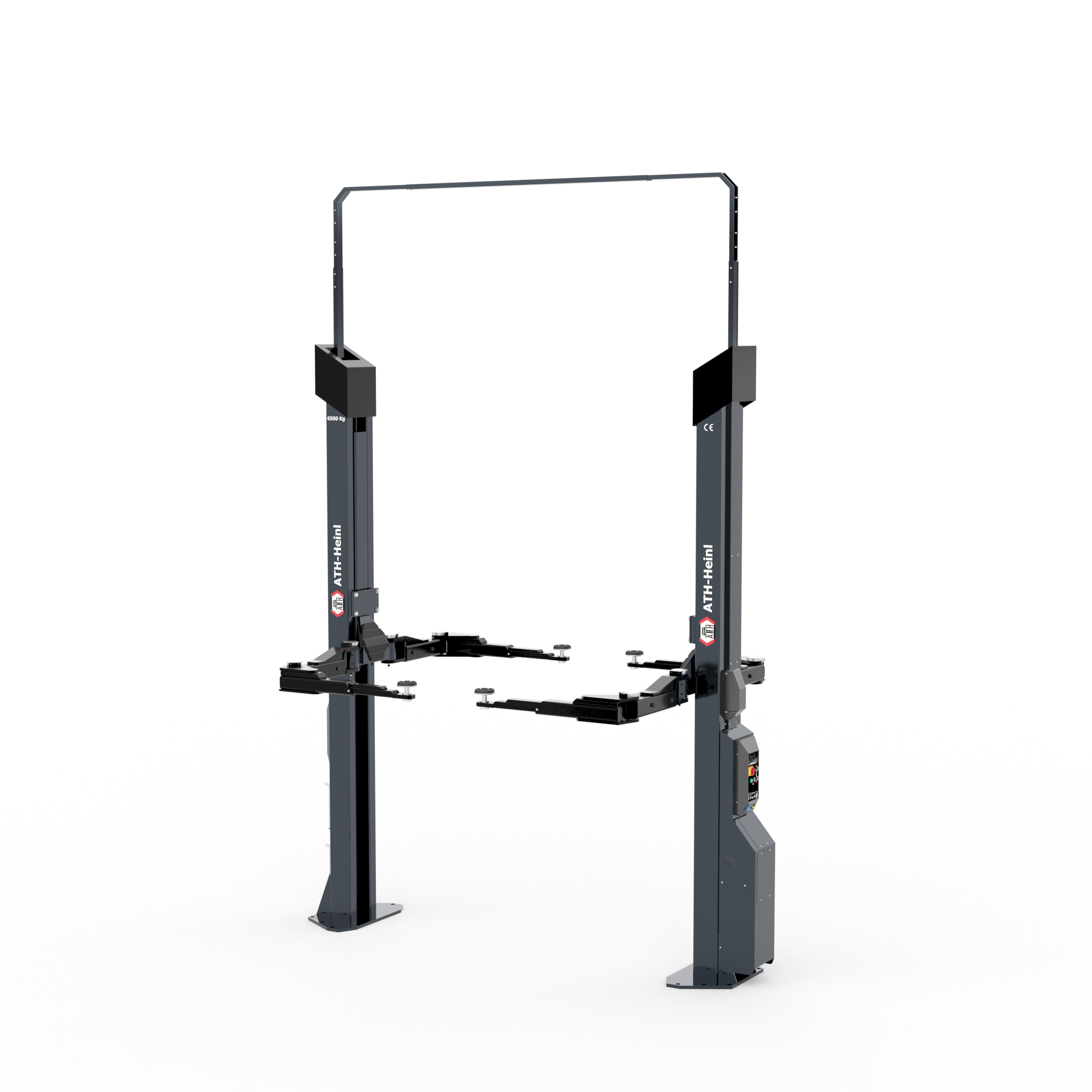

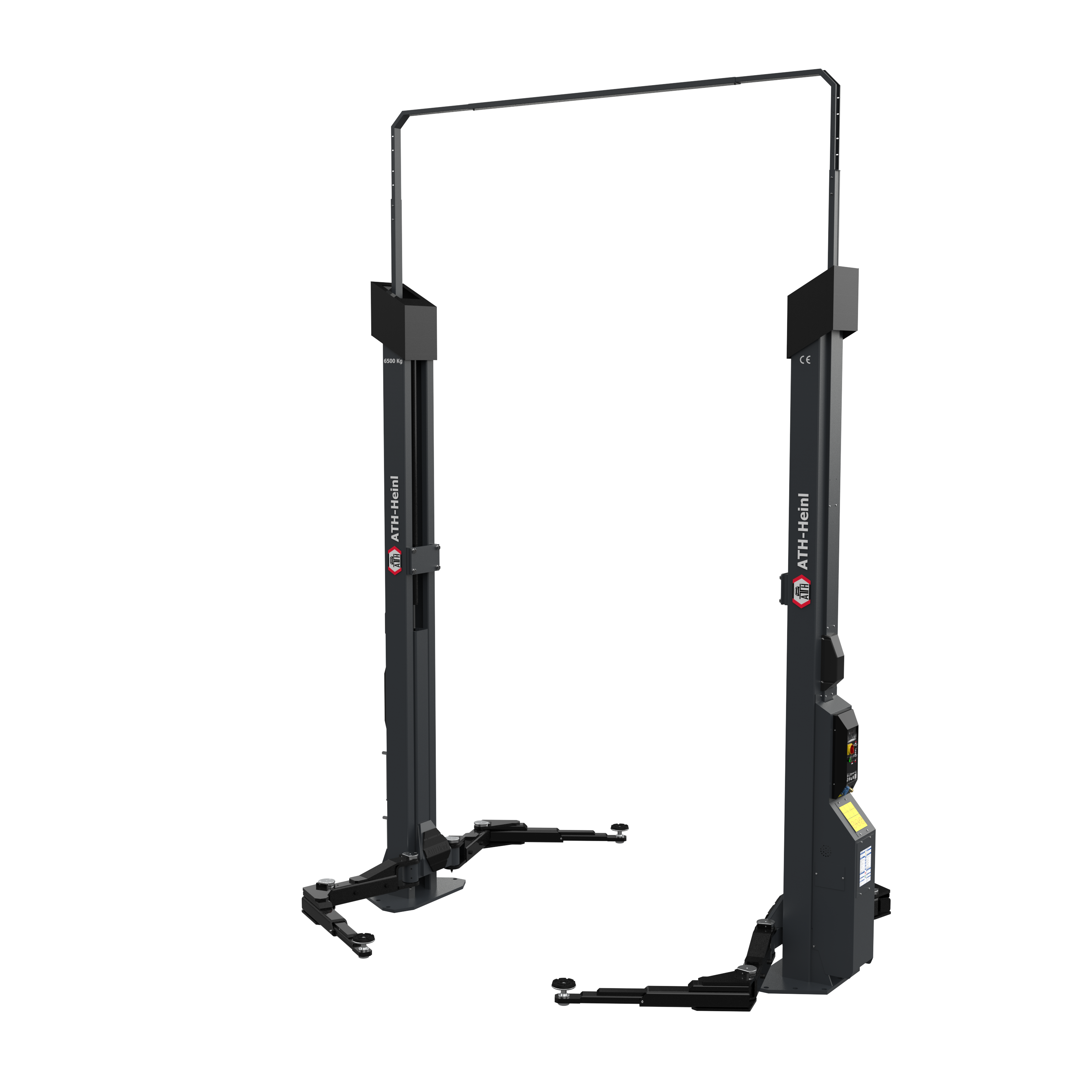

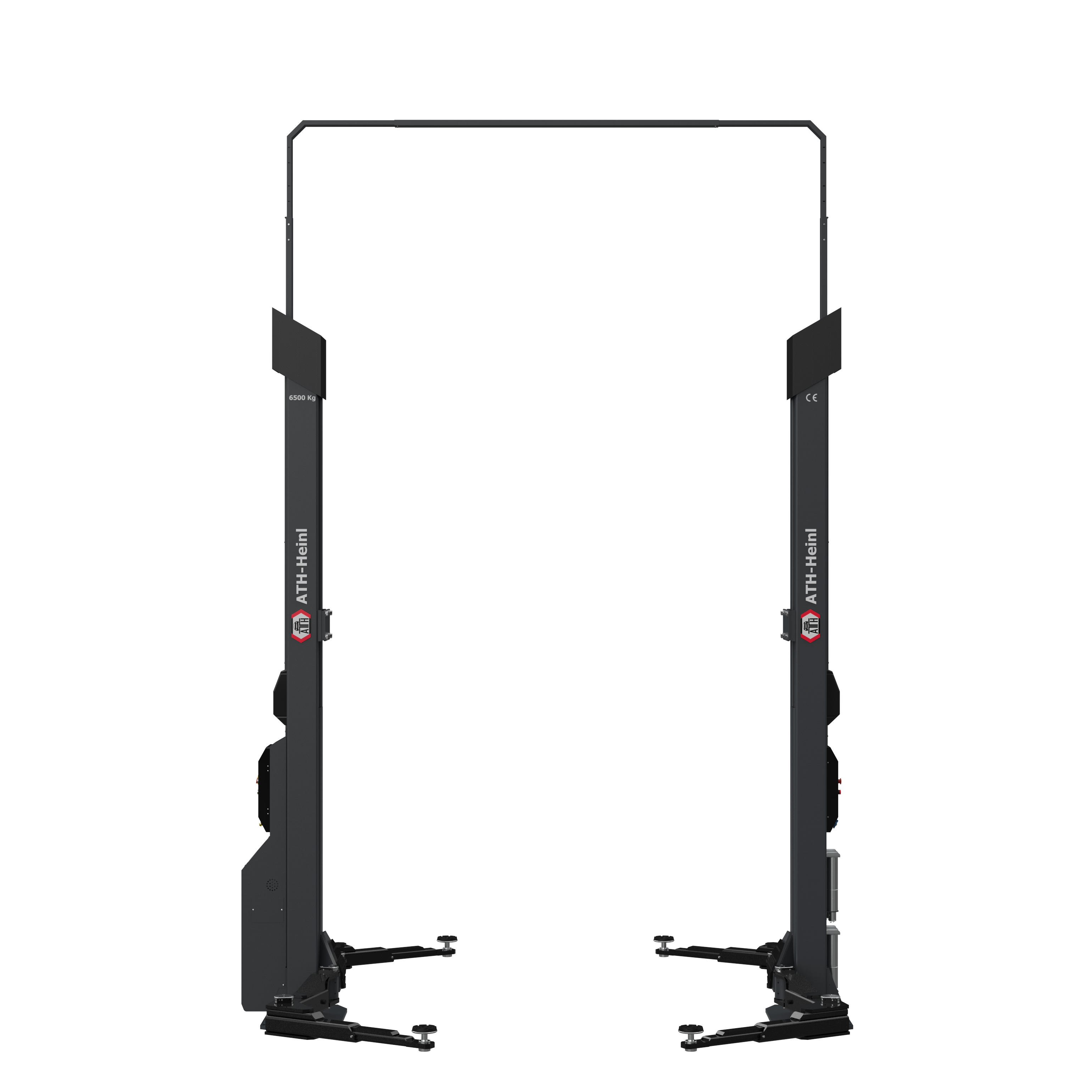

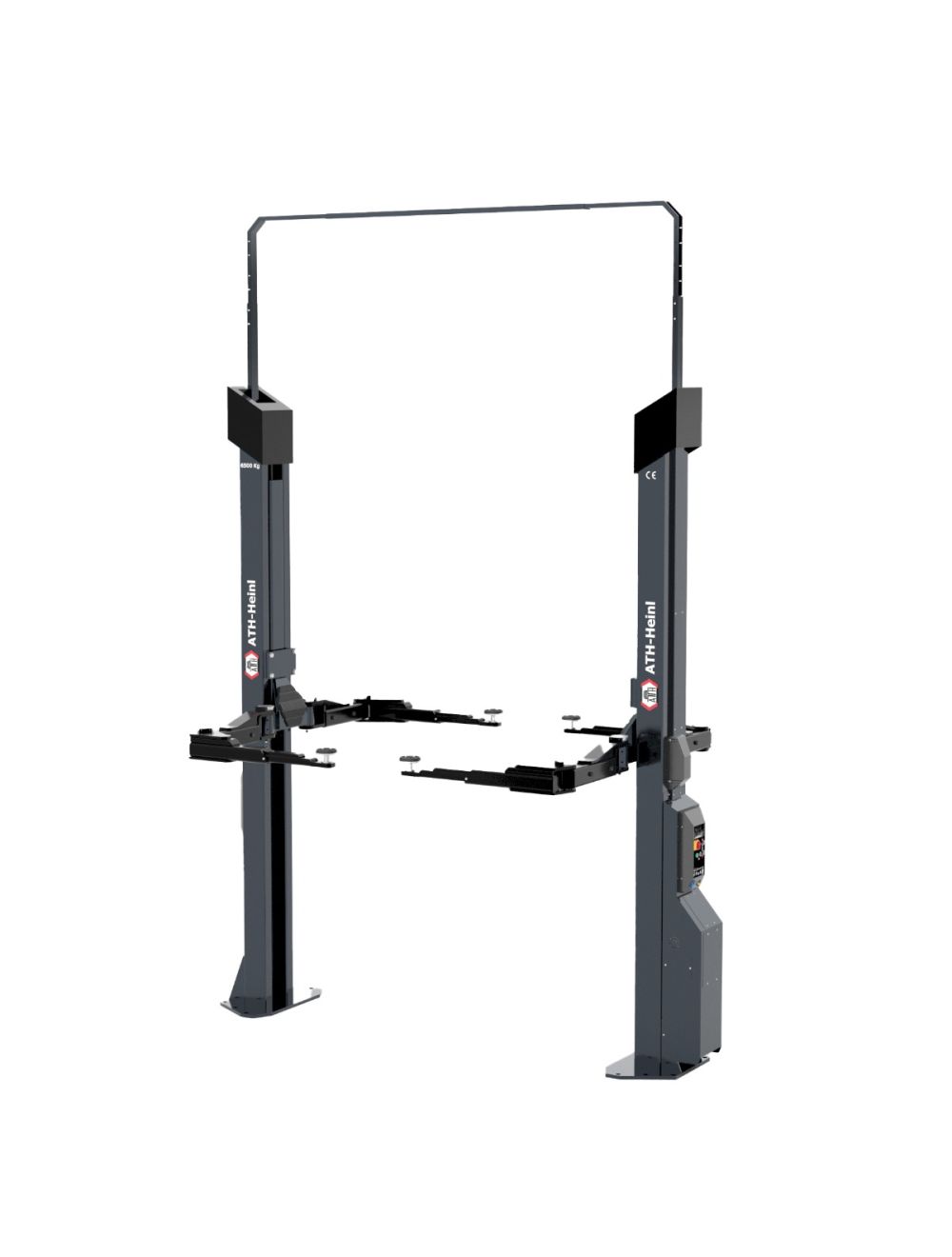

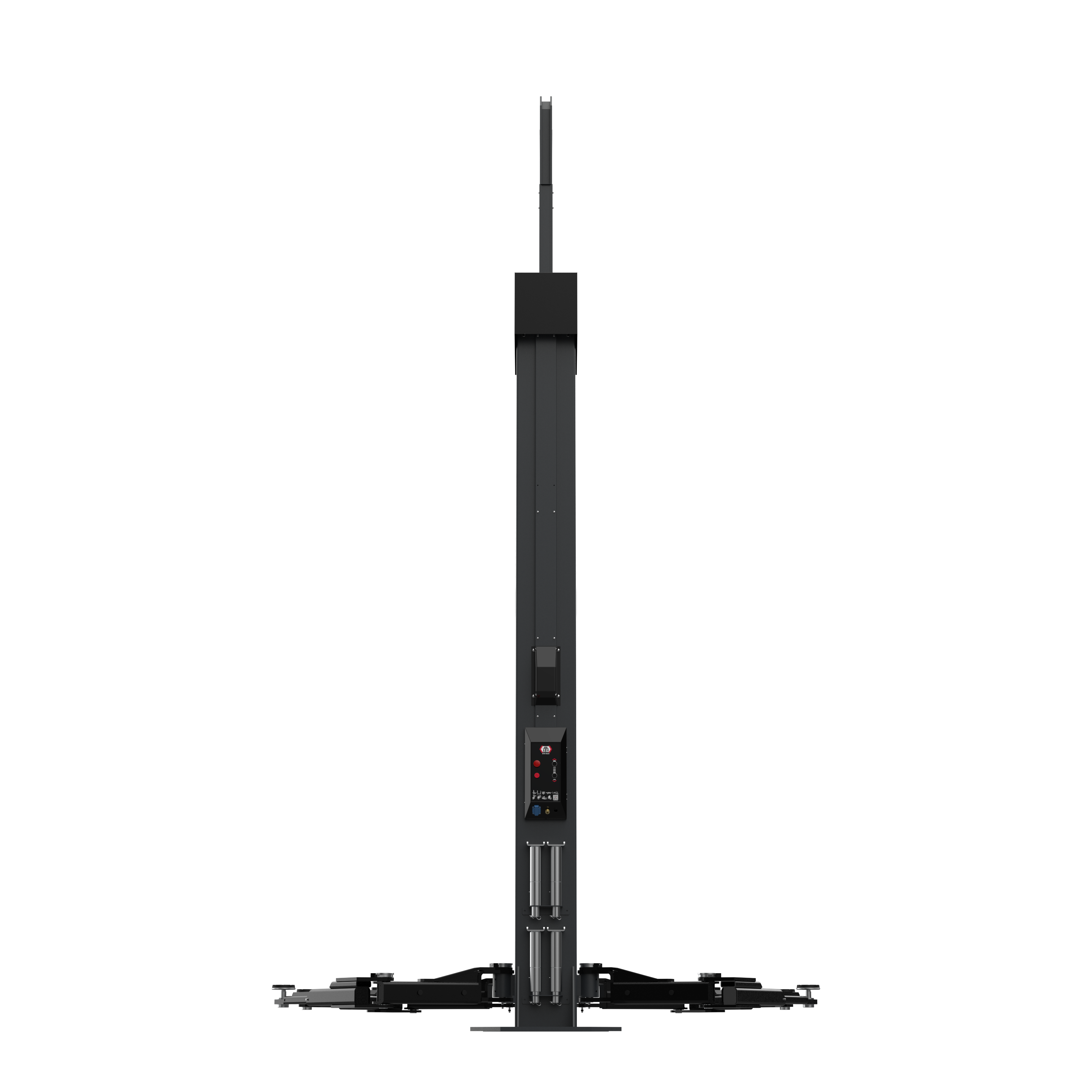

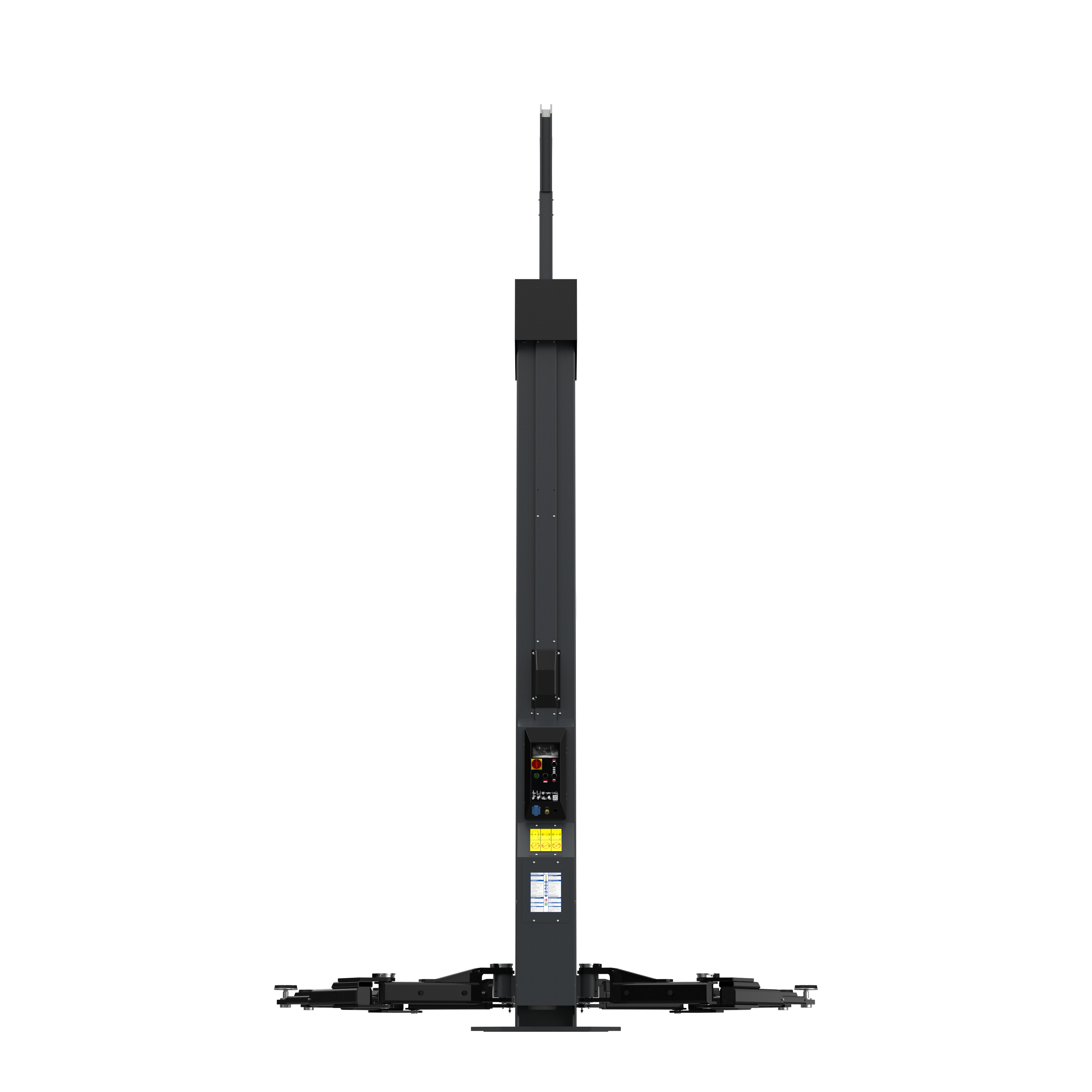

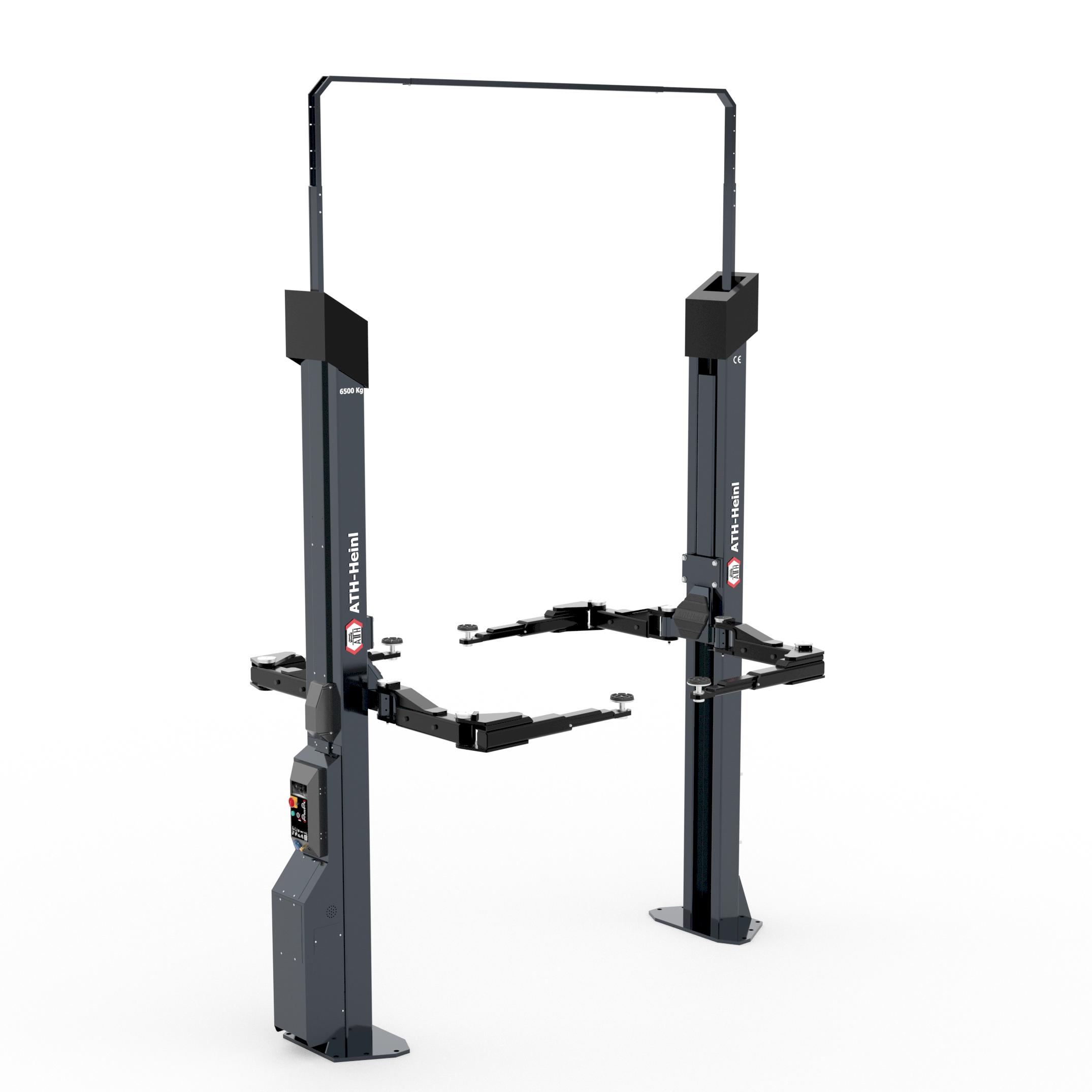

ATH Matrix Lift 2.65
€12,012.61
plus assembly and freight
€14,295.01
Availability:
Out of stock
SKU
622225
- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function.
- Synchro Control: Special hydrosynchronous control for stepless synchronization without suspension ropes
- Safety Control: Electronically monitored synchronization and electromagnetic safety catches
- Safety Lock: Control for lowering the load into the safety catches
- 4-fold roller bearing lift carriage for optimal load transfer
- Multifunctional pick-up via double articulated arms and telescopic carrying plates
(from e.g. Smart to Sprinter/Crafter long wheel bases)
| Rated load capacity | 6.500 kg |
|---|---|
| Lifting height max. | 2.165 mm |
| Drive-through width | 2.768 mm |
| Overall width | 3.920 mm |
| Overall height | 5.850 mm |
| Support arms parts | 3 |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 50 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C25/30 6.000 x 4.000 x 250 mm |
